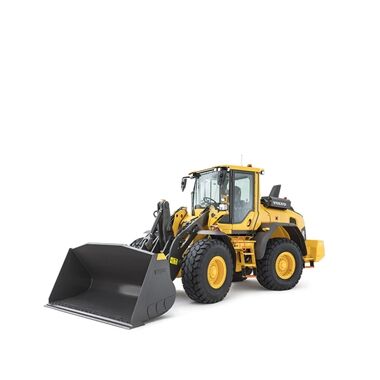

Large Wheel Loaders L90H

2.9 - 9.2 yd³ Bucket capacity
31,968 - 38,140 lbs Operating weight
22,265 lbs Static tipping load at full turn

Drive productivity up and operating costs down with the updated L90H, packed with innovative features. Offering 3% more tipping load and 75 mm (3 in) greater lifting height, the L90H is versatile and fast, with an increased top speed of 50km/h (31 mph) - facilitated by the optional lock-up function.... Read more

Request Machine Information

Download the L90H brochure, with all the details and specifications. (PDF, 965.7KB)

More specifications and competitor comparison

FULLY LOADED FOR EFFICIENT OPERATIONS

Technical specifications for L90H

Here are the key specifications for this product model. Want more details? Download the brochure or contact us.

Static tipping load at full turn	22,265 lbs
Bucket capacity	2.9 - 9.2 yd³
Log grapples	1.6 - 2.9 yd²
Operating weight	31,968 - 38,140 lbs
Breakout force	31,470 lbf
Engine	Volvo D6J
Max power at	1,400 - 1,900 rpm
...ISO 14396 gross	184 hp
...ISO 9249, SAE J1349 net	184 hp
Max torque at	1,400 rpm
...ISO 14396 gross	689 lbf ft
...ISO 9249, SAE J1349 net	689 lbf ft
Tires	20.5R25 600/65R25

Based on machine configuration: 2.7 m³ (3.7 yd³) STE P BOE bucket

Image illustration only. Production machines may differ in appearance and features vary between markets and models.

More specifications and competitor comparison

Download the L90H brochure, with all the details and specifications. (PDF, 965.7KB)

Features & Benefits

Say hello to the latest addition to the H-Series wheel loaders: the upgraded L90H. Built on the established H-Series design, the next-generation machine is the ultimate all-rounder, offering the high quality performance you’d expect from a Volvo wheel loader, plus a host of features that promote greater versatility and stability to handle your workload.

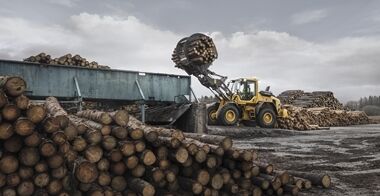

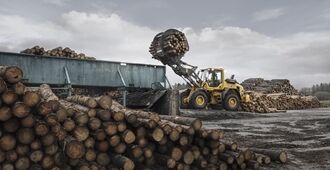

MULTITUDE OF TALENTS

Take on any application with the H-Series wheel loaders, equipped with the Torque Parallel (TP) linkage for ultimate versatility. Not only does the TP linkage offer high breakout and lifting forces, it keeps the attachments parallel throughout the lifting range for exceptional load stability and easy bucket filling. Change tools in a matter of seconds with the Volvo attachment bracket.

Adapt to any application

Get the most out of your machine with a range of purpose-built attachments, including grapples, sweepers, material handling arms, snow ploughs and more. Because different jobs require different attachments, we can custom build a Volvo attachment to match your specific needs. To unlock the use of multiple attachments, simply engage the third and fourth hydraulic functions.

Fully loaded

Whatever the job, we have the tools to get it done. Volvo offers a full range of Volvo buckets, including general purpose, grading, refuse, light material, and more, to handle everything, from light material to heavy rocks. Built on decades of engineering excellence, Volvo buckets are optimized for Volvo wheel loaders and durably designed for all types of materials and tasks.

Made to match

Lift your machine’s versatility to the next level with pallet forks, offering high visibility and the advantage of TP linkage and parallel movement. Ideal for pallet and material handling, Volvo forks are heavy-duty in design, allowing the wheel loader to move effortlessly around different work sites, such as yards, warehouses and harbors.

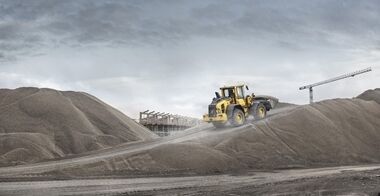

Get the most out of your investment with a cost-effective solution. At Volvo, we’re committed to driving your operating costs down. That’s why we’ve refined the mid-sized H-Series wheel loaders to deliver up to 20% greater fuel efficiency and optimize productivity.

DRIVE DOWN YOUR COSTS

Achieve up to 20% greater fuel efficiency thanks to advanced features, such as Eco pedal and the new optional lock-up function. The lock-up feature eliminates losses in the torque converter by creating a direct drive between the engine and transmission, which work in harmony with the axles. To improve cycle times and fuel use, customize the lock-up engagement of your machine.

Productivity up, fuel down

Cut operating costs and propel your machine’s productivity with rimpull control. With the power to control the rimpull, the operator can reduce tire wear and prevent wheel spin for effective bucket filling. Select the optimum rimpull to match the application and ground conditions, and experience high productivity at low costs.

Work smarter

For the best use of engine power in all applications, rely on Smart Control, designed to optimize fuel efficiency and performance. Standard on the H-Series wheel loaders, Smart Control ensures the correct torque in all situations for perfect harmony between the engine and hydraulics.

Boost your productivity

Ensure a low total cost of ownership with a host of Productivity Services and Fuel Efficiency Services. From training packages, Fuel Reports and consultancy solutions, Volvo has you covered – just speak to your dealer for more information.

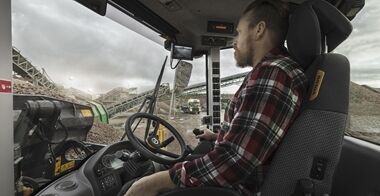

It’s not just the machine that’s ready for any challenge. From the comfort and security of the spacious Volvo cab, the operator is primed for a productive work shift.

COMFORTABLY IN CONTROL

Hard work has never felt so easy from the spacious of the Volvo cab, featuring your choice of comfortable operator seat, as well as ergonomic controls. Perform basic configurations using the information panel, and keep an eye on the operation with the Contronic display.

SAFETY AS STANDARD

Safe from the inside out, the latest loaders feature anti-slip steps and strategically placed handrails for ease of access, plus an array of seatbelt options, such as the orange three-point seatbelt. The new attachment bracket uses a visual indicator to let you know the attachment is locked and ready to use.

SEE MORE, DO MORE

Experience a clear view of the attachment and jobsite thanks to large expanses of glass, redesigned side mirrors, rear-view camera and optional front camera. The machines also feature orange handrails and steps to stand out against the jobsite, and LED lights, available in various packages.

ELECTRO SERVO CONTROL AS STANDARD

The electro servo control comes as standard and enables a range of functions. With the automatic bucket leveling function the operator can automatically return the bucket to level from both dump and curl positions. Return-to-dig feature, end-stroke dampening and the option of max boom height are others. It allows you to set detent functions, bucket and boom positions, from inside the cab. You are also able to adjust the sensitivity of the levers according to your preference: Active, Normal or Soft.

BUCKET LEVELING FUNCTION

Take your productivity to the next level with the bucket leveling function, available when you select the electro hydraulic lever. The new function enhances operator performance by automatically returning the bucket from both dump and curl positions.

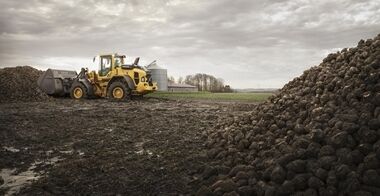

The latest generation Volvo wheel loaders extends their already legendary status by offering an upgraded portfolio of uptime-enhancing features. From simplified serviceability to proactive dealer support, you have access to everything you need to keep your machine up and moving.

Keep your machine moving

Built by Volvo, for Volvo, you can count on the proven design of the latest wheel loaders to meet the demands of tough job sites. Renowned for their reliability, the next-generation H-Series wheel loaders are built with a Lifetime Frame and Structure Warranty, including the front frame, rear frame, articulation joint and loader arms.

Keep it cool

Count on Volvo to keep up. The improved cooling capacity regulates the component temperature, for greater machine utilization when using attachments that are demanding on the hydraulics, and longer hydraulic component life. This, plus the external axle cooling option – ideal for tough applications – doubles the oil change intervals for higher uptime and lower maintenance costs.

Greater access

To keep uptime high, the H-Series wheel loaders are equipped with an engine cover that opens electronically, allowing ground-level access to the service points, including the radiator. For swift and easy cleaning, the new cooler installation now slides out. Safely fill the transmission and engine oil thanks to newly repositioned fill spouts, and get back to work without delay.

Delayed engine shutdown

Reduce the wear on your engine with the new delayed engine shutdown feature. The optional function shuts off the machine when the turbo has cooled down to the ideal temperature. Not only does the feature reduce component wear, it can also be scheduled by the operator to activate automatically for added convenience.

HERE TO SUPPORT YOU

Maintain productivity with our range of Genuine Volvo Parts – all backed by Volvo warranty – with 24-hour parts delivery guaranteed. Maximize machine uptime and reduce repair costs with ActiveCare Direct. The intelligent service from Volvo provides around the clock machine monitoring, as well as customer reports, which suggests ways to optimize efficient machine use and help you take preventative maintenance actions.

Keep your Volvo a Volvo!

Only with Volvo attachments do you get what you wanted when you bought a Volvo in the first place – maximum productivity and uptime. Volvo develops and offers a wide range of attachments which brings you unmatched flexibility and versatility, making it easy for you to develop job opportunities and to get the job done with increased productivity. Displayed attachments may not be available in all markets. Consult your dealer for specific availability.
