Compact Wheel Loaders L35

1.6 yd³ Bucket capacity
13,448 lbs Operating weight
74 hp Engine gross power

The versatile L35 operates reliably in tight spaces and uneven terrains. This compact wheel loader boasts fast simultaneous linkage movements and steering, as well as the tractive/breakout/lifting forces commonly found on larger machines. And the operator experience is second to none, with easy cab... Read more

Request Machine Information

Download the L35 brochure, with all the details and specifications. (PDF, 611.9KB)

More specifications and competitor comparison

Flexibility. Speed. Ease of operation.

Technical specifications for L35

Here are the key specifications for this product model. Want more details? Download the brochure or contact us.

Engine	D3.3H
Engine gross power	74 hp
Bucket capacity	1.6 yd³
Tipping load (ISO/DIS 14397-1)	9,590 lbs
...at full turn	40 degree
Breakout force	13,601 lbf
Hydraulic lifting capacity, max	13,826 lbf
Fork payload 80%	5,732 lbs
Operating weight	13,448 lbs
Maximum travel speed - Standard	12 mph
Maximum travel speed - High speed	19 mph

Based on L35H with cabin, 405/70 R20 tires Z-bar linkage and 1.2 m³ / 1.57 yd³ General purpose bucket and FEMIII forks.

Image illustration only. Production machines may differ in appearance and features vary between markets and models.

More specifications and competitor comparison

Download the L35 brochure, with all the details and specifications. (PDF, 611.9KB)

Features & Benefits

With the highest ground clearance of its class, coming from Volvo’s unique portal axles design, the L35 is especially suited to uneven ground conditions. But that’s not all.

How does it perform on rough terrain?

Built for working in tough conditions, the L35 compact wheel loader also benefits from an articulated and oscillating joint which secures tires-to-ground contact – hence maximum traction. In addition, differential locks can be engaged to ensure that 100% power is distributed to every wheel, reducing tire slippage.

The exclusive electro-hydraulic main control valve enhances the flow sharing among hydraulic functions, enabling simultaneous boom and hydraulic attachment movements with no compromise to the movement of operation.

How smooth is it to operate?

More combined movements are secured via two independent hydraulic pumps which unlock simultaneous lifting and steering with no impact on boom speed. This, together with a compact design easing operation in narrow spaces, results in short work cycles. What is more, the attachment bracket including proportional third/fourth function makes it possible to swiftly connect to a range of hydraulic attachments.

Comfortable access, best-in-class visibility, ergonomic controls and unique options, such as the automatic lift and tilt with boundary limits, make the L35 the ideal choice for operators.

Why does our cab lead the way?

The L35 is designed for operator comfort, starting with its easy cab access, ergonomic arrangement of controls and unrivalled view over the jobsite. Functions are easily set from the 5” display, including the automatic lift & tilt with boundary limits, and lift & tilt speed limiter, which are unique options in this size class. These combine to complete the work fast and with less fatigue.

Small but tough, the L35 delivers the tractive, breakout and lifting forces more commonly found on larger loaders.

How powerful is it?

The L35 is built to lift high loads in tight corners. It features a powerful linkage as well as superior rollback/dump angles to ensure excellent material retention and quick unloading.

Through long service intervals, machine conditions checked from the comfort of the cab, serviceability and connectivity, the L35 is designed to keep moving and minimize maintenance requirements.

What about uptime?

Reduce time and money spent on maintenance with the L35. Machine conditions such as coolant/hydraulic temperature and engine/fan speed are all monitored from the in-cab display, and a range of telematic-based solutions can also help reduce unplanned downtime. The compact loader benefits from long service intervals and, when the time comes, service points are easily accessible from ground level.

Meet the enhanced Volvo L30 and L35 compact wheel loaders.

Better, Faster, Easier

Meet the enhanced Volvo L30 and L35 compact wheel loaders.

Keep your Volvo a Volvo!

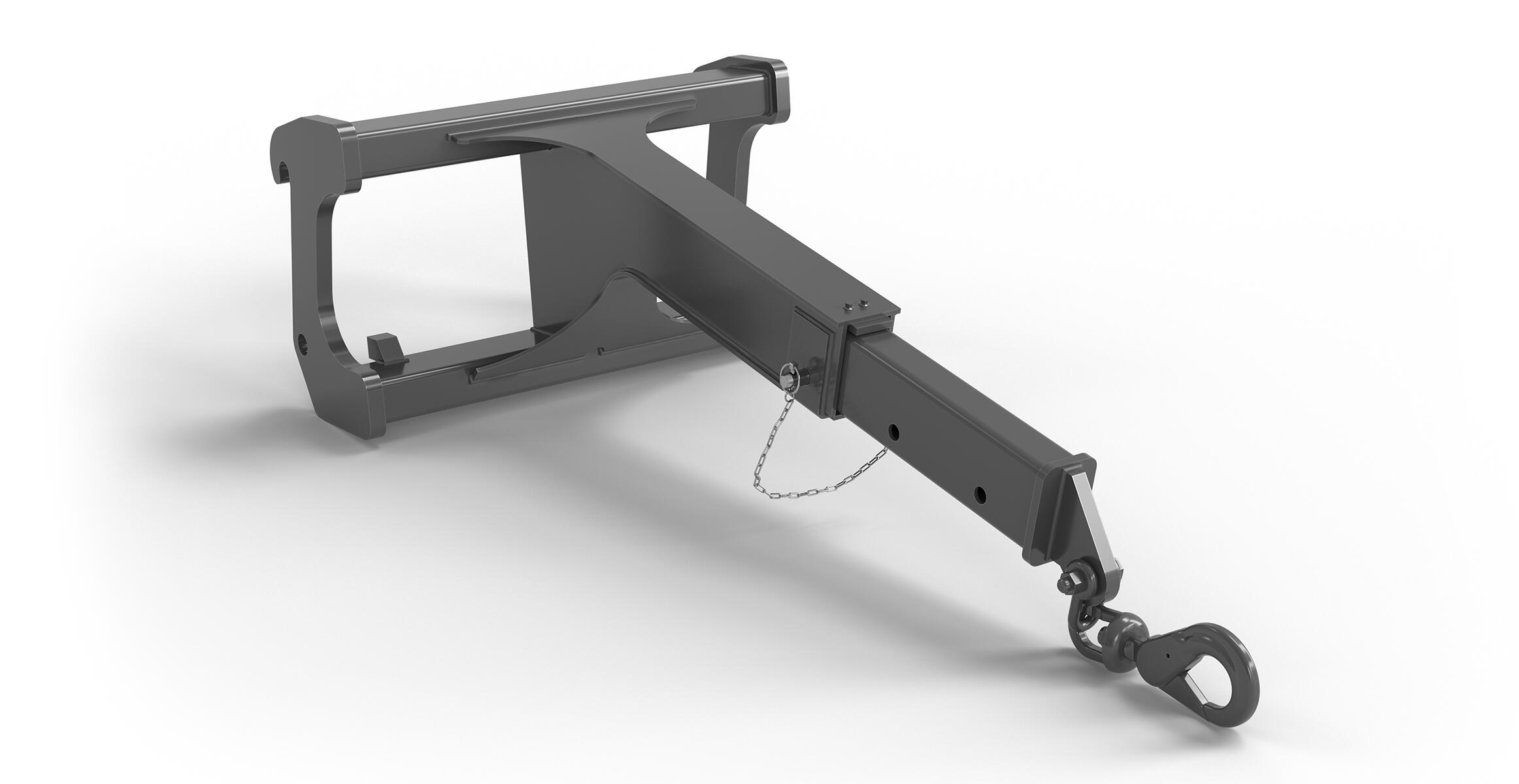

Only with Volvo attachments do you get what you wanted when you bought a Volvo in the first place – maximum productivity and uptime. Volvo develops and offers a wide range of attachments which brings you unmatched flexibility and versatility, making it easy for you to develop job opportunities and to get the job done with increased productivity. Displayed attachments may not be available in all markets. Consult your dealer for specific availability.
