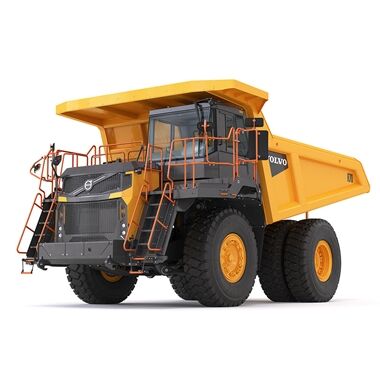

R70 | Rigid Haulers | Overview | Volvo Construction Equipment

Payload capacity	72 sh tn
Body volume, SAE 2:1 heap	55.57 yd³
Net weight	102,788 lbs
Gross weight	246,088 lbs
Engine	CumminsQSK 19, CAC, (EPA Tier4 f)
Gross power	760 hp
...at engine speed	2,100 rpm
Max SAE J1349 gross torque	2,275 lbf ft
...at engine speed	2,275 rpm
Max speed	37.6 mph

Features & Benefits

Meet your production targets faster in the R70, combining an effective body design, class-leading tractive force and productivity-enhancing solutions.

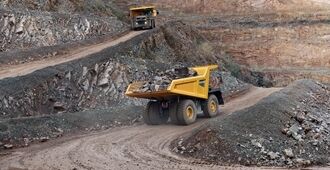

Fast cycle times

Effortlessly take on steep gradients thanks to the drivetrain with high torque capabilities and high drive axle multiplication, delivering impressive tractive force and high levels of rimpull.

High capacity V-shaped body

Move more with every cycle in the high-capacity V-shaped body, which ensures optimal load retention and minimal material carry-back – further enhanced with the exhaust-heated option. For long lasting performance, the body is manufactured from high impact and high abrasion resistant steel.

On-board weighing

Make sure you haul the optimum amount of material with the optional On-Board Weighing system, providing real-time payload insight via the on-board display. The system helps to eliminate both underloading for peak productivity, and overloading for reduced fuel consumption and machine wear. It also assists operators in employing the 10-10-20 payload profile policy (please ask your local dealer for more detailed information).

Matched loading units

The R70 rigid hauler is a perfect match to the EC950F crawler excavator and L350H wheel loader, helping to optimize fleet use. With the additional support of Volvo Site Simulation, your Volvo dealer can work with you to advise on the optimum fleet configuration and site set-up for your operation.

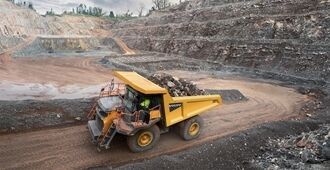

Move more using less fuel in the R70 rigid hauler, featuring Volvo Dynamic Shift Control, Eco mode and automatic engine idle shut down.

Fuel efficiency

Keep fuel costs to a minimum in this Volvo Rigid Hauler, designed for high fuel efficiency. With Volvo Dynamic Shift Control the gear selection automatically adapts to varying conditions, and with Eco mode the hauler will default to the most efficient gear shifting schedule. Auto engine idle shut down eliminates unnecessary fuel consumption and engine wear.

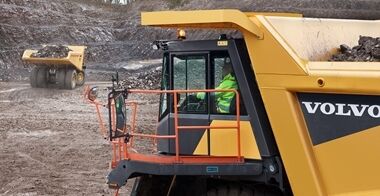

Boasting outstanding levels of visibility and controllability, the R70 is a haven for operator comfort and safety.

Safe and sound

Operators benefit from unrivalled visibility in cab. The left-positioned operator station provides an unobstructed view of the surrounding area and aids safe passing, while forward visibility is enhanced by the large windscreen and low raked dashboard. Take visibility to new heights with the optional Volvo Smart View, giving operators a 360° bird’s-eye-view of the work zone.

Comfortably productive

A host of comfort enhancing features including climate control, ergonomically positioned displays, responsive fingertip controls and adjustable air-suspended seat and steering wheel combine to keep operators working at their best. With the Bluetooth enabled audio system operators can choose the soundtrack to their working day.

Smooth ride

Enjoy superior ride quality in the robust Volvo Rigid Hauler, equipped with responsive MacPherson strut with lower wishbone connection and viscous-mounted cab, minimizing the transfer of impact and vibrations from the ground to the operator. The responsive low-effort steering system and geometry, combined with the suspension, optimizes maneuverability by minimizing lean on tight corners.

Downhill control

The R70 rigid hauler features two standard retardation systems for enhanced downhill machine control. The transmission retarder limits wheel lock-up while the modulating rear brake retarder, with automatic apply function, helps to maintain a controlled engine speed. Other protective features include transmission overspeed protection, neutral coast inhibitor, fail-safe braking and secondary steering systems

Straightforward access

Whether operating or servicing your R70 rigid dumper, gain straightforward machine access. Enter the ROPS/FOPS certified cab from both sides using anti-slip steps and secure walkways. Complete essential planned maintenance from the wide platform or ground level.

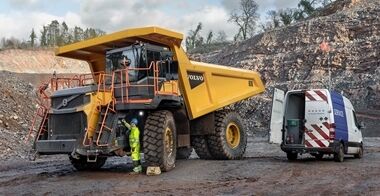

The strong R70 performs dependably in tough job site conditions and offers swift maintenance to get you back to work fast.

Cut downtime

All service points are conveniently grouped and within easy reach from the ground level or wide platform, helping to keep uptime to a maximum. To simplify mechanical servicing, the hauler features common-sized bearings. Inside the cab, access top-level diagnostic data using the operator-friendly dashboard for fast analysis and solutions.

Long life components

Offering a low center of gravity and even weight distribution, the R70 rigid hauler provides rock-solid stability, spreading the load impacts and structural stresses equally across the truck. The outcome is superb machine and tire longevity leading to significantly reduced operating costs.

500 HR service intervals & remote monitoring

Keep working without interruption in the heavy-duty R70 rigid hauler, thanks to 500hr service intervals. Maximize machine uptime and reduce repair costs with CareTrack: the optional telematics connection enables to remotely monitor the health of your fleet.
