Compact Excavators ECR58

12,875 lbs Operating weight
48 hp Gross power
0.15 yd³ Bucket capacity

Request Machine Information

Download the ECR58 brochure, with all the details and specifications. (PDF, 2.7MB)

More specifications and competitor comparison

Comfort and performance

The F-generation ECR58 has been expertly designed to provide outstanding levels of operator comfort and delivers the performance to match. Superior stability, breakout force, tear out force and lifting capabilities result in fast cycle times, even when taking on the toughest tasks. Highly customizable auxiliary hydraulic settings support quick and easy attachment changes, helping you achieve top results across a wide range of applications.

Technical specifications for ECR58

Here are the key specifications for this product model. Want more details? Download the brochure or contact us.

Product technical designation	ECR58F
Engine	Volvo D2.6H
Gross power	48 hp
Net power	48 hp
…at engine speed	2,200 rpm
Operating weight	12,875 lbs
Bucket capacity	0.15 yd³
Travel speed, low / high	1.6 / 2.8 mph
Slewing speed	8.7 rpm
Breakout force	9,422 lbf
Tear out force (arm breakout force)	6,387.3 lbf
Overall width	6′ 7.0″ ft in
Overall length	17′ 0″ ft in
Main hydraulic pump max. flow	37.8 gal/min
Boom swing angle, left / right	75 / 55 degree

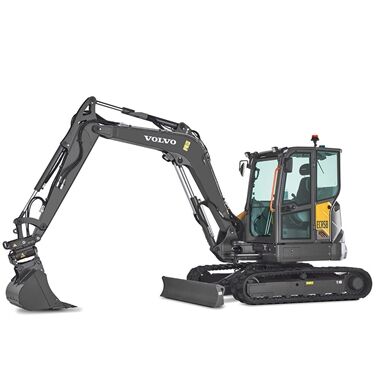

Image illustration only. Production machines may differ in appearance and features vary between markets and models.

More specifications and competitor comparison

Download the ECR58 brochure, with all the details and specifications. (PDF, 2.7MB)

Features & Benefits

The new 6-tonne F-generation ECR58 has been expertly designed with the operator in mind. With unrivalled comfort, operators can work more efficiently and with less fatigue. The compact excavator is complemented by a range of Volvo services to support you throughout the lifetime of the machine, including machine monitoring, uptime services and dealer support.

The industry’s best cab

Step inside the most spacious cab in the industry. Designed to offer the highest levels of operator convenience, the Volvo cab features efficient soundproofing, updated ergonomic controls, numerous storage areas and 12V and USB ports. The multi-adjustable seat and console, both mounted on the same suspension, provide excellent shock and vibration absorption. A fully opening front window and slide side window further add to comfort and visibility.

Precision controls

Whether for fast bulk digging or precise levelling, the ECR58’s new hydraulic system provides superb combined operations. Operate hydraulic attachments with precision thanks to the proportional fingertip controls. The automotive style jogwheel and 5” color display enable intuitive navigation through the menus for further fine tuning, allowing the ECR58 to be adapted to any job requirement.

Profit boosting technology

A number of intelligent features combine to deliver outstanding fuel efficiency, including the advanced hydraulic system with load sensing and flow sharing. ECO mode further reduces fuel consumption by up to 10% and auto idle eliminates unnecessary fuel consumption. With auto engine shutdown, hours which are not worked are not recorded, reducing maintenance costs while contributing to a higher resale value.

Machine monitoring made easy

With CareTrack, the Volvo telematics system, you can remotely monitor the status of your machine, including engine, fuel efficiency, important safety information and machine health. Spread service costs and keep your machine in top condition with a repair and maintenance agreement.

Here to support you

Volvo is here to support you with a range of services including financial services and readily available Genuine Volvo Parts – the best choice for your Volvo machine. Speak to your local dealer to find out more about the range of services they can offer to help your business succeed.

Unlock the full potential of your short swing radius excavator and take on a variety of applications with Volvo’s comprehensive range of matched attachments. Increase your versatility and experience new levels of productivity across a wide range of tasks.

Top of the class

Superior stability, breakout force, tear out force and lifting capacity make the F-generation ECR58 a top performer in its class. Experience fast cycle times, even when taking on tough applications and heavy loads. High system pressure delivers impressive tractive force when climbing gradients or traveling over rough terrain.

Take on more

Quickly switch between attachments and take on a variety of tasks in the F-generation ECR58, thanks to preset adjustments in the new 5“ display. Hydraulic flow settings are easily customizable, ensuring optimum performance for the attachment you are working with.

Tiltrotator

Steelwrist® Tiltrotators combine flexibility and precision with a compact size and low weight. For total convenience, settings are easily adjusted from the display and the tiltrotator is controlled from the machine joysticks with three rollers. Fully supported by Volvo parts and warranty, the tiltrotator control system is delivered from Volvo factories.

Tilt quick coupler

The ultimate in coupling flexibility with a tilting angle of up to 2 x 90°. The Tilt Quick Coupler connects to dedicated auxiliary lines and enables quick and easy switching between attachments. The compact design of the quick coupler, including minimal height and length, helps to achieve an outstanding digging performance.

Hydraulic thumb

The hydraulic thumb from Volvo is designed to work with both Volvo direct fit buckets and quick coupler. It can be used to work with various materials across a range of tasks, including piling, placing, loading, lifting and carrying.

Keep your Volvo a Volvo!

Only with Volvo attachments do you get what you wanted when you bought a Volvo in the first place – maximum productivity and uptime. Volvo develops and offers a wide range of attachments which brings you unmatched flexibility and versatility, making it easy for you to develop job opportunities and to get the job done with increased productivity. Displayed attachments may not be available in all markets. Consult your dealer for specific availability.
