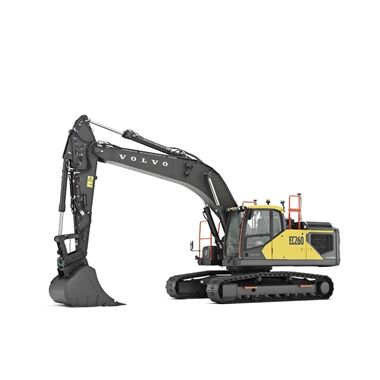

Large Crawler Excavators EC260 Hybrid

62,744 - 75,663 lbs Operating weight
225 hp Gross power
0.6 - 2.3 yd³ Bucket capacity

Request Machine Information

Modern comforts give you an edge

This uncomplicated and reliable hybrid solution is easy to maintain and consists of just a handful of add-on components, meaning no extra disruptions or complications. Whether general construction, trenching, or even quarrying – the EC260 Hybrid is a versatile machine built for hard work across a wide range of applications. It reduces CO₂ emissions by up to 15% making it a more environmentally respectful choice, especially when working in built-up areas.

Technical specifications for EC260 Hybrid

Here are the key specifications for this product model. Want more details? Download the brochure or contact us.

Operating weight	62,744 - 75,663 lbs
Gross power	225 hp
Engine speed at max engine torque	1,350 rpm
Bucket capacity	0.6 - 2.3 yd³
Lifting capacity, along undercarriage	19,840 lbs
...at reach / height	15 ft
Max. digging reach	32'8" ft in
Max. digging depth	21'7" ft in
Breakout force, SAE J1179 (Normal)	32,600 lbf
Breakout force, SAE J1179 (Boost)	35,290 lbf
Tear out force, SAE J1179 (Normal)	29,670 lbf
Tear out force, SAE J1179 (Boost)	32,150 lbf
Overall width	10'1" ft in
Tail swing radius	10'3" ft in

Image illustration only. Production machines may differ in appearance and features vary between markets and models.

Features & Benefits

What makes a hybrid different from a regular excavator? Read here to find out.

How does it work?

What makes a hybrid different from a regular excavator? Read here to find out.

Hybrid is the perfect combination

The Volvo hybrid crawler excavator combines pioneering Volvo hydraulic hybrid technology and your sustainability efforts into an efficient machine and environmental care. You will save fuel and reduce your emissions while not lose out in productivity- quite the contrary. With the fuel savings our hybrids offer, both you and the environment come out on top.

How does it work?

Featuring unique hydraulic hybrid Volvo technology, the excavator stores the boom down motion energy into the accumulator. The stored energy is regenerated to support Pump driving through the assist motor, which in turn powers the engine system. The result is up to 17% increase in fuel efficiency through digging and dumping operation on earth level while delivering all the power and performance you would expect from a conventional excavator.

Up to the challenge

Built to deliver outstanding strength and durability, this heavy-duty production machine features a robust undercarriage with reinforced idle frame, track links and bottom rollers. Reinforced bucket linkage with steel strip, optional heavy-duty superstructure undercover and easily replaced bolt-on wear plates at the arm end ensure the excavator succeeds even on the toughest of jobsites.

Top three arguments for choosing a Volvo hybrid excavator.

Why choose a hybrid?

Top three arguments for choosing a Volvo hybrid excavator.

Attract highly skilled operators

Volvo hybrid excavators are not only a quality product in the robust build and engine-wise but also when it comes to operator comfort. Hiring highly skilled operators will be easier when you have quality products. These operators can afford to be picky about what machine they work with, so make sure you are an attractive employer by choosing a Volvo hybrid.

Easier maintenance

The new electro-hydraulic system requires less hoses, therefore reducing the need for couplings, minimizing maintenance requirements and increasing reliability. Engine oil and filter change intervals have been doubled to 1000 hours, keeping time and cost spent on maintenance to a minimum.

Dig at any angle

Boost productivity and dig at any angle. Compatibility with Steelwrist®, Engcon® and Rototilt® tiltrotators provides the flexibility needed for precise construction jobs. The factory-fitted preparation system gives you the power to control both the excavator and tiltrotator using the original joysticks, with the information presented on the main display.

Our hybrids are easier to service now then ever before. Read here how we are helping you to achieve more up-time.

Service-friendly hybrids

Nothing is better for reducing downtime than no downtime at all. Volvo excavators boast some of the longest service intervals in the industry, with 1000-hour engine oil, hydraulic oil and fuel filter changes to mention a few. More synchronized service intervals further increase uptime and reduce costs.

Easier inspection

The swing out condenser makes the radiator and oil cooler easier to inspect, as well as easier refill of the air-con system when needed.

Fluid Analysis

Fluid Analysis can be an important contributor to monitoring the health and performance of your machines and this optional feature provides an environmentally safe method to collect small oil samples via a vacuum pump.

Oil drainage

For simple and environmentally friendly fluid draining, engine oil and hydraulic oil can be drained from the quick drain port using a common hose connection. Optional fast filling systems are available for hydraulic oil and engine oil (market dependent).

Shut-off valve

A convenient shut-off valve when changing fuel filters prevents oil leakage, helping to keep technicians and the environment cleaner. An optional ground-level quick oil change access port further supports cleaner and safer oil changes.
