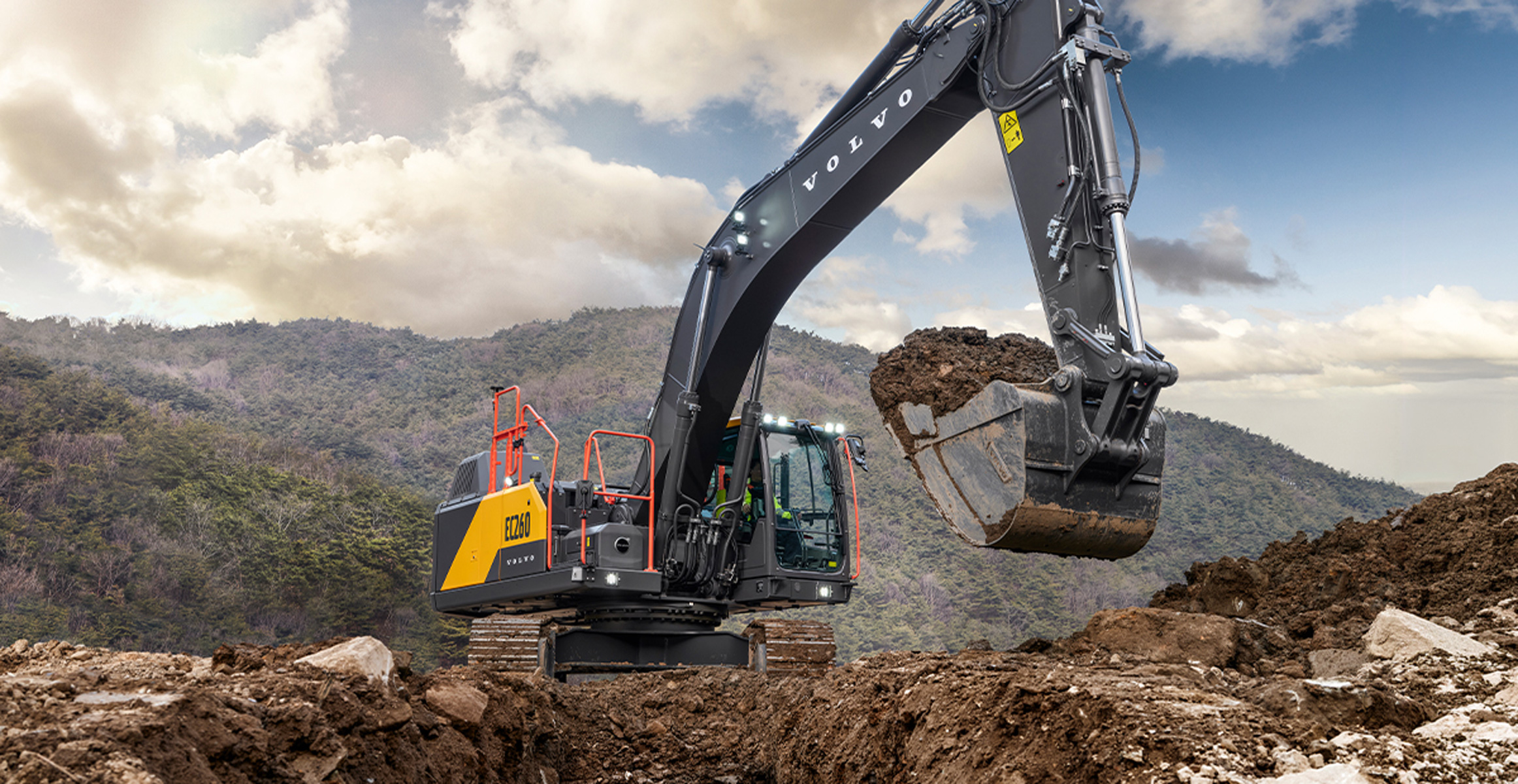

Medium Crawler Excavators
EC220E
-
45,350 - 55,360 lbs Operating weight -
173 hp Gross power -
0.63 - 1.88 yd³ Bucket capacity
Technical specifications for EC220E
| Operating weight | 45,350 - 55,360 lbs |
|---|---|
| Gross power | 173 hp |
| Engine speed at max engine torque | 1,800 rpm |
| Bucket capacity | 0.63 - 1.88 yd³ |
| Lifting capacity, along undercarriage | 16,400 lbs |
| ...at reach / height | 20 / 5 ft |
| Max. digging reach | 32′ 7″ ft in |
| Max. digging depth | 22′ 1″ ft in |
| Breakout force, SAE J1179 (Normal) | 31,700 lbf |
| Breakout force, SAE J1179 (Boost) | 33,500 lbf |
| Tear out force, SAE J1179 (Normal) | 23,380 lbf |
| Tear out force, SAE J1179 (Boost) | 24,730 lbf |
| Overall width feet inches | 9′ 10″ ft in |
| Tail swing radius | 9′ 4″ ft in |
Features & Benefits
Best in class efficiency
The EC220E builds on its efficiency reputation from the D-Series by ensuring all components work together and complement each other. The enhancements deliver the best in class fuel efficiency while not compromising on power – reducing emissions and consumption, while increasing productivity.
Volvo engine
Featuring proven advanced technology, and built on decades of experience, Volvo's robust D6 Tier 4F engine boasts more power - while reducing both fuel consumption and emissions to deliver superior quality, reliability and durability.
Increased power
The increased pump input power creates a highly responsive operation resulting in greater productivity and faster cycle time.
Boom float function
With the boom float function, the pump power for boom lowering can be saved or used for other functions, reducing the cycle time. Also, the grading operation can be made easier.
Main control valve and software
The valve is compatible with software in the machine to aid controllability, by providing smooth and easy operation. In addition to increased swing force, the EC220E also comes with a boom swing priority valve; this enhances controllability of the swing and boom operation – making it ideal for loading trucks.
First choice for comfort
The cab design puts the operator in the drivers' seat to control personal specifications - from climate control, to short-cut functions on the joystick. The spacious cab allows the operator to move comfortably, to create a working environment that naturally promotes increased productivity
Side view camera
As well as the rear view camera, there is now a side view camera option to cover the visual blind spot. Both views are displayed on the color monitor, creating a safer working environment, protecting the operator and personnel on the ground.
Short-cut key
For added convenience, functions such as windshield wipers, cameras, auto-mute or power max function can all be assigned a short-cut button on the joystick. This allows the operator to select a function during the application without disruption.
Bluetooth®
To aid operator convenience and support better productivity, you can now connect a Bluetooth device to the machine enabling the hands-free function.
Seatbelt warning alarm
If the seatbelt is not buckled when the ignition key is turned, an alarm is triggered in intervals along with a continuous visual alert. This emphasizes our priority for operator safety.
Building on foundations of trust and quality
Quality is one of Volvo’s core values and it goes hand-in-hand with reliability and durability. The EC220E pays particular attention to having all the components working at a high level of capacity but also being built to stand the test of time – providing the customer and operator with peace of mind.
ROPS
The cab features ROPS – this reinforced steel structure ensures the operator is protected in the unlikely event of the machine rolling over, while it also meets the ISO standards for safety.
Boom and Arm
The robust design includes internal plates positioned to support pressure points during the range of applications. This helps disperse the stress from high-pressure areas of the boom and arm, to ensure maximum productivity time after time, during the most demanding applications.
Lower frame
The intelligently designed X-shape lower frame enables even weight distribution increasing stability and durability - preventing damage from rock and debris.
Narrow and Heavy-duty (NH) Undercarriage
The EC220E NH’s oversized and heavy-duty undercarriage creates excellent tractive force for improved durability and reliability in demanding terrain. A robust undercarriage increases the service life of the machine.
Customer choice
Creating a machine that can adapt to a number of attachments increases productivity and reduces cycle time. The EC220E not only manages to achieve this versatility but it is a machine that incorporates the same high quality performance across its entire menu of applications – meaning the operator is safe in the knowledge that with Volvo there is no better option.
Attachment Management System
The password protected management system allows storage for up to 20 different attachments. It pre-sets and permits hydraulic flow and pressure to be adjusted within the cab, which ensures the use of various attachments for increased versatility
Extra piping
An additional piping solution is available on the breaker and shear piping (X1), accommodating the use of tilt/rotator attachments.
Electrical pedal
The electric pedal offers precise control to allow the operator to use a wider variety of attachments.
Response mode
The attachment response sensitivity can be adjusted using the keypad. This allows the operator to tailor machine response for maximum impact in different environments.
Proactive maintenance solutions.
Maintaining your machine will ensure you get the maximum lifetime and productivity. This is why Volvo have made this process easy – developing it to be fast, regular and safe.
Full size guard rails
Multiple sturdy handrails provide safe and easy access to the superstructure for inspection and maintenance.
Single layer cooling system
The radiator, charged air cooler and hydraulic oil cooler are situated side-by-side on a single layer, to maximize efficiency, reduce blockages and aid cleaning. The system is easily accessed from ground level by simply opening the side door.
Service interval alerts
Real-time service alerts are displayed on the color monitor to enable diagnostic checks. Separate service intervals include – the engine oil/ filter, fuel filter/water separator, hydraulic oil and hydraulic oil filter. This ensures peace of mind and maximum uptime.
Anti-slip steel plates
Well-positioned punched anti-slip plates provide superior grip and durability. The design facilitates easy cleaning while promoting safety.
-
