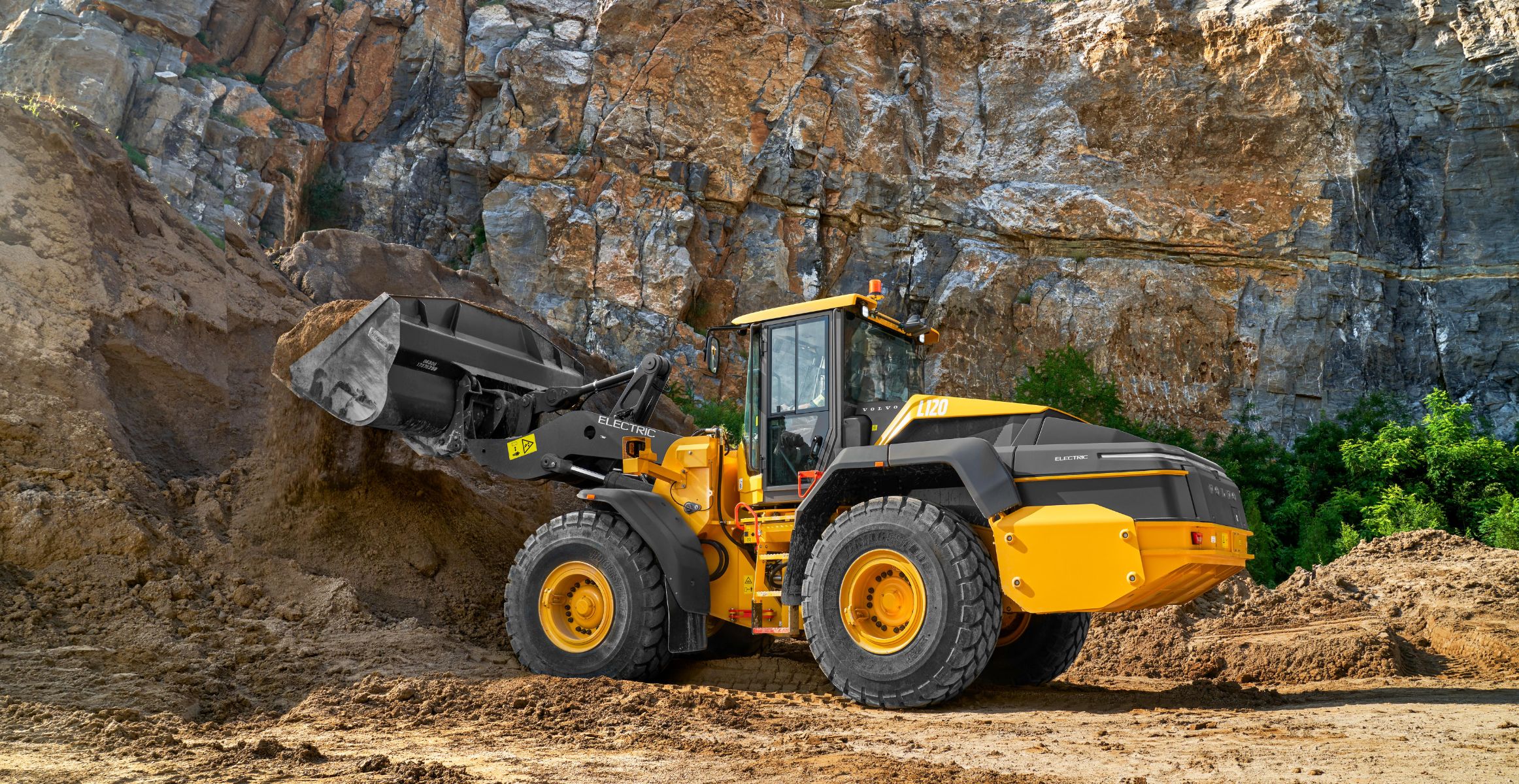

Low noise, high power 20-tonne electric wheel loader

L120 Electric

43,431 - 46,297 lbs Operating weight
4.3 - 7.2 yd³ Bucket capacity
282 kWh Battery capacity

Reserve

Request Machine Information

Low noise, high power 20-tonne electric wheel loader

Matching the powerful performance of its diesel equivalent, the L120 Electric is a 20-tonne wheel loader with the added benefit of zero exhaust emissions and a near silent operation. Thanks to a lifting capacity of 6 tonnes, it can meet the demands of a range of tasks across segments such as urban infrastructure maintenance, waste and recycling, agriculture, forestry, and ports and logistics centers. What is more, it offers a lower operating cost with an energy cost reduction compared to a diesel driveline. With no engine-related parts, it also ensures 30% reduced maintenance requirements and increased uptime to improve your productivity.

Technical specifications for L120 Electric

Static tipping load at full turn	28,660 lbs
Bucket capacity	4.3 - 7.2 yd³
Operating weight	43,431 - 46,297 lbs
Breakout force	38,667 lbf
Electric motor	PMSM
Rated power	228 kW
Battery Type	Lithium Iron Phosphate (LFP)
Battery voltage	618 V
Battery capacity	282 kWh
Usable battery capacity	268 kWh
DC Charging capacity	165 kW
Fast charging	Up to 165 kW in 2 hours
Indicative runtime (depending on application)	5-9 hours
Tires	23.5R25

Based on machine configuration: Based on 3.5 m³ STE P BOE bucket

Features & Benefits

The L120 Electric is not only great for the environment, but it’s a brilliant boost to your business. The zero exhaust emission wheel loader opens up business opportunities while lowering operating cost.

Wider business opportunities

It is now easier to access jobsites with low carbon and low noise requirements, operate indoors without needing costly fume extraction systems or spark arrestors, and work outside of standard hours. Furthermore, the electric machine provides you with an energy cost reduction and 30% less maintenance requirements.

In the L120 Electric you can experience the same – if not better – performance as you do operating its conventional counterpart, with the added benefit of faster response and shorter cycle times.

Efficiency features

This is thanks to a number of efficiency-boosting features, such as dedicated electric motors for propulsion and hydraulics, enabling full available power to both systems and an increased ease of operation. The dual thermal control system secures optimal temperature, efficiency and a good lifetime of components. The L120 Electric benefits from an active cooling and heating of high voltage batteries, and a passive cooling of electrical motors, transmission and hydraulic oil. And the renowned Torque Parallel linkage ensures parallel movements and a balanced breakout force, while a range of Volvo Attachments increases the versatility of tasks the machine can undertake.

Thanks to a range of powerful charging solutions, complete a full day’s work on a single charge, or take advantage of a quick top-up during work breaks. The electric wheel loader can achieve 5-9 hours of operation across most light and medium duty tasks.

Reliable runtime

The fast charging options include the 180 kW DC charger allowing a power-up from 10 to 100% in one hour 40 minutes and the 40 kW DC charger for overnight charging, ensuring a charge from 0 to 100% in 7 hours. Meanwhile, the PU500 Mobile Power Unit is available to help fully charge in one hour 40 minutes. Finally, the My Equipment digital tool helps ensure your machine is ready for action with valuable insights into battery status, machine hours and geographic location.

The machine’s electrical drive motors act as generators when the operator is decelerating, helping to recover energy that can then be re-used.

Energy recovery function

The recuperation of braking energy helps to charge the battery and prolong your runtime. It also ensures decreased brake wear and the reduced need of axle oil cooling.

Near silence creates a much more pleasant environment for the operator. And with no engine sounds to compete with, those working on site will find it easier to communicate and will suffer from less fatigue.

Increased comfort

Improved conditions are also due to other standard features such as Load Assist applications, including On-Board Weighing. The L120 Electric also enjoys all the benefits from the conventional model, including electro-hydraulic lever controls for smooth control and less heat in the cab, and auto bucket leveling functions.

The fully electric driveline helps to maximize machine uptime and profits, by reducing maintenance time and costs by 30%.

Cost efficient operation

This is thanks to a range of beneficial features, such as no engine-related consumables, maintenance-free electric motors and ground-level service access for fast service.

Keep your Volvo a Volvo!

Only with Volvo attachments do you get what you wanted when you bought a Volvo in the first place – maximum productivity and uptime. Volvo develops and offers a wide range of attachments which brings you unmatched flexibility and versatility, making it easy for you to develop job opportunities and to get the job done with increased productivity. Displayed attachments may not be available in all markets. Consult your dealer for specific availability.
