Asphalt Compactors ABG PTR240

52,910 lbs Operating weight (with ROPS, fully ballasted)
99.8 hp Rated engine power
78.2 in Drum or rolling width

Enjoy ease of operation and high efficiency with the ABG PTR240, built to finish the job on time and under budget. Designed for roadway construction and resurfacing applications, the eight-wheeled pneumatic tire roller utilizes kneading action for the compaction of hot and warm mix asphalt. For chip... Read more

Request Machine Information

Download the ABG PTR240 brochure, with all the details and specifications. (PDF, 236.2KB)

More specifications and competitor comparison

High-performance compaction

Technical specifications for ABG PTR240

Here are the key specifications for this product model. Want more details? Download the brochure or contact us.

Operating weight (with ROPS, fully ballasted)	52,910 lbs
Drum or rolling width	78.2 in
Rated engine power	99.8 hp
Overall length	16′ 6″ ft in
Overall width	6′ 10″ ft in
Overall height	123.2 in

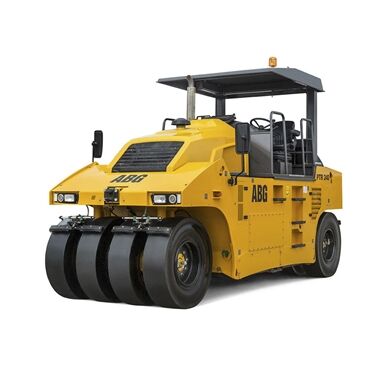

Image illustration only. Production machines may differ in appearance and features vary between markets and models.

More specifications and competitor comparison

Download the ABG PTR240 brochure, with all the details and specifications. (PDF, 236.2KB)

Features & Benefits

The maximum operating weight can be adjusted from 9 to 24 tonnes with sealed compartments using water, sand, or steel ballast.

The best features for your kneads

Experience high-performance compaction in all terrain with the ABG PTR240. Designed for roadway construction and resurfacing applications, the eight-wheeled pneumatic tire roller utilizes kneading action for the compaction of hot and warm mix asphalt. For chip seal applications, the pneumatic tires press the aggregate into the binder without fracturing. Enjoy ease of operation and high efficiency thanks to the ABG PTR240, built to finish the job on time and under budget.

A fuel-efficient Tier 4 Final engine with a 3-speed Powershift™ transmission delivers ample power reserve for difficult applications and high rolling speeds - up to 19km/h (12mph).

POWERFULLY EFFICIENT

The central tire inflation system enables to optimize the tire contact area by simply adjusting the tire pressure from the operator platform.

PRESSURE MAKES PERFECT

The pressurized, rust proof water system features an adjustable flowrate, individual tire spray nozzles, and a 390-liter capacity tank to minimize the risk of material pickup with cold tires.
