Volvo Construction Equipment’s medium and large wheel loaders and excavators now have more to smile about – an all new premium tooth system that not only increases productivity and fuel efficiency, but is also more wear resistant and much easier to fit, thanks to its hammer-less pin design.
Offered for Volvo wheel loaders between L60 to L350, and for Volvo excavators from 14 tonne capacity up to its largest 95 tonne machine, the new tooth system digs deeper and stays sharper for longer. The low profile design offers greater penetration capability and higher bucket fills, offering quicker cycle times and as much as an extra 20% more penetration over the life of the tooth – boosting productivity and extending effective tooth life. The design also features a more self sharpening design, further helping to reduce fuel consumption.
FITTING GEOMETRY
Protected welding, stronger adaptor nose and clever design helps give the system added robustness, while the system’s greater durability means longer change intervals and reduced bucket wear. Because they are designed exclusively for these Volvo machines, the teeth and adaptors are specifically matched to the specification, size and model of machine.
Featuring smooth surfaces in critical areas, the new tooth system helps to distribute stress while working. With the optimum balance of wear protection and weight, the tooth system has been engineered to unlock the potential of these machines – delivering maximum performance, breakout force and uptime.
PLACE. PUSH. TWIST.
The ultimate in wear parts, even the best teeth need to be replaced eventually, but changing teeth with Volvo’s new generation tooth system couldn’t be easier – or faster. A true hammer-less system, the teeth feature a new locking system that has a reusable locking pin. Offering excellent fit and retention – and an auto-tightening effect once fitted, the reusable pin locks into place simple by twisting it a quarter turn. Taking just a few minutes, installation couldn’t be simpler – place, push and twist – that’s it.
THE RIGHT TOOTH FOR THE TASK
There are five types of tooth available for the excavators: general purpose, abrasive material & rock, pick point, twin pick and spade nose. There are two adaptor types offered, and also an optional mechanical wear cap available, which fits on the standard adaptor and extends tooth life further. For wheel loaders there are three types of tooth available – general purpose, abrasive material and rock, along with three types of adaptor.

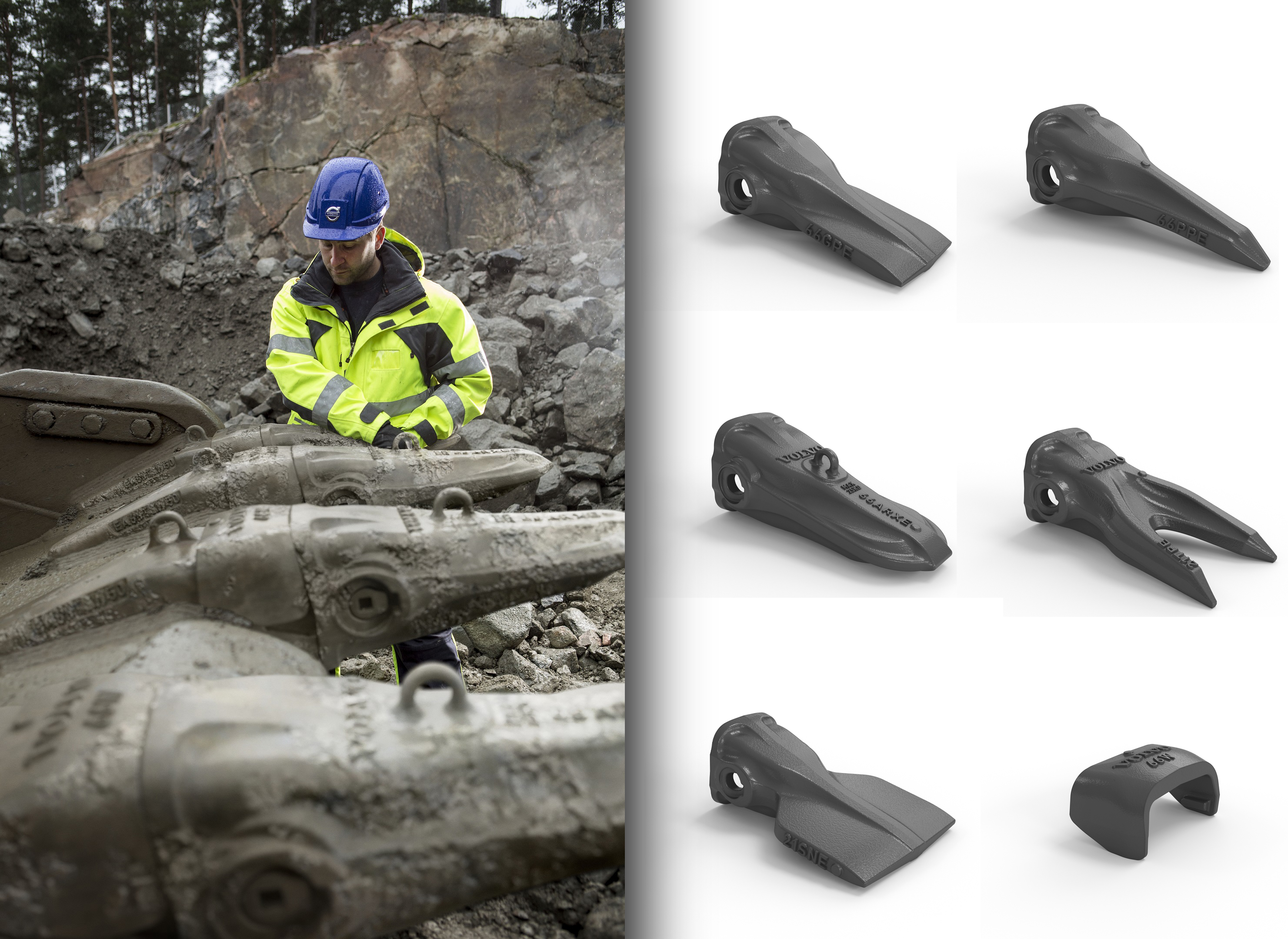

Image 1: Volvo’s new tooth systems has a longer life and higher penetration.

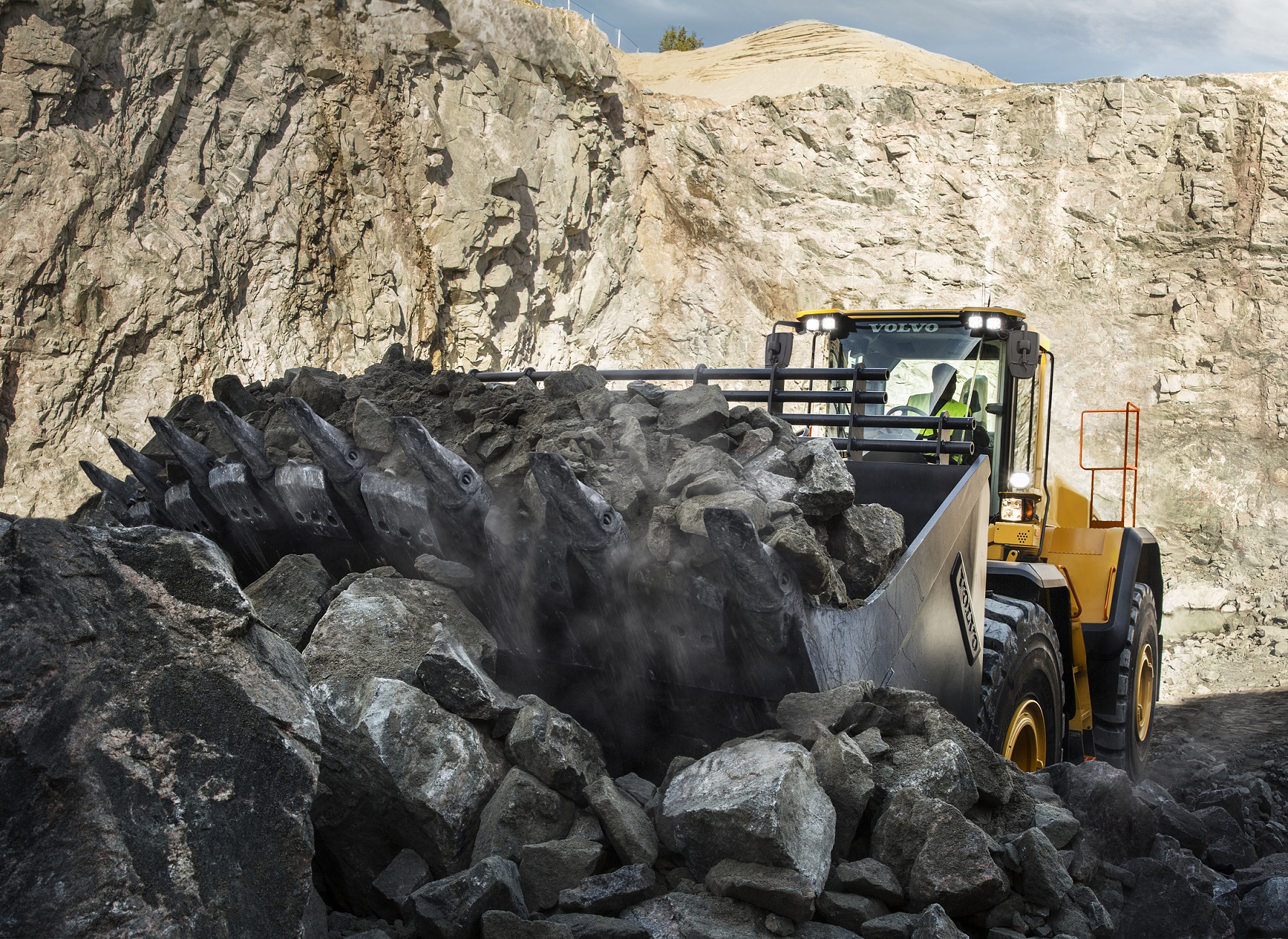

Image 2: The new tooth system helps to distribute stress while working
Image 3: The teeth and adaptors are specifically matched to the specification, size and model of machine.
