Compact Wheel Loaders L45H

1.4 m³ Bucket capacity
8,670 kg Operating weight
75 kW Engine gross power

More than 60 years in the making, Volvo is proud to introduce the L45H wheel loader. This versatile machine is a powerful asset on every job site in every application.

Download the L45H brochure, with all the details and specifications. (PDF, 814.9KB)

More specifications and competitor comparison

Any job, any time

More than 60 years in the making, Volvo is proud to introduce the L45H wheel loader. This versatile machine is a powerful asset on every job site in every application.

Technical specifications for L45H

Here are the key specifications for this product model. Want more details? Download the brochure or contact us.

Engine	Volvo D4J
Engine gross power	75 kW
Max torque ISO 9249, SAE J1349 net	416 Nm
Bucket capacity	1.4 m³
Tipping load (ISO/DIS 14397-1)	5,290 kg
...at full turn	40 degree
Breakout force	62 kN
Hydraulic lifting capacity, max	70 kN
Fork payload 80%	3,530 kg
Operating weight	8,670 kg
Maximum travel speed - Standard	20 km/h
Maximum travel speed - High speed	45 km/h

Based on machine configuration: With 1.4 m3 / 1.83 yd3 general purpose bucket (TPV linkage)

Image illustration only. Production machines may differ in appearance and features vary between markets and models.

More specifications and competitor comparison

Download the L45H brochure, with all the details and specifications. (PDF, 814.9KB)

Features & Benefits

Travel up to 40km/h* when conditions allow in the high-speed L45H, helping you achieve faster cycle times and speedy travel between jobsites, eliminating expensive trucking. *Depending on local regulations.

Get attached

With both standard and high-speed versions available, you can ensure your Volvo L45H wheel loader matches the speed of your application, resulting in optimum productivity and cycle times according to the demands of your operation.

The L45H wheel loader from Volvo gives you top performance whether working on smooth or rough terrain.

Solid, strong and stable

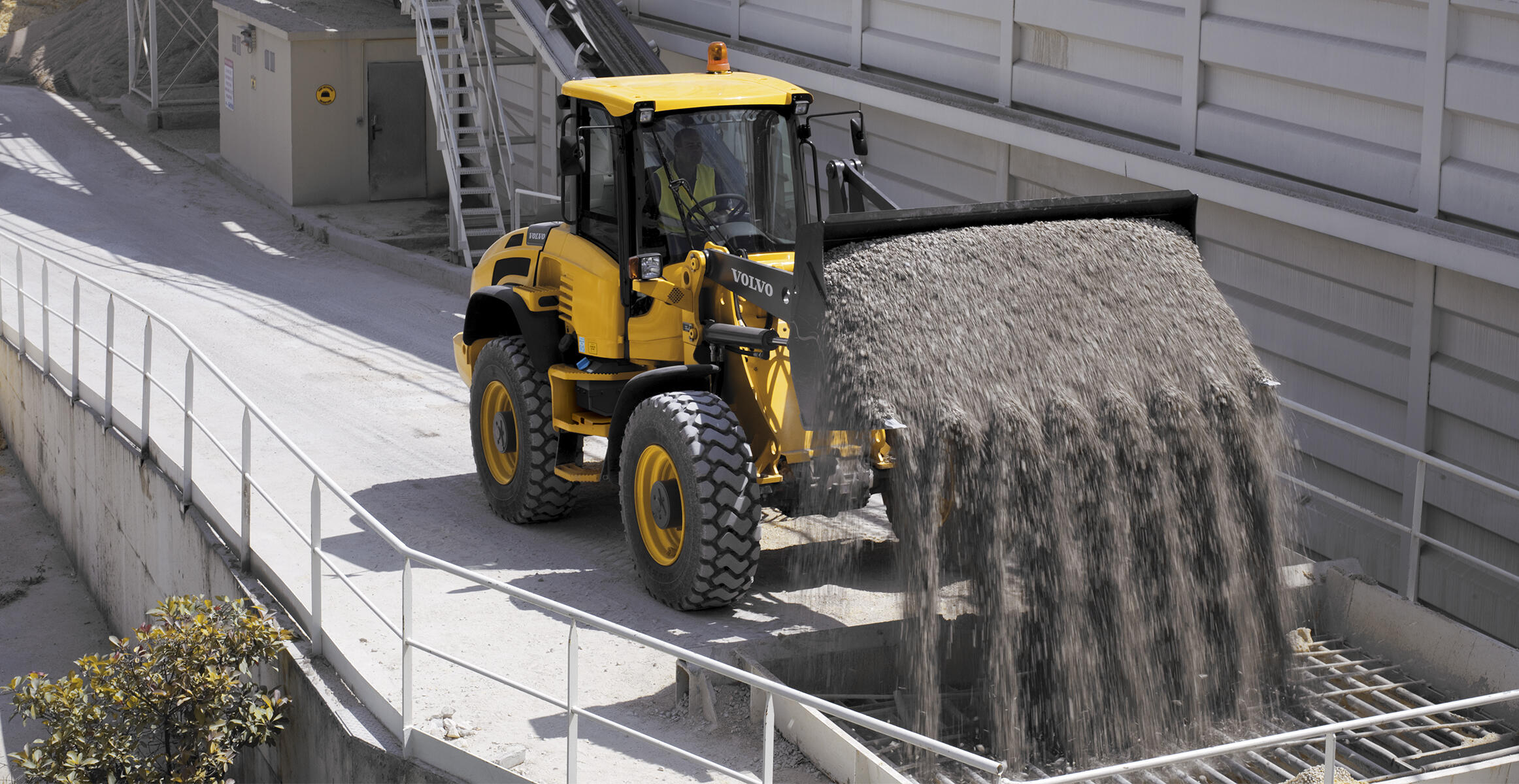

The Volvo L45H is a compact and well balanced wheel loader whose solid design gives you the strongest performance in the tightest job sites. Quality is built into every inch of the machine.

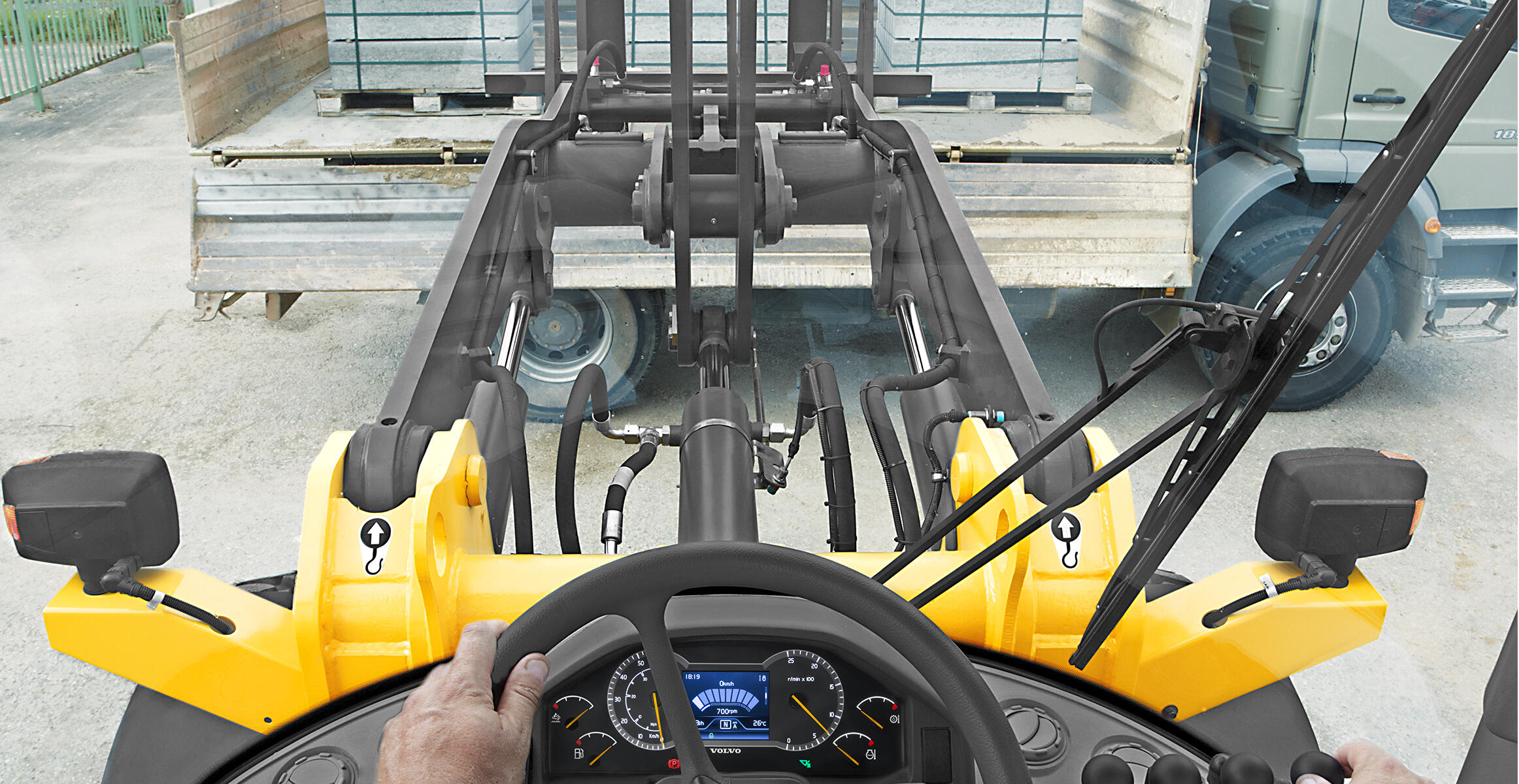

The certified ROPS/FOPS cab features ergonomically placed controls, a superior control system, all-around visibility and low internal noise levels.

Your control center

Step into Volvo’s industry-leading cab; your customized control room. Create your perfect working environment by adjusting the seat and steering wheel to fit your needs, then select the easy-to-reach controls. Excellent all-round visibility gives you the best view of your efficient work.

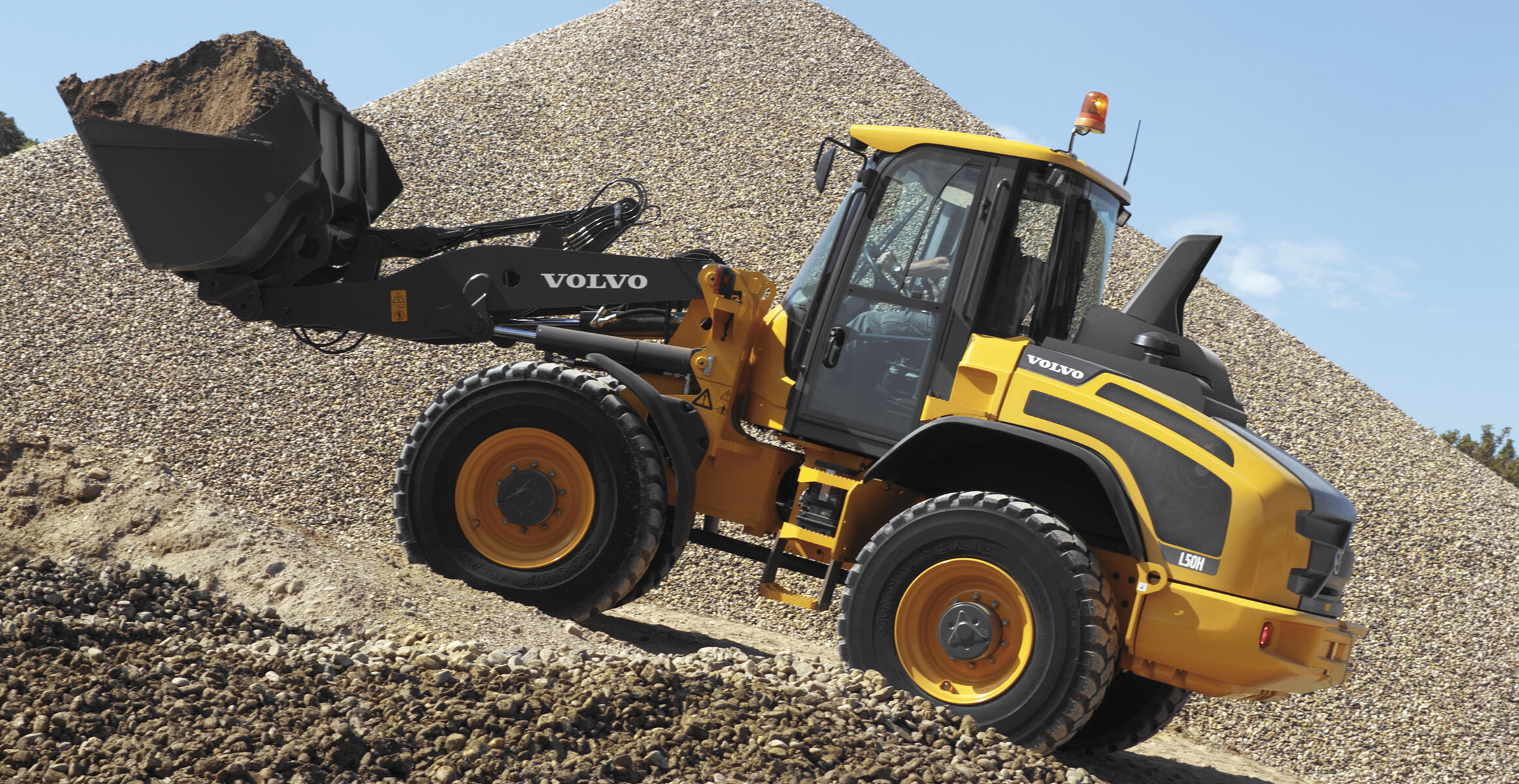

The engine, transmission and axles are all designed to work in perfect harmony with the hydraulics and steering for superb performance and reliability.

Tackle every terrain

Whether working on smooth or rough terrain, the Volvo L45H wheel loader gives you top performance. Quality is built into every inch of the machine, from the differential lock that transfers 100% power to all wheels, to the hydrostatic transmission which offers smooth speed increase.

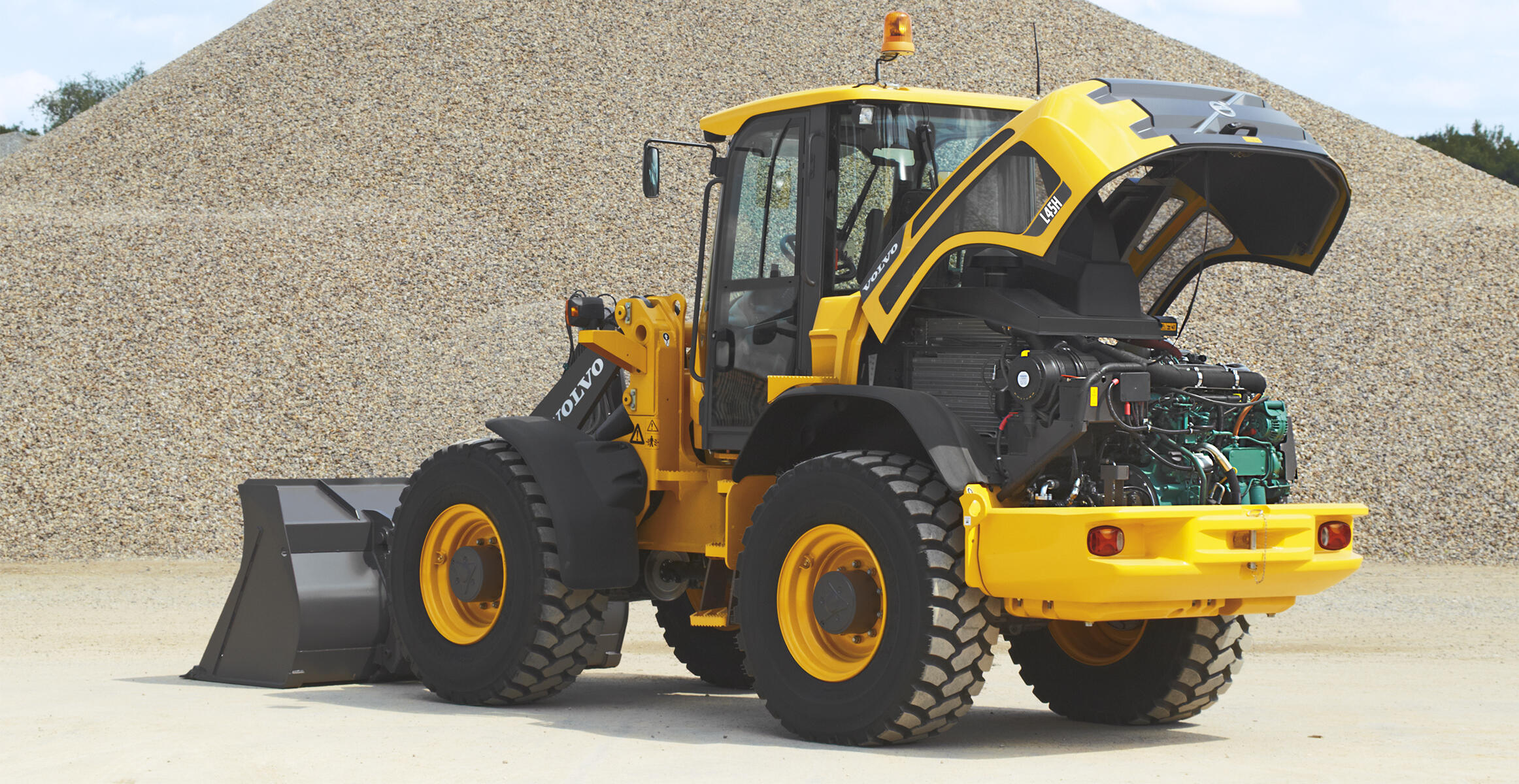

The service friendly design keeps your routine maintenance quick and efficient with a full access to the engine compartment.

Compact your service time

Daily service and maintenance checks have never been easier with the L45H wheel loader. Lift the engine hood to quickly access key components from the radiator to the hydraulic filters and use Volvo diagnostic tools to alert when service is required.

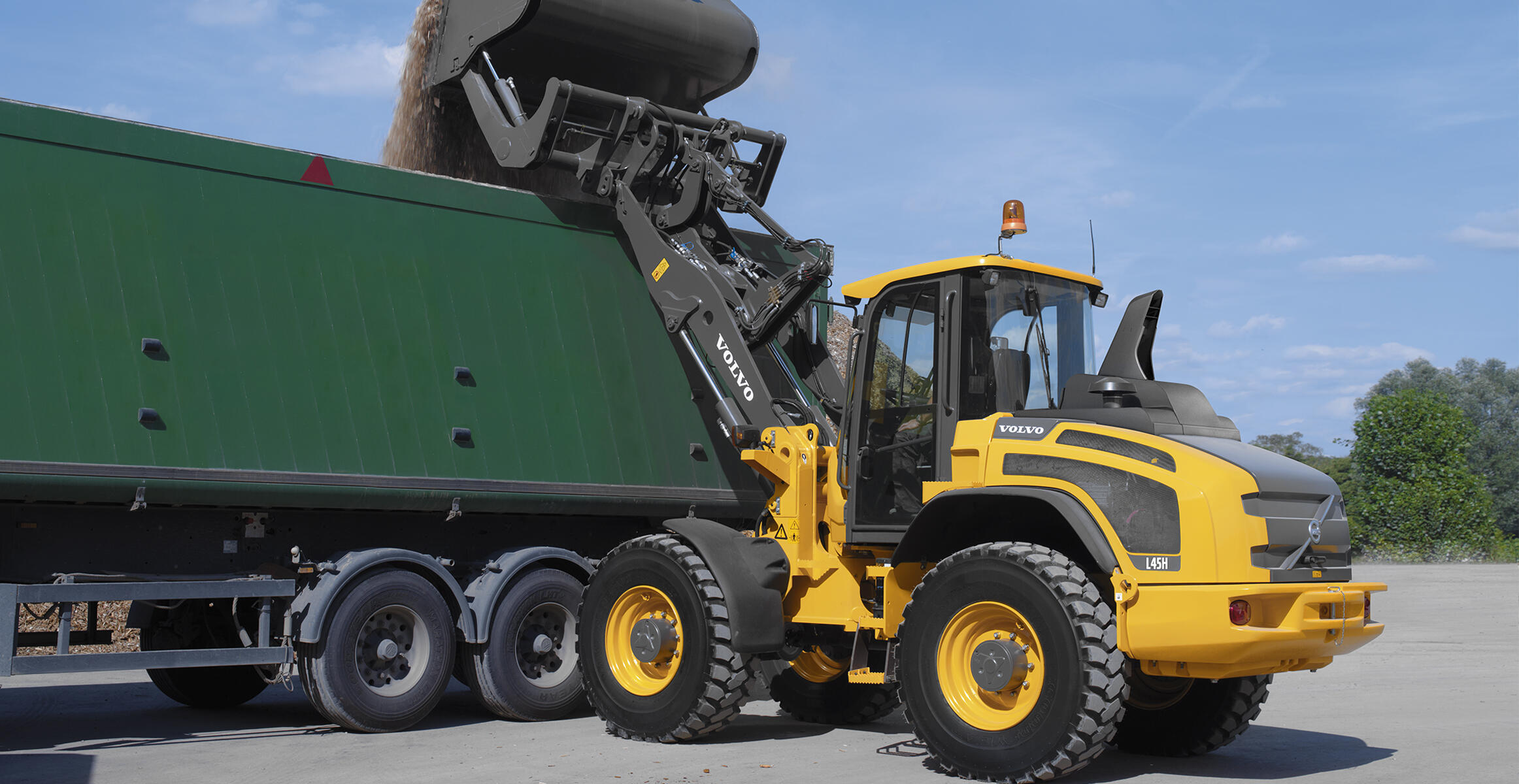

Volvo’s unique Torque Parallel (TP) linkage delivers high breakout torque and excellent parallel movement throughout the entire lifting range.

The best all-rounder

More than 60 years in the making, Volvo is proud to introduce the L45H wheel loader. This versatile machine is a powerful asset on every jobsite in every application.

Keep your Volvo a Volvo!

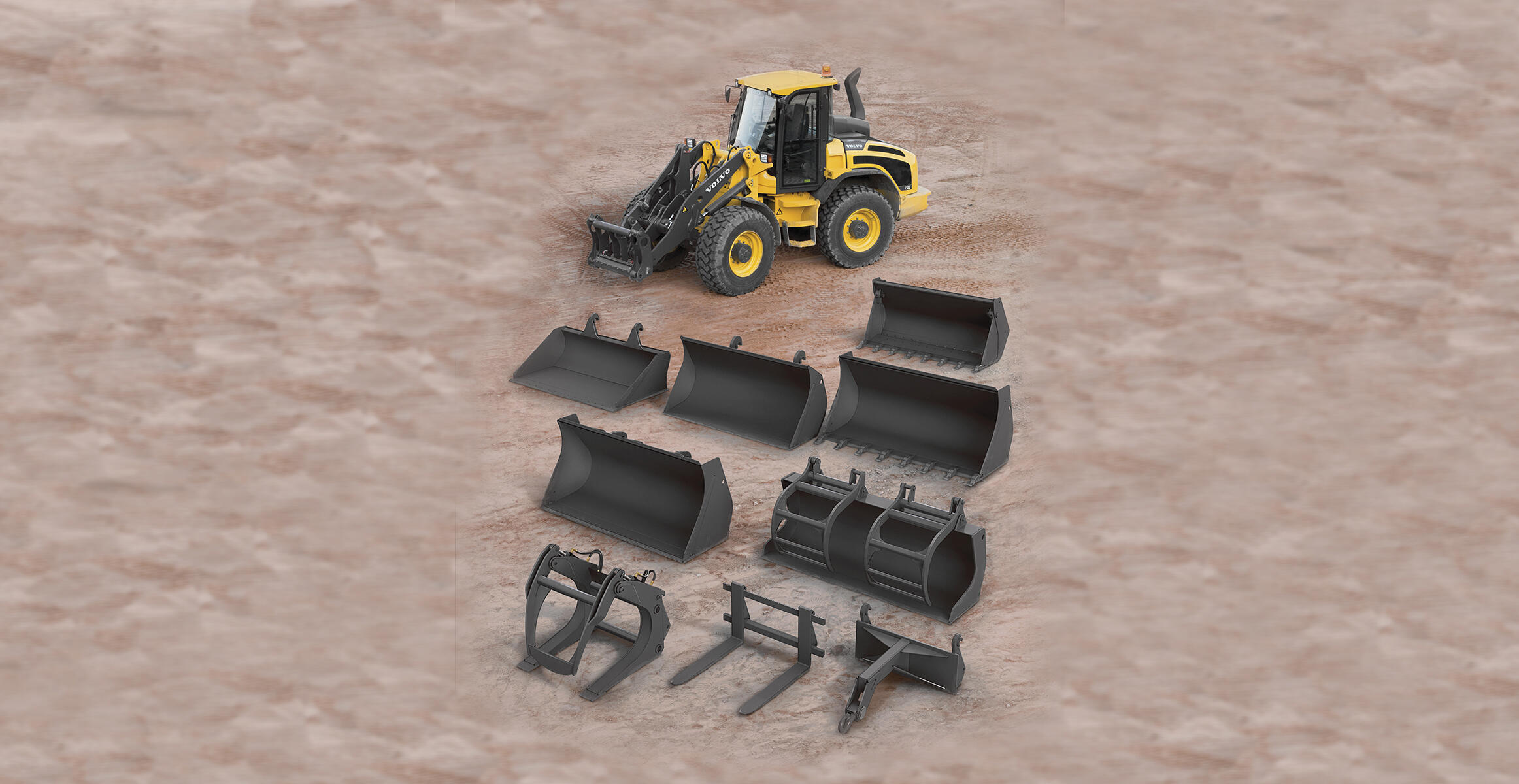

Only with Volvo attachments do you get what you wanted when you bought a Volvo in the first place – maximum productivity and uptime. Volvo develops and offers a wide range of attachments which brings you unmatched flexibility and versatility, making it easy for you to develop job opportunities and to get the job done with increased productivity. Displayed attachments may not be available in all markets. Consult your dealer for specific availability.
