Large Wheel Loaders L350H

6.2 - 12.7 m³ Bucket capacity
50,000 - 56,300 kg Operating weight
34,700 kg Static tipping load at full turn

Download the L350H brochure, with all the details and specifications. (PDF, 12.5MB)

More specifications and competitor comparison

EVOLUTION OF EXCELLENCE

With a proud history dating back to the L320 in 1985, Volvo has been developing and refining our wheel loader technology for decades. The new L350H continues this evolution, building on the success of its predecessor with a host of upgrades, making it the perfect choice for a wide range of applications – from mining and quarrying, through to heavy infrastructure. The result is a heavy-duty wheel loader which delivers a lower total cost of ownership and more profitable performance.

Technical specifications for L350H

Here are the key specifications for this product model. Want more details? Download the brochure or contact us.

Static tipping load at full turn	34,700 kg
Bucket capacity	6.2 - 12.7 m³
Operating weight	50,000 - 56,300 kg
Breakout force	450 kN
Engine	Volvo D16E
Max power at	1,700 - 1,800 rpm
...ECE R120 net	397 kW
...ISO 9249, SAE J1349 net	395 kW
Max torque at	1,400 rpm
...ECE R120 net	2,550 Nm
...ISO 9249, SAE J1349 net	2,547 Nm
Tires	35/65 R33, 875/65 R33

Based on machine configuration: Based on Rock bucket: 6.9 m³ with Teeth and Segments / Standard boom

Image illustration only. Production machines may differ in appearance and features vary between markets and models.

More specifications and competitor comparison

Download the L350H brochure, with all the details and specifications. (PDF, 12.5MB)

Features & Benefits

The new and improved L350H builds on the success of its predecessor to deliver up to 10% more productivity and up to 15% more fuel efficiency, combined with a significant reduction in service costs.

WHAT´S NEW?

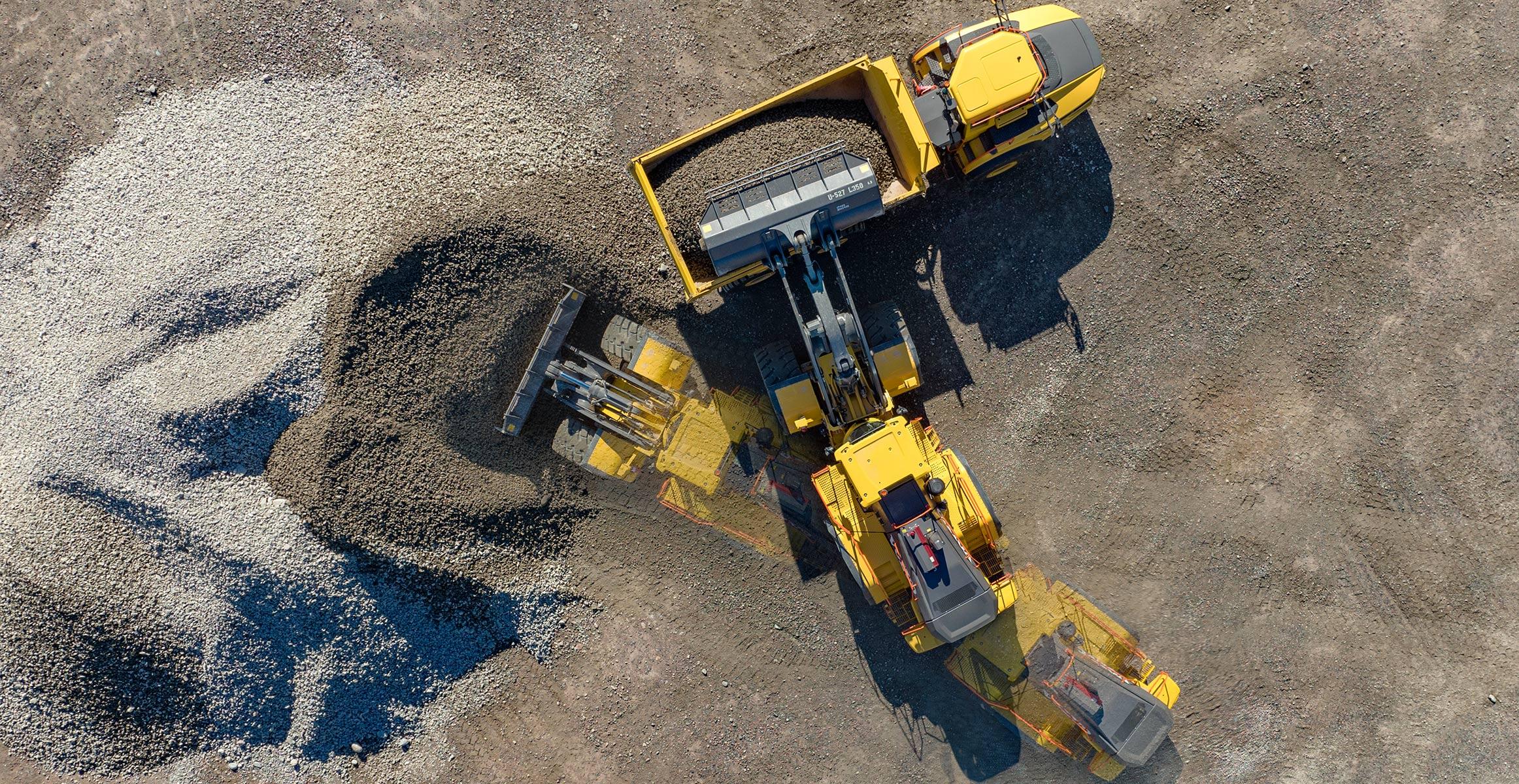

Benefit from up to 10% faster cycle times thanks to a more responsive hydraulics system, featuring new lift and tilt cylinders, and an increased hydraulic working pressure. The well-matched driveline features new Volvo axles, while the all-new Volvo transmission enables third-generation OptiShift – which boosts fuel efficiency by up to 15%* – to be equipped as standard. Tractive force is also increased by up to 22% depending on machine speed and engaged gear. The axle oil change interval has been doubled to 4000-hours, reducing corresponding service time, as well as cutting oil and filter requirements by half. *depending on application, machine specification, bucket and operator behaviour

The strong frame structure and proven Z-bar lifting arm with double sealing on each of the pins is joined by a reinforced upper center hinge and new Volvo axles. Combined with purpose-built Volvo Attachments, the result is a machine built to take on the toughest of jobs.

BUILT FOR DEMANDING JOBS

With high lifting force and tilt out force, the L350H log loader is designed to withstand the long shifts and demanding environments common in the forestry industry.

Rock loader

The L350H is prepared for tire chains and is the perfect match with a 65t truck due to the long boom configuration. With a long floor and optimized radius, the Volvo Rock Bucket makes for easy filling, and a side dump variant is available for tunneling applications.

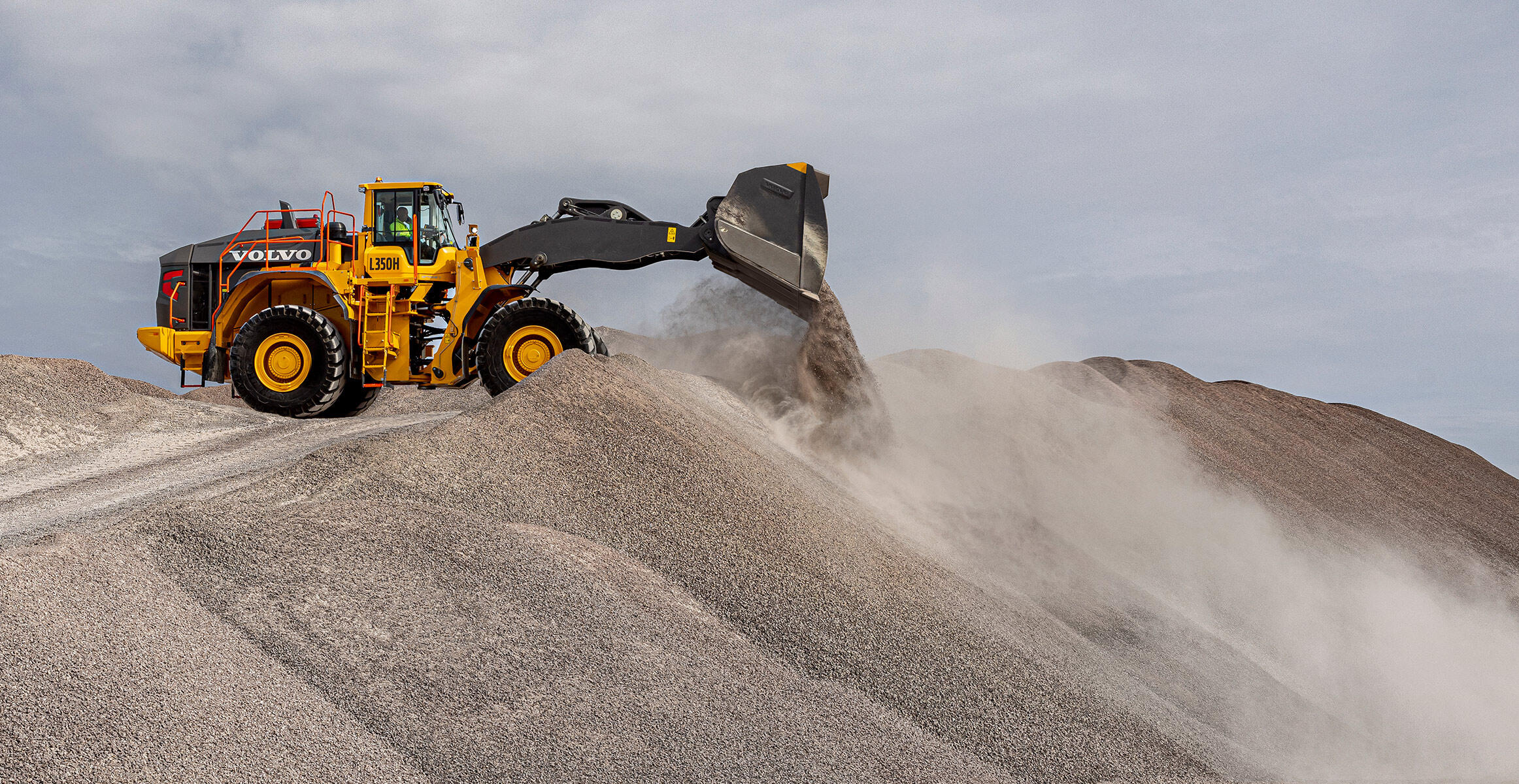

Rehandler

With an impressive 10.7m³ capacity, the Volvo Rehandling Bucket is easy to fill and minimizes spillage. Choose the Boom Suspension System, which automatically engages depending on the prevailing gear and speed, to enhance productivity and absorb shocks.

Block handler

For high lifting force and maximum stability in block handling applications, choose from the standard or heavy-duty kit variants and a range of robust Volvo Attachments, including block forks, breaker tine and clearing rakes. The optional Volvo Engine Brake provides a smoother operation when travelling downhill with heavy marble blocks.

Slag handler

Dealing with extremely high temperatures takes a special kind of engineering. From unique guarding to heat-resistant components, the slag handling package enables our Volvo Wheel Loaders to meet the unique challenges of this application.

Enhance the profitability of your operation in the upgraded L350H, featuring an all-new Volvo transmission which enables third-generation OptiShift. Established features and complementary services, such as the Load Assist suite of apps accessed from the in-cab 10” Volvo Co-Pilot display, further improve fuel efficiency.

YOUR PROFITABILITY PARTNER

Thanks to the new driveline, third generation OptiShift is now enabled on the L350H. The technology integrates the Reverse By Braking function and lock up function in transmission to boost fuel efficiency by up to 15%*. Efficiency is further enhanced by an optimized gear shifting ratio and the new converter, which delivers higher outputs resulting in up to 22% more tractive force depending on gear and speed. *depending on application, machine specification, bucket and operator behaviour

Optimize fuel use

Optimize fuel use with rimpull control, which adapts the tractive force to prevent wheel spin and facilitate bucket filling. Volvo Attachments are perfectly matched to your machine to deliver optimum productivity and efficiency. For even more efficiency gains, the Fuel Efficiency Report can help to identify areas for improvement.

10% faster cycle times

Benefit from faster cycle times and more productivity thanks to the new hydraulic system with increased hydraulic pressure and new lift/tilt cylinders, combined with new driveline.

Take control of your productivity

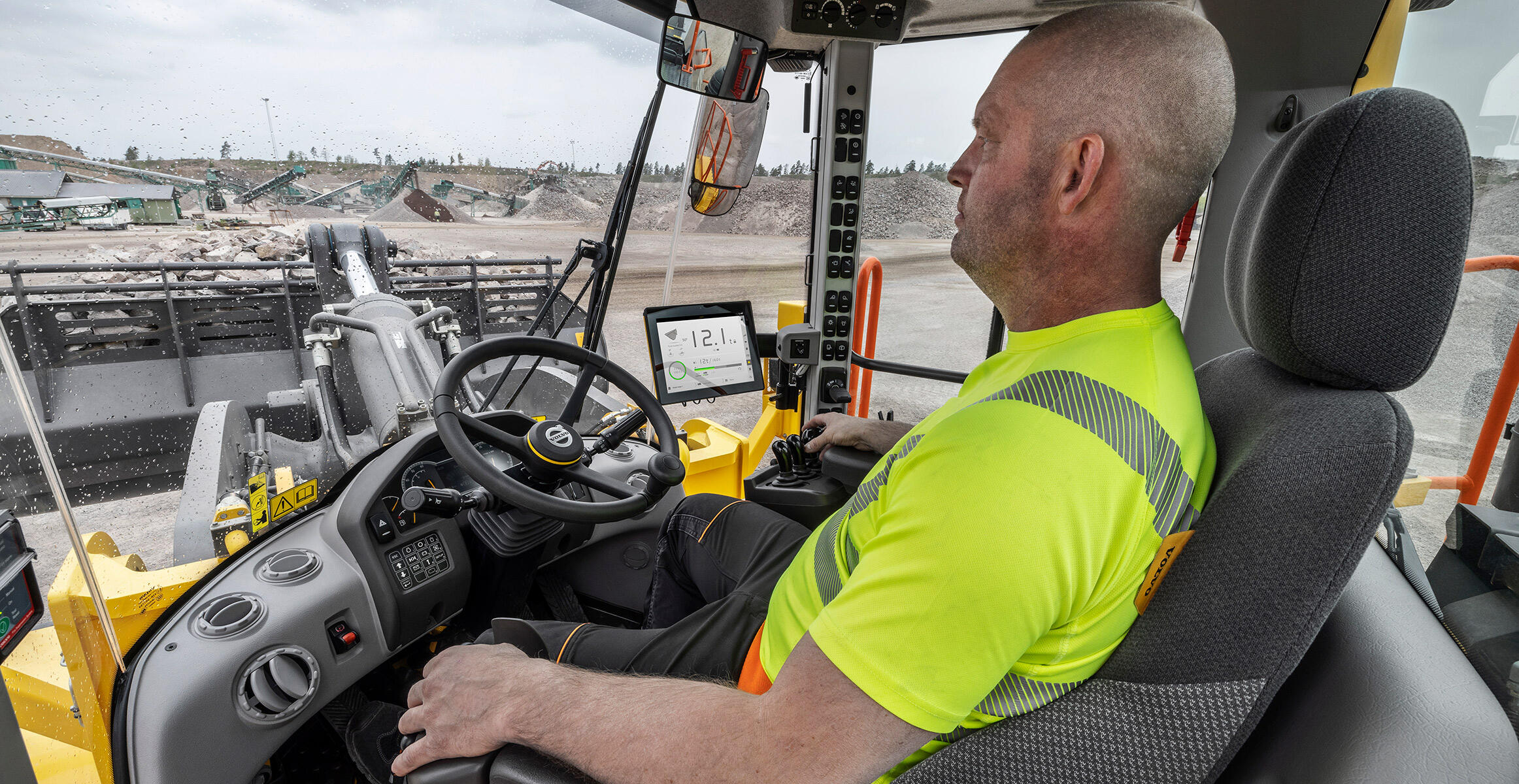

Make overloading, underloading, reweighing and waiting times a thing of the past with the On-Board Weighing app, providing real-time insight into the load of the bucket or grapple. The Productivity Report can help with taking the necessary steps to lower your cost per tonne. With support from Volvo Site Simulation, your Volvo dealer can recommend the best fleet configuration and site set-up.

Coach your performance

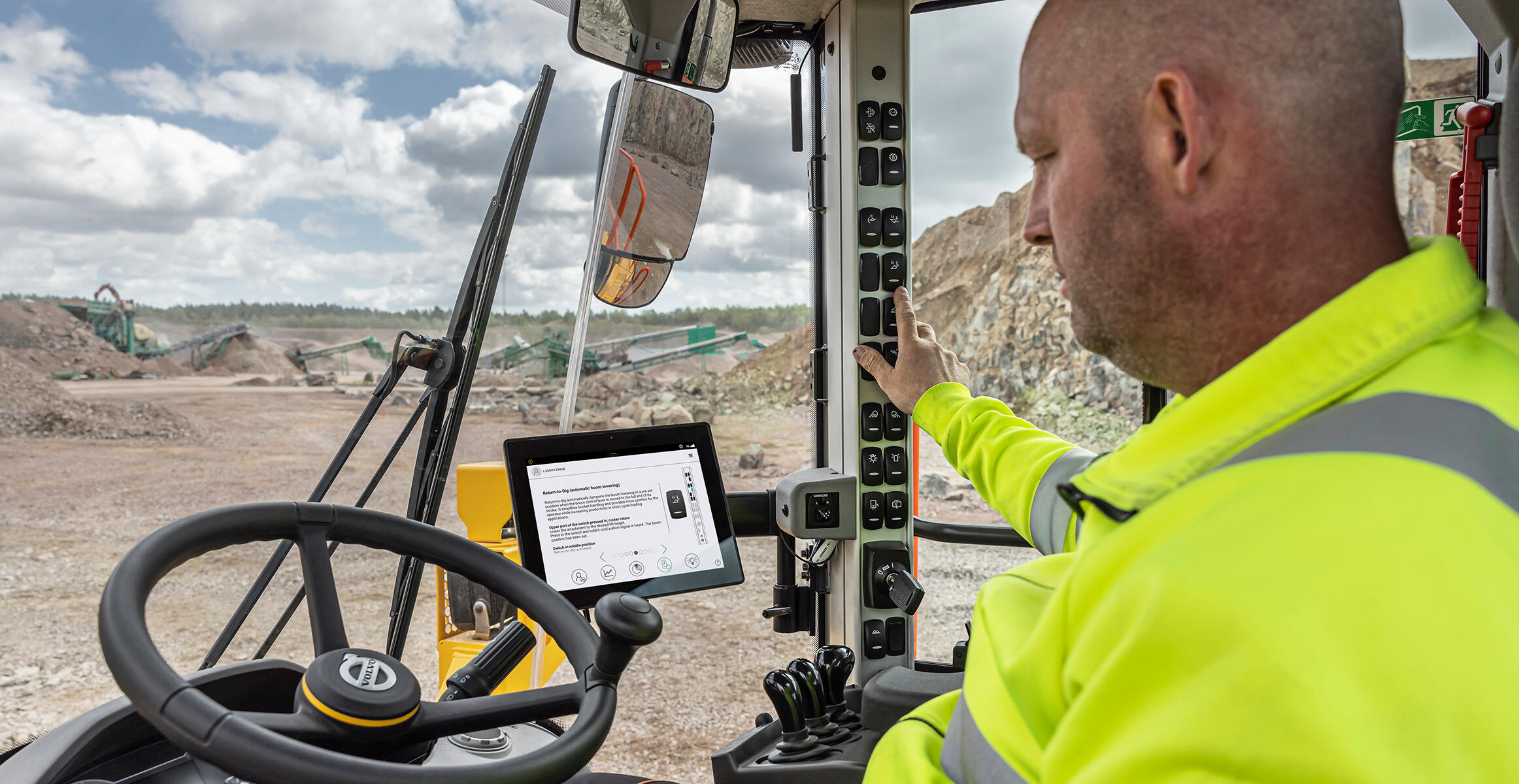

The Operator Coaching app helps operators understand how their actions influence machine productivity, fuel efficiency and wear. Features include interactive guidance, on-screen prompts and visualization of performance. With a range of available training initiatives, we are ready to support with operator development, helping them to unlock the full capability of their Volvo machine.

Step inside the best cab on the market, providing an unrivalled operator experience. The levels of comfort, convenience and safety in the L350H will help operators achieve optimum results – shift after shift.

OPERATOR IN FOCUS

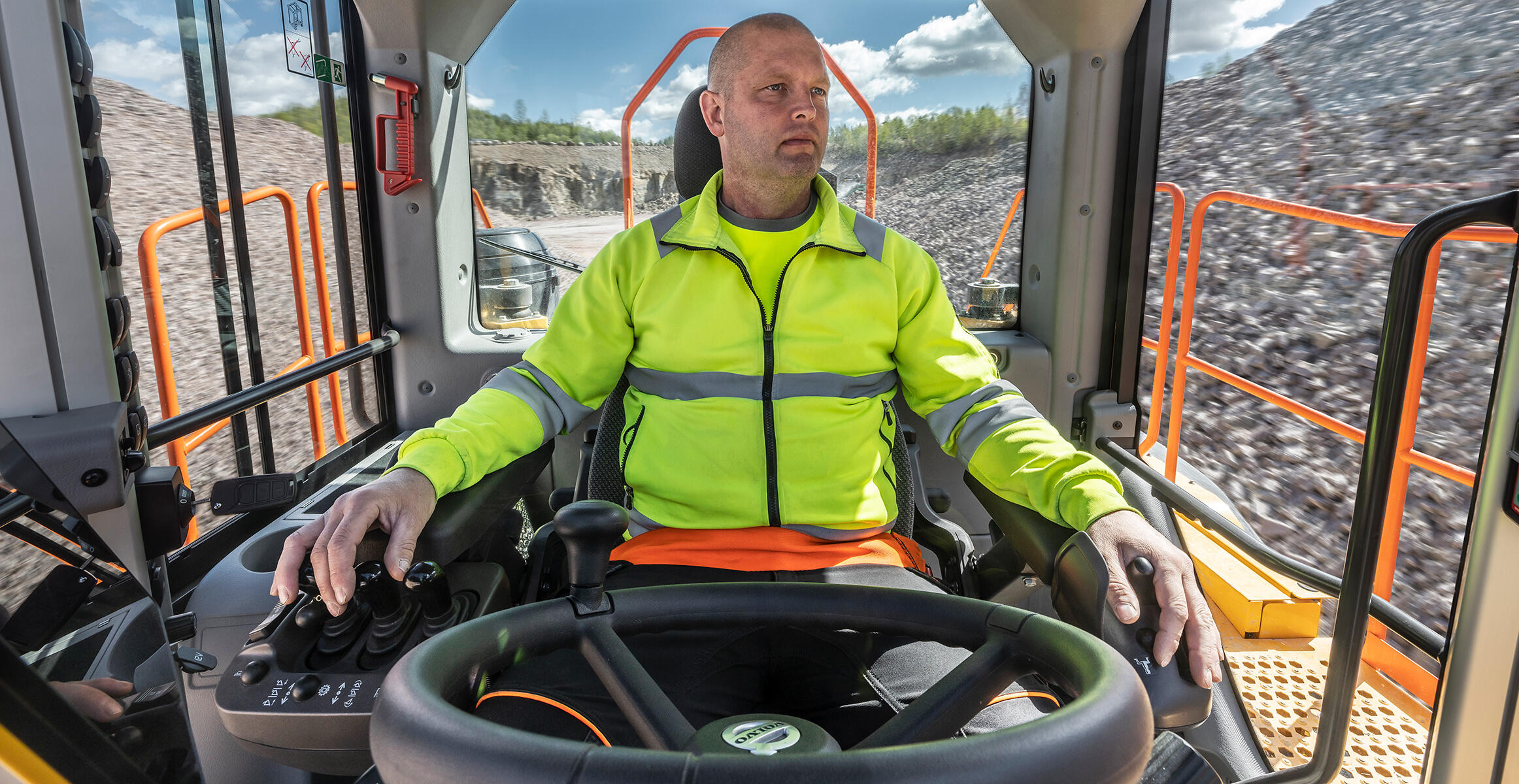

Every element of operator comfort and convenience is considered in the L350H, with a remote controlled door opening, air-conditioning and secondary steering system all as standard. Choose from a range of seats, including the fully adjustable premium seat, available with a 3-point seatbelt. Count on a steering wheel to always be fitted, taking priority over the Comfort Drive Control lever steering.

Superb visibility

Outstanding visibility helps operators to work in comfort and confidence, aided by the optional electrically adjusted heated rearview mirrors. When installed, the rearview camera and radar detect system are fully integrated into the Volvo Co-Pilot and provide a visual and audible alert to the operator if any unseen objects are approaching.

Take control

Configure the machine according to the job and operator’s preferred responsiveness, with a choice of three hydraulic modes. Customizable lockup further helps to adapt the machine to the task at hand, along with rimpull control which modifies tractive force to prevent wheel spin.

Bucket leveling function

The bucket leveling function automatically returns the bucket to level, from both dump and curl positions, helping to reduce operator fatigue.

Keep working for longer with reduced maintenance requirements and easy service access. Proactive tire monitoring and telematics connectivity keeps downtime to a minimum, getting you back to work without delay.

MORE UPTIME, LESS SERVICE COSTS

Keep uptime to a maximum with improved serviceability. Daily routine checks are made easy as a result of the engine side hood panels and easily accessed cooling package, while all other essential maintenance points can be safely accessed using the surrounding walkway.

Extended service intervals

Maintenance is kept to a minimum with a 4000-hour axle oil change interval, made possible by the external axle oil cooler with filtration. The subsequent 50% reduction in related service time ensures your machine stays on site, working and earning, for longer–while also reducing oil and filters required.

Designed to last

Minimize machine downtime and increase component life with features including heavy-duty axles with fully floating shafts, planetary hub reduction and maintenance-free rear axle trunnion bearings. Breather filters further help to increase component life and the reinforced upper bearing of the center hinge boasts a heavy-duty design to accommodate the new transmission and axles.

Get connected, boost uptime

Maximize machine uptime and reduce repair costs with CareTrack telematic system. Choose to keep track of your machine yourself or let us take care of it with ActiveCare, providing 24/7 monitoring and weekly reports. ActiveCare is part of a portfolio of Uptime Services, including maintenance and repair agreements, extended warranties, and more.

TIRE PRESSURE MONITORING  SYSTEM

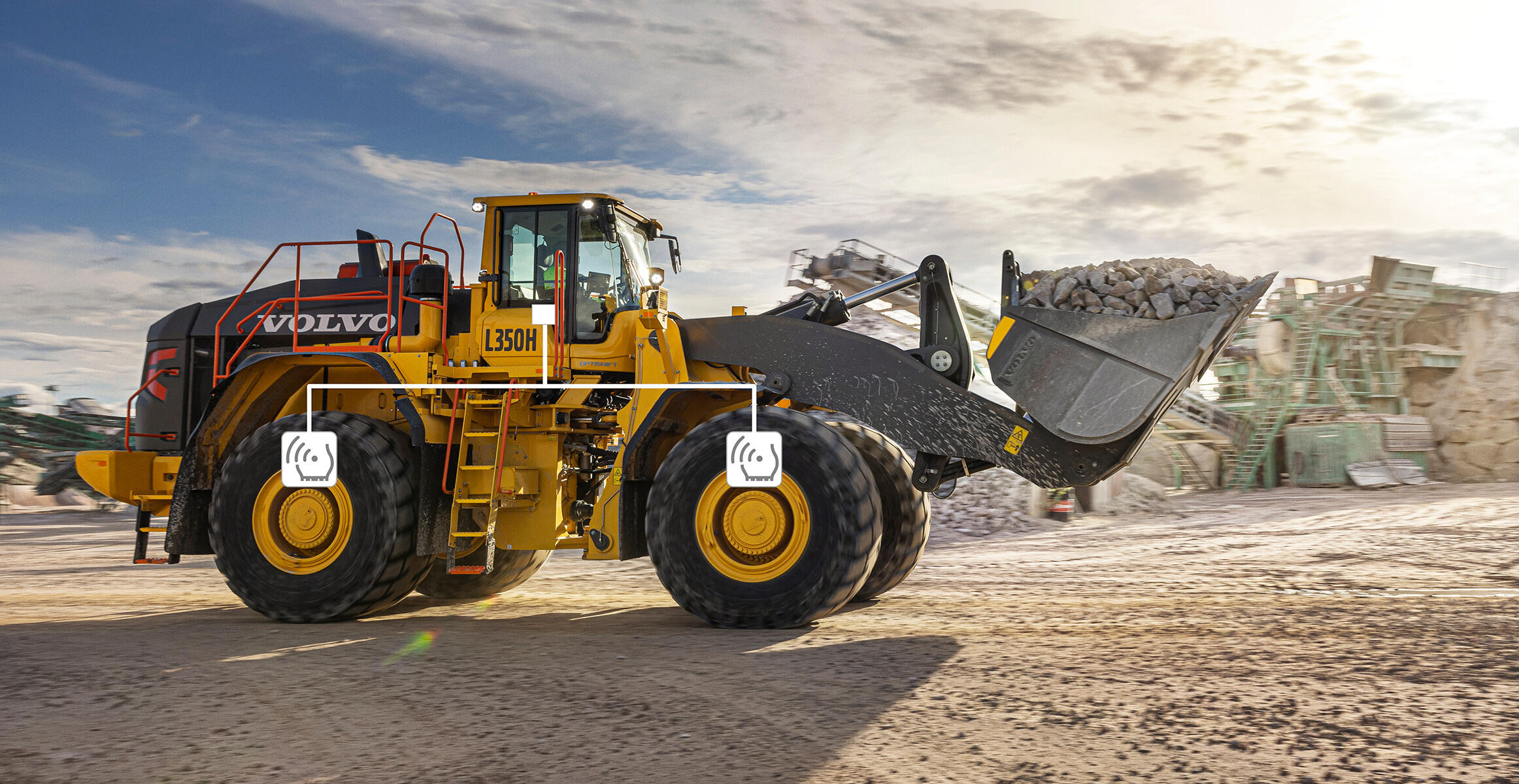

Extend tire life and save fuel with the support of  the  Tire Pressure Monitoring System, part of the Load Assist suite of apps accessed from the Volvo Co-Pilot display. The system enables the pressure and temperature of tires to be monitored from the comfort of the cab.

Keep your Volvo a Volvo!

Only with Volvo attachments do you get what you wanted when you bought a Volvo in the first place – maximum productivity and uptime. Volvo develops and offers a wide range of attachments which brings you unmatched flexibility and versatility, making it easy for you to develop job opportunities and to get the job done with increased productivity. Displayed attachments may not be available in all markets. Consult your dealer for specific availability.
