EC60C | Excavators | Overview | Volvo Construction Equipment

Technical specifications for EC60C

Here are the key specifications for this product model. Want more details? Download the brochure or contact us.

Engine	Volvo D3.4D
Gross power	39 kW
Net power	37.6 kW
...at engine speed	2,200 rpm
Operating weight	5,820 kg
Bucket capacity	0.23 m³
Travel speed, low / high	4.5 km/h
Slewing speed	8.8 rpm
Breakout force	42.2 kN
Tear out force (arm breakout force)	27.6 kN
Overall width	1,920 mm
Overall length	5,872 mm
Main hydraulic pump max. flow	57.8 l/min

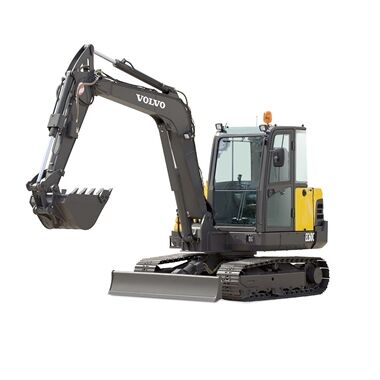

Image illustration only. Production machines may differ in appearance and features vary between markets and models.

More specifications and competitor comparison

Download the EC60C brochure, with all the details and specifications. (PDF, 2.2MB)

Features & Benefits

As all quality at work is ultimately in the hands of the operator, we've created the Harmony system to articulate and pilot every move they make. Irrespective of the load and sequence of actions, the speed of each hydraulic movement entirely depends on the operator's touch, almost as if the boom and accessory were extensions of his own arms.

Quality you know you can rely on

Volvo EC60C excavators are built to offer the very best return on your investment. Endurance testing in the toughest environments has been used to ensure reliability is built into every machine. High performance and dependability come as standard.

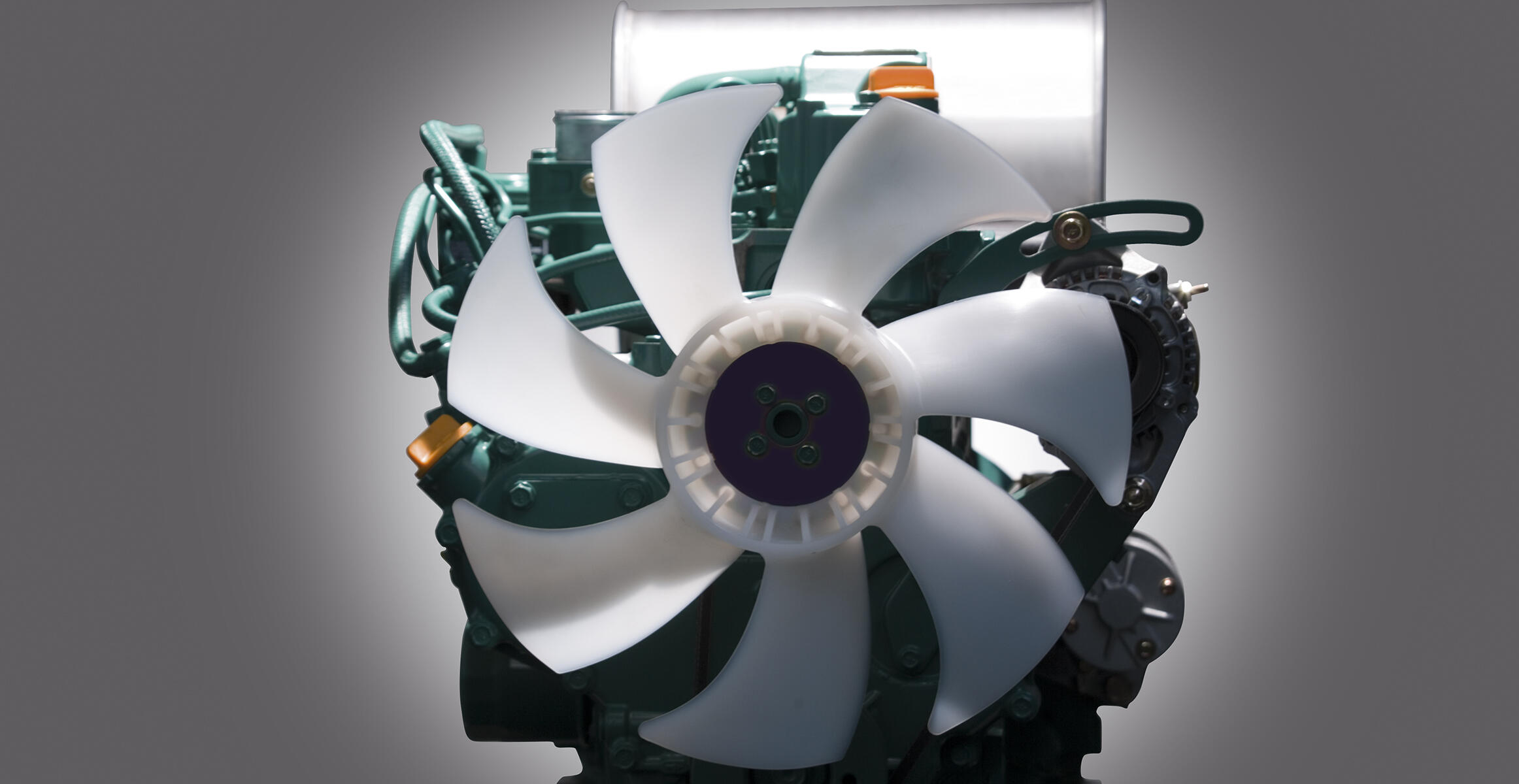

The EC60C features Volvo's latest generation engine technology. Engineered for top performance and diesel economy, it generates fewer emissions and less noise while delivering all the power it takes to guarantee the EC60C carries on working effectively for you throughout its long and productive life.

Quality you know you can rely on

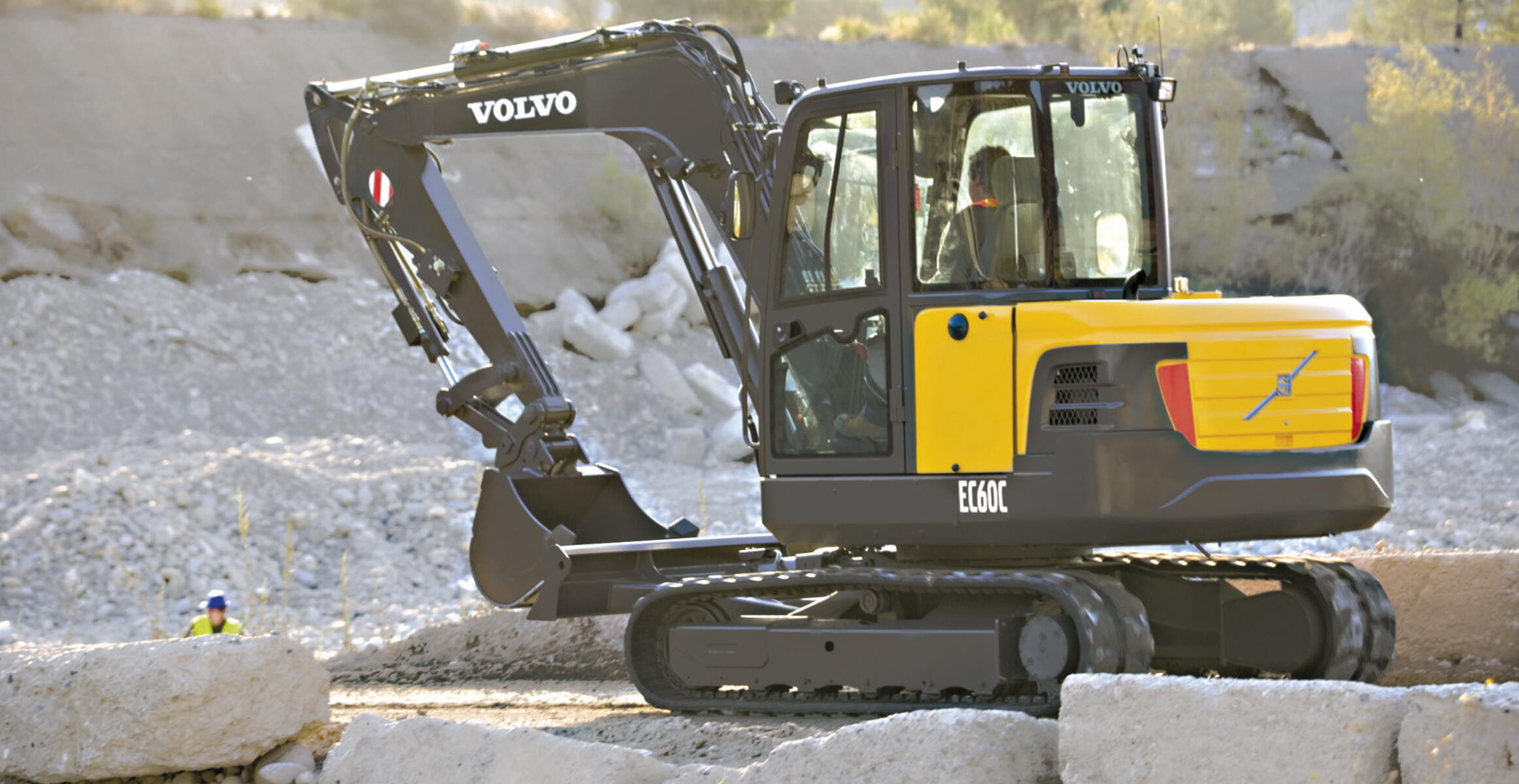

Quality design gives the EC60C features you would normally expect to find in a heavier machine. The X-shaped undercarriage distributes the load to the side members. This gives greater rigidity and strength without extra weight and reinforcement. The result? Better balanced performance.

Quality you know you can rely on

Active locking protects operators getting in or out of the cab. Simply raising the console automatically locks the equipment, offset and travel controls.

Safety know-how

When you are responsible for operating valuable equipment in difficult, sometimes dangerous conditions on site, there's no room for error. At Volvo, operator safety has always been a top priority, but we also build in benefits for the entire working environment.

All four sides of the contoured EC60C cab are fully glazed. A slim, single rear pillar ensures the view to the rear of the excavator in uninterrupted. Placing the machine or working in a confined area is easier and safer. In-cab noise levels are lower than the required European standard, rubber cab mounts reducing noise, heat and vibration reaching the operator.

Safety know-how

Keep your Volvo a Volvo!

Only with Volvo attachments do you get what you wanted when you bought a Volvo in the first place – maximum productivity and uptime. Volvo develops and offers a wide range of attachments which brings you unmatched flexibility and versatility, making it easy for you to develop job opportunities and to get the job done with increased productivity. Displayed attachments may not be available in all markets. Consult your dealer for specific availability.
