L20 Electric

Electric motor driveline (net)	22 kW
Electric motor working hydraulics (net)	14 kW
Standard bucket capacity	0.8 m³
Kinematics with attachment bracket design	P
Tipping load (ISO/DIS 14397-1)	3,050 kg
...at full turn	38 °
Breakout force	31 kN
Hydraulic lifting capacity, max	35 kN
Fork payload 80%	1,800 kg
Max. dump height	2,350 mm
Operating weight	4,550 kg
Maximum travel speed - Standard	20 km/h
Battery voltage	48 V
Battery capacity (standard)	33 kWh
Battery capacity (optional)	40 kWh
On board charging time 230 VAC 16A	< 6 h
On board charging time 400 VAC 16A	~5
Off board charging time 400 VAC 32A	~2
Indicative runtime (depending on application)	Up to 8 hours

Features & Benefits

Not only does the L20 Electric benefit communities as whole, it also creates new opportunities for your business.

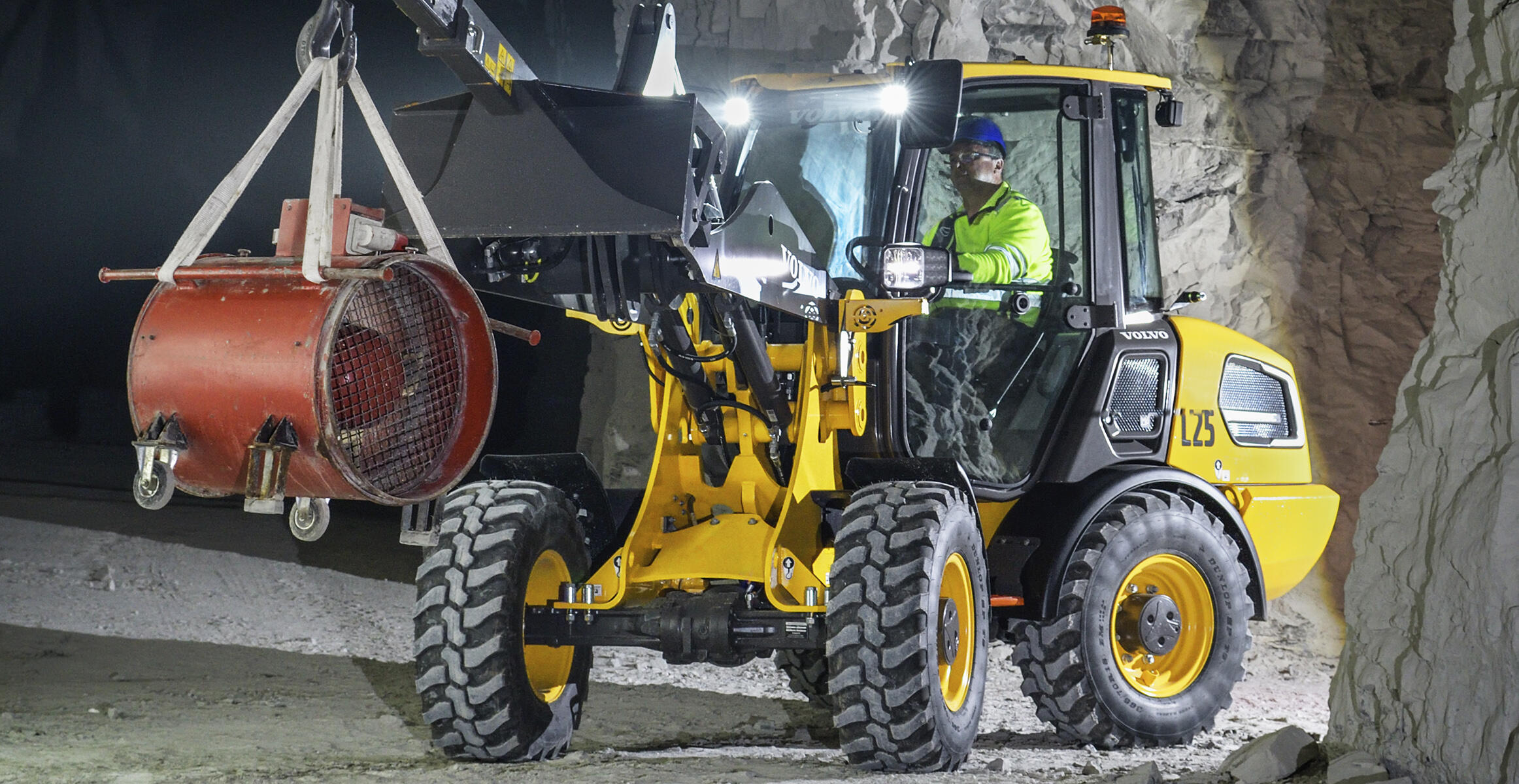

Take your business to new places

Unlock new opportunities for your business with the Volvo L20 Electric. The low noise level means you can work outside of standard hours and in noise sensitive environments. With zero-tailpipe emissions, it is also possible to work in low-carbon areas and indoor environments without the need for costly fume extraction systems.

The significant reduction in noise, vibration and heat, as well as no exhaust fumes, enhances the already industry-leading cab comfort.

Work well, live well

Experience all the industry-leading features you would expect from the world-class Volvo cab including wide entry, outstanding visibility and superior comfort levels. This is further enhanced by the significant reduction in noise, vibration and heat, as well as no exhaust fumes which the electric machine provides. The result is a cleaner and quieter jobsite, improving working conditions and communication for all jobsite staff.

Have it your way

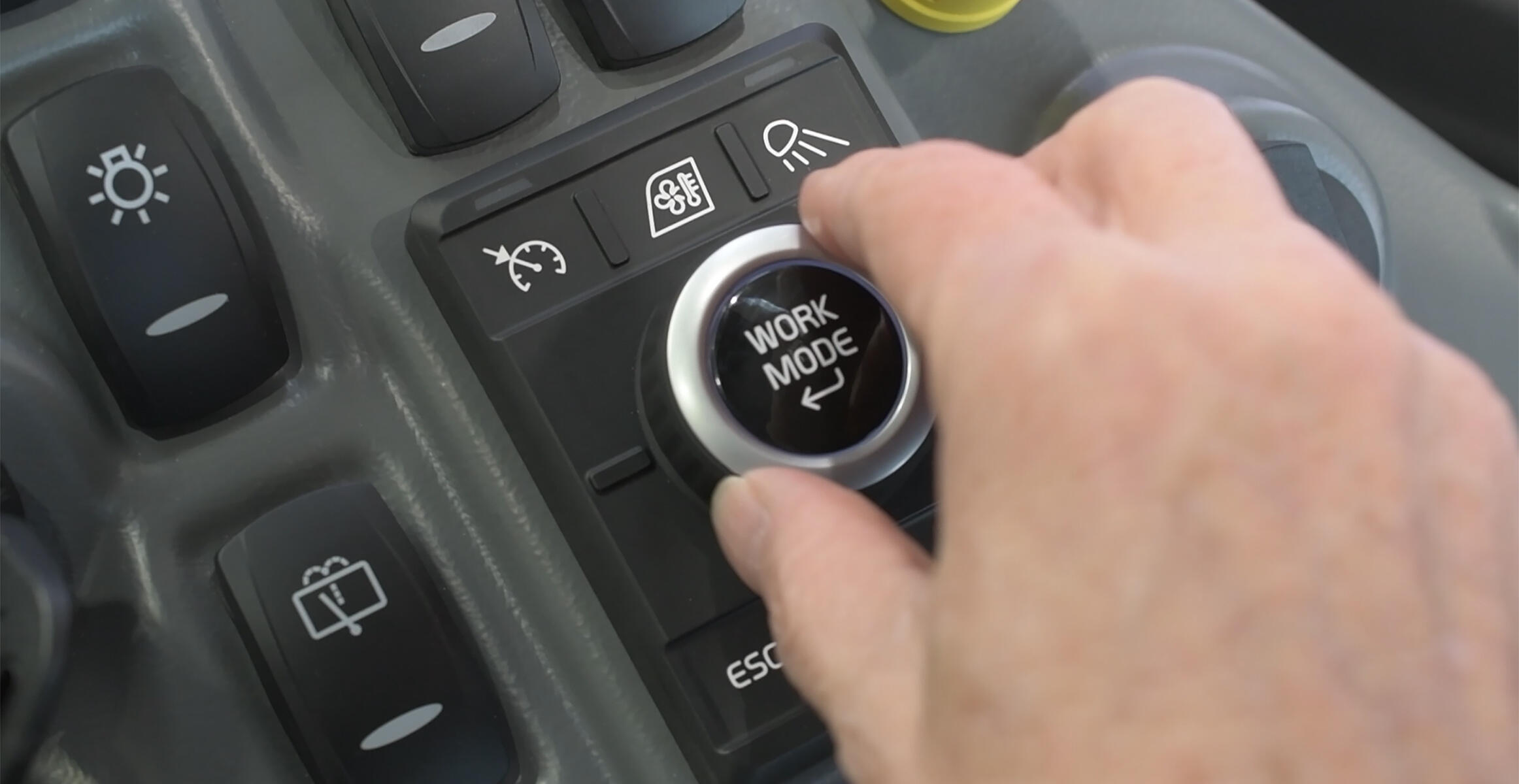

On top of ergonomic and intuitive controls, operators benefit from a range of customizable working modes which adapt the behavior of the L20 Electric according to the ground conditions, attachment being used and their personal preferences. Traction force, auxiliary hydraulic flow as well as sensitivity of the joystick and accelerator pedal are all easily adjusted from the user-friendly interface.

Electric parking brake

Enhance operating comfort thanks to the electric parking brake with hill hold functionality. The system is maintenance-free, saving you time and money.

The L20 Electric delivers 100% parallel movements, maximum traction as well as best off-road capability and stability.

Electrifying performance

The Volvo L20 Electric delivers all the performance you would expect from a wheel loader in this size class, but with less noise and zero-emissions. The Parallel linkage makes it especially suited to pallet handling and fork applications, offering 100% parallel movements for unrivalled stability of the load and unobstructed forwards visibility. Rigid planetary axles with 100% differential locks offer maximum traction and minimal tire wear, complemented by the articulating-oscillating joint for the best off-road capability and stability.

Volvo is here to support you on every step of your journey into the brave new world of electric machinery.

Uptime you can count on

Depending on the environment and task at hand the Volvo L20 Electric can deliver up to 6 hours of active work per charge. If you are considering whether an electric Volvo machine is the right fit for your operation just speak to your dealer to find out more – they can calculate the expected operating time and optimum charging solution based on your activities.

30% less maintenance

The fully electrified machine boosts uptime and reduces maintenance requirements by 30%, powered by two maintenance-free and water-cooled motors. When the machine is not working or moving the electric motors stop, eliminating unnecessary wear.

Industry-leading battery technology

The best machines deserve the best power solutions, which is precisely what you can expect in the L20 Electric, equipped with a lithium-ion 48v battery. Simply put, this is the best technology for the job, with a choice of either a 33 kW battery pack or 40 kW battery pack for a longer runtime. The battery is designed to last the full life expectancy of the machine, delivering up to 2500 full charge cycles.

Make the most of every charge

The fully electric driveline of the L20 Electric has an energy recovery function which keeps energy losses to a minimum, ensuring the highest levels of efficiency without any compromise on performance. Further energy savings are secured thanks to full LED lighting and auto-shutoff function on the electric motors.

Electric machine management application: your uptime partner

Remotely monitor the status of your Volvo L20 Electric Compact Wheel Loader with our Electric Machine Management Application, providing insight into battery level, charging status, geographic location and more.

Whatever your operational requirements you can choose from a range of multiple charging solutions.

Flexible charging solutions

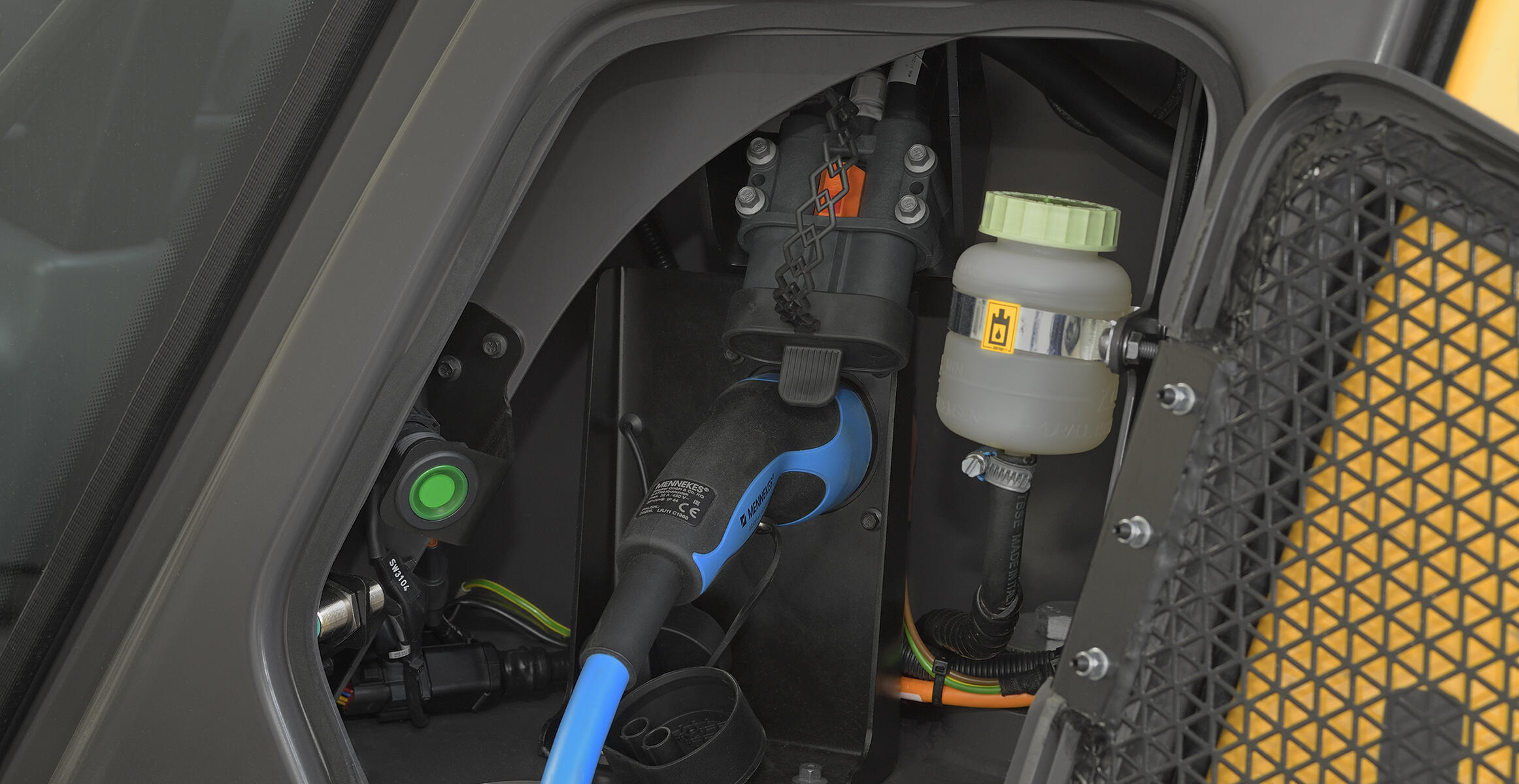

The Volvo L20 Electric comes with an integrated on-board charger which supplies a 6 kW power output to the batteries, allowing the machine to charge from 0 to 100% in under 6 hours. It comes with the necessary charging cable, plug and adapters to charge from a wall socket or wallbox. When projects and applications demand faster charging, a range of optional fast off-board chargers are available for both indoor and outdoor use. These will charge the machine from 0 to 100% in less than 2 hours.
