Large Crawler Excavators EC380D

37,800 - 41,100 kg Operating weight
215 kW Gross power
1.35 - 3 m³ Bucket capacity

Get productive with Volvo’s EC380D crawler excavator. Featuring increased engine power and improved hydraulics, these machines perform with greater digging force and shorter cycle times. Sustain optimum power and productivity day in and day out with Volvo.

Download the EC380D brochure, with all the details and specifications. (PDF, 2.6MB)

More specifications and competitor comparison

Capitalize on efficiency

Technical specifications for EC380D

Here are the key specifications for this product model. Want more details? Download the brochure or contact us.

Operating weight	37,800 - 41,100 kg
Gross power	215 kW
Engine speed at max engine torque	1,700 rpm
Bucket capacity	1.35 - 3 m³
Lifting capacity, along undercarriage	14,540 kg
...at reach / height	6 / 1.5 m
Max. digging reach	11,720 mm
Max. digging depth	8,150 mm
Breakout force, SAE J1179 (Normal)	198 kN
Breakout force, SAE J1179 (Boost)	215 kN
Tear out force, SAE J1179 (Normal)	141 kN
Tear out force, SAE J1179 (Boost)	154 kN
Overall width feet inches	3,340 mm
Tail swing radius	3,800 mm

Based on machine configuration: Boom 6.45m; Arm 3.9m; Shoe 600mm; CWT 6 500kg

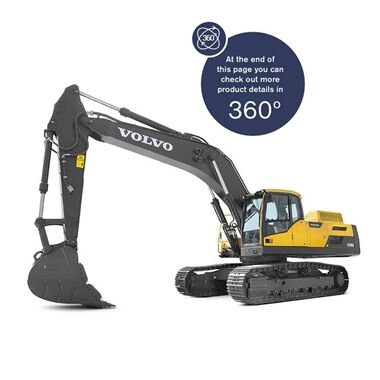

Image illustration only. Production machines may differ in appearance and features vary between markets and models. Check the availability of this product and service with your Distributor.

More specifications and competitor comparison

Download the EC380D brochure, with all the details and specifications. (PDF, 2.6MB)

Features & Benefits

Volvo’s D13 engine, enhanced hydraulic system and well matched components improve fuel efficiency by *8-11%. *compared to B-series model

Capitalize on efficiency

Fuel efficiency is at the centre of Volvo’s machines. The EC380D and EC480D feature Volvo’s new D13 engine, improved hydraulics and our unique ECO mode for superior fuel efficiency. Reduce your fuel consumption, save money and reach new levels of efficiency with Volvo.

Premium serviceability from large, wide opening doors and grouped, ground level filters and greasing points.

Intelligent serviceability

Volvo machines feature built in serviceability for maximum machine uptime. Benefit from safe and convenient maintenance access and reduced service time. Enjoy maintenance made easy with Volvo.

Perform at a higher level with increased digging power and faster cycle times for greater productivity.

Powering your productivity

Get productive with Volvo’s EC380D and EC480D. Featuring increased engine power and improved hydraulics, these machines perform with greater digging force and shorter cycle times. Sustain optimum power and productivity day in and day out with Volvo.

Enjoy all-round visibility and comfort in Volvo’s industry-leading cab which features an adjustable seat and ample space.

See it all with Volvo

See more and do more from Volvo’s spacious cab which provides operators with a superior working environment for reduced fatigue. Featuring built in comfort, all-round visibility and easy to access controls for increased productivity. Step inside and see the results for yourself.

For improved durability and reliability in demanding terrain.

It won’t let you down

If you’re looking for strong and durable performance then look no further. These machines excel in demanding terrain. Featuring reinforced welding and heavy-duty protection, no job is too tough for Volvo’s reliable machines – rest assured that the work will get done.

Keep your Volvo a Volvo!

Only with Volvo attachments do you get what you wanted when you bought a Volvo in the first place – maximum productivity and uptime. Volvo develops and offers a wide range of attachments which brings you unmatched flexibility and versatility, making it easy for you to develop job opportunities and to get the job done with increased productivity. Displayed attachments may not be available in all markets. Consult your dealer for specific availability.

Buckets

General purpose bucket - Universal cut

Heavy duty bucket - Universal cut

Extreme duty bucket - Universal cut

Heavy duty bucket - Standard cut

Quick Couplers

Universal quick coupler with Front-Pin Lock

S-type quick coupler

Size: 937.8KB | Resolution: 2324 x 1200 Download (937.8KB JPG)
Size: 753.8KB | Resolution: 2324 x 1200 Download (753.8KB JPG)
Size: 1MB | Resolution: 2324 x 1200 Download (1MB JPG)
Size: 500.9KB | Resolution: 2324 x 1200 Download (500.9KB JPG)
Size: 534.9KB | Resolution: 2324 x 1200 Download (534.9KB JPG)
Size: 948.2KB | Resolution: 2324 x 1200 Download (948.2KB JPG)
Volvo D-series Series Crawler Excavators Launch video (LRM)

Leave the big jobs to the heavy equipment machines you can rely on. Get top hydraulic excavator performance from the Volvo D-series excavators. Bring on the heavy-duty applications in a wide range of demanding conditions, including mining, quarry work, civil construction, mass excavation, hauler truck loading, trenching, large-scale road building, pipe lifting and more. The Volvo D-series excavators help you to handle more tons per hour, large buckets, smooth control, leading fuel efficiency and all-day comfortable operation.
Volvo D-Series Crawler Excavators Walkaround video

Introductional video of the new Volvo Crawler Excavators D-Series EC340D EC380D EC480D Find out more: https://www.volvoce.com
