The first in a new range of electric compact wheel loaders

Electric Compact Wheel Loader L25 Electric

4,900 - 5,270 kg Operating weight
0.9 m³ Standard bucket capacity
40 kWh Battery capacity

At Volvo we recognize that a sustainable business is a successful business, and we are delighted to introduce the Volvo L25 Electric, the first in a new range of electric compact wheel loaders. The Volvo L25 Electric combines the proven Volvo compact wheel loader platform with battery power,... Read more

The first in a new range of electric compact wheel loaders

Technical specifications for L25 Electric

Electric motor driveline (net)	22 kW
Electric motor working hydraulics (net)	14 kW
Standard bucket capacity	0.9 m³
Kinematics with attachment bracket design	Z
Tipping load (ISO/DIS 14397-1)	3,350 kg
...at full turn	38 degree
Breakout force	54.5 kN
Hydraulic lifting capacity, max	55 kN
Fork payload 80%	2,000 kg
Max. dump height	2,495 mm
Operating weight	4,900 - 5,270 kg
Maximum travel speed - Standard	20 km/h
Battery voltage	48 V
Battery capacity	40 kWh
On board charging time 400 VAC 16A	~6
Off board charging time 400 VAC 32A	~2
Indicative runtime (depending on application)	Up to 8 hours

Based on L25 Electric with Z-Kinematics. P-Kinematics available: please download the brochure for more details.

Features & Benefits

The L25 Electric creates new commercial opportunities for your business.

WORK ANYTIME, ANYWHERE

Not only does the Volvo L25 Electric benefit communities as a whole, it also creates new commercial opportunities for your business, particularly when working in environmentally sensitive areas. The low noise level means the machine can operate anytime, anywhere – even at night in populated areas. Zero emissions also mean there is no need for costly fume extraction systems when working indoors.

Industry-leading cab comfort is further enhanced thanks to a dramatic reduction in noise, vibration and heat, and no exhaust fumes.

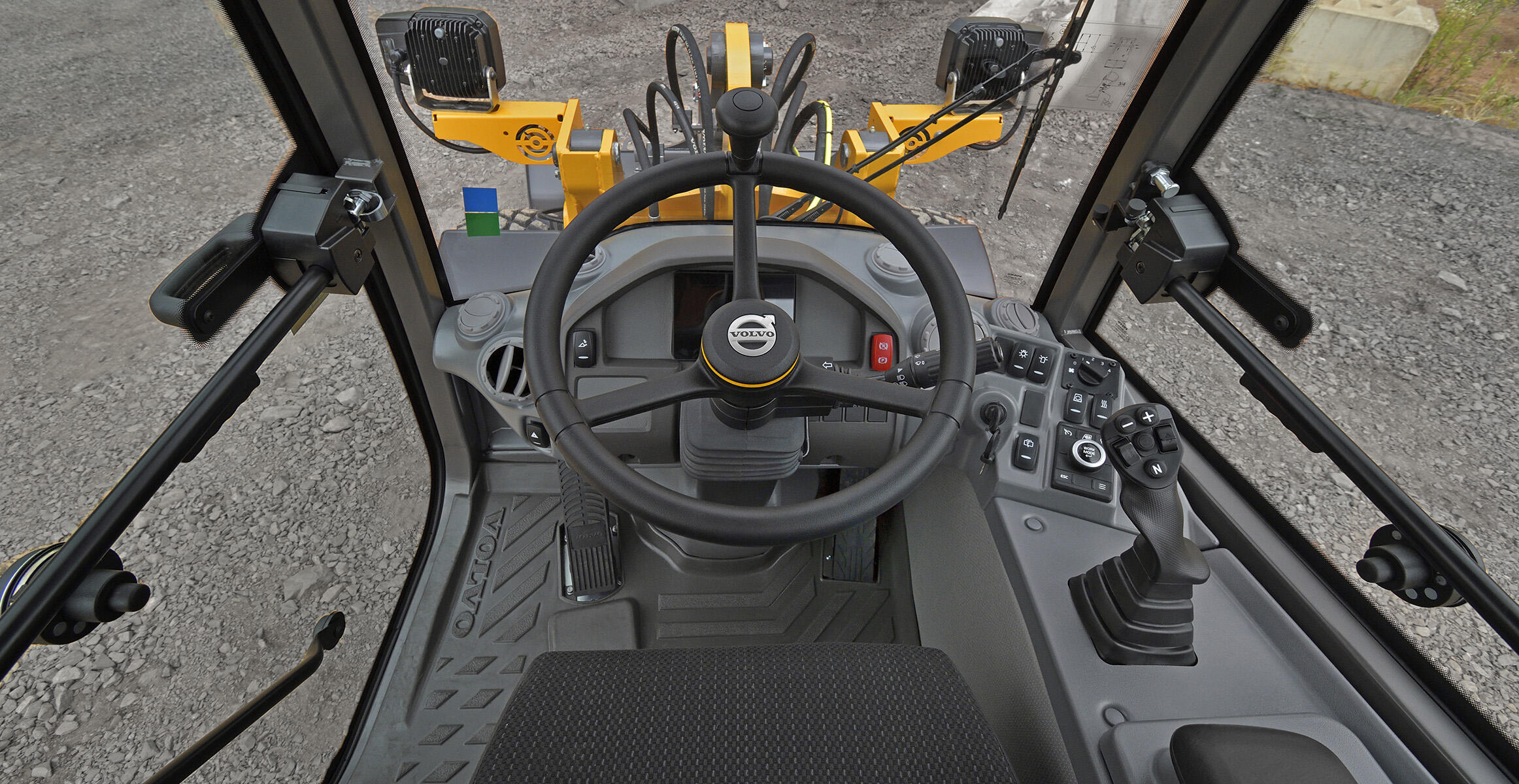

A NEW LEVEL OF WELLNESS

Operators will experience the world-class cab for which Volvo is renowned, including wide entry, superior visibility and comfort levels, further enhanced thanks to a dramatic reduction in noise, vibration and heat, and no exhaust fumes. This all contributes towards a quieter and cleaner jobsite, improving communication and working conditions for all personnel.

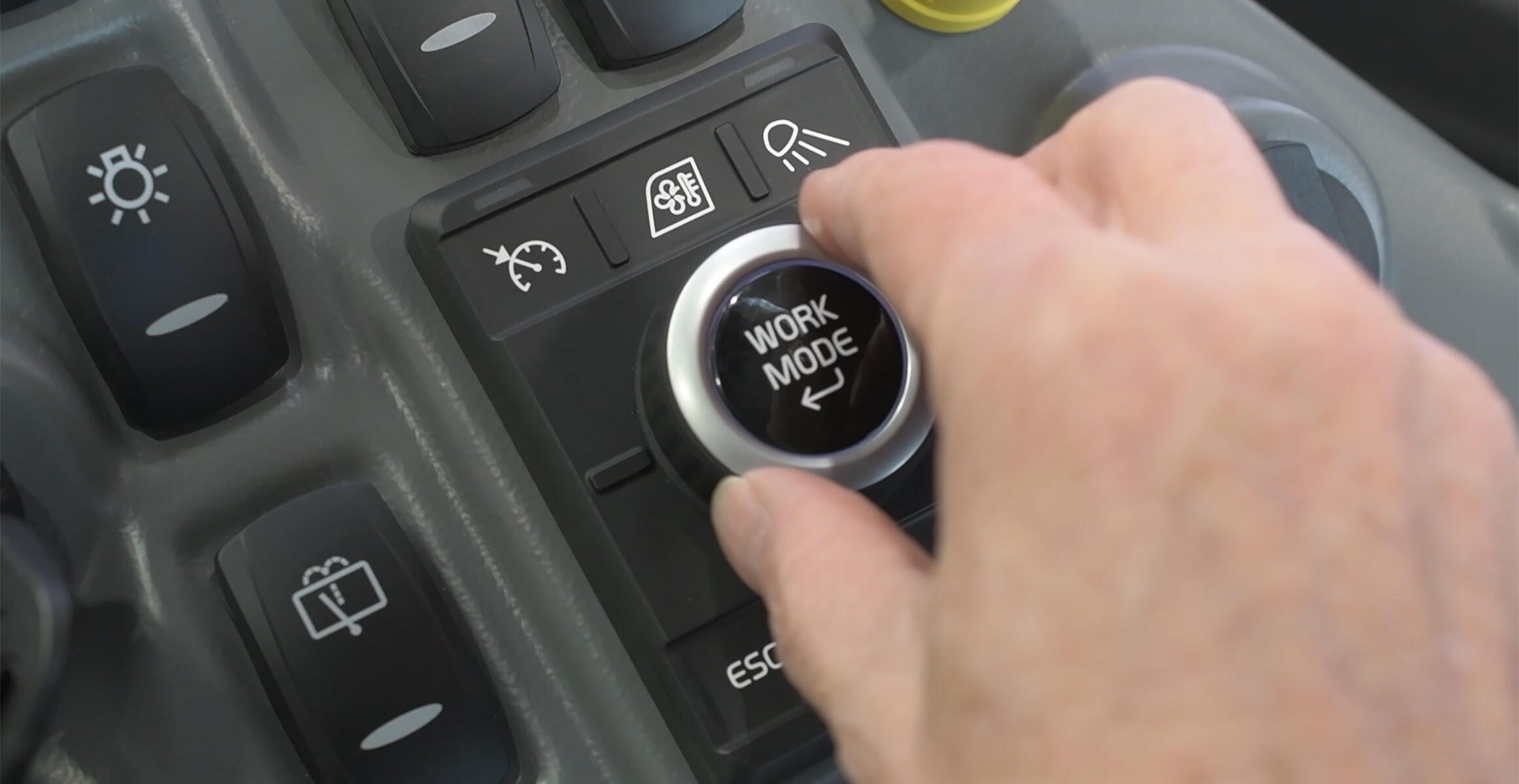

TAILOR IT YOUR WAY

On top of ergonomic and intuitive controls, operators benefit from a range of customizable working modes to adapt the behavior of the L25 Electric according to the ground conditions, attachment at hand and their personal preferences. Hit play to see how easy adjusting traction force, hydraulic flow as well as sensitivity of the joystick and accelerator pedal is.

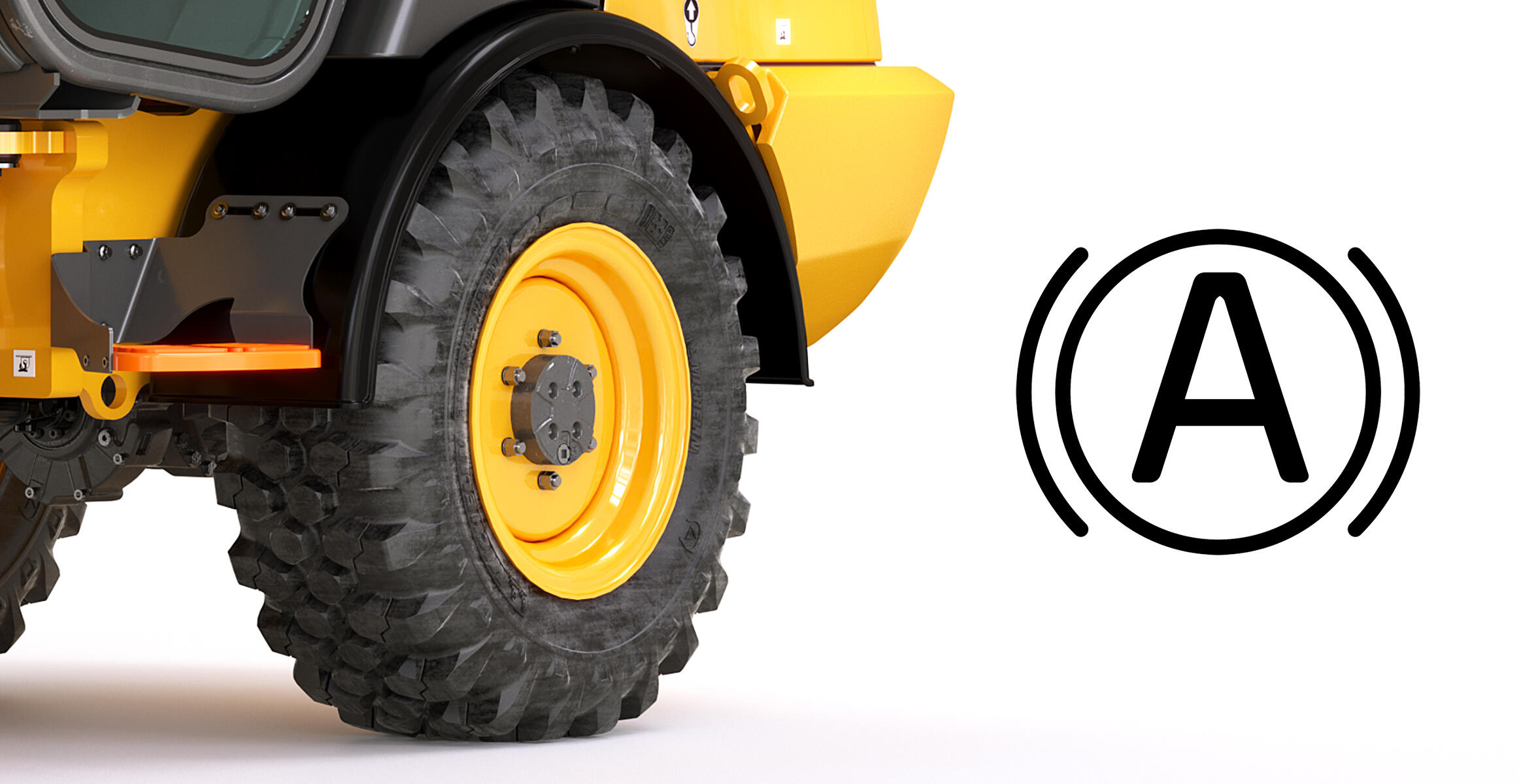

ELECTRIC PARKING BRAKE

Enhance operating comfort thanks to the electric parking brake with hill hold functionality. The system is maintenance-free, saving you time and money.

The L25 Electric delivers outstanding lifting and breakout forces, maximum traction as well as best off-road capability and stability.

PROVEN PERFORMANCE

The Volvo L25 Electric delivers all the performance you would expect from a wheel loader in this size class, but with less noise and zero-emissions. The machine delivers outstanding lifting and breakout forces, maximum traction as well as unrivalled off-road capability and stability.

Enter the brave new world of electric machinery with complete confidence thanks to a range of solutions and services from Volvo.

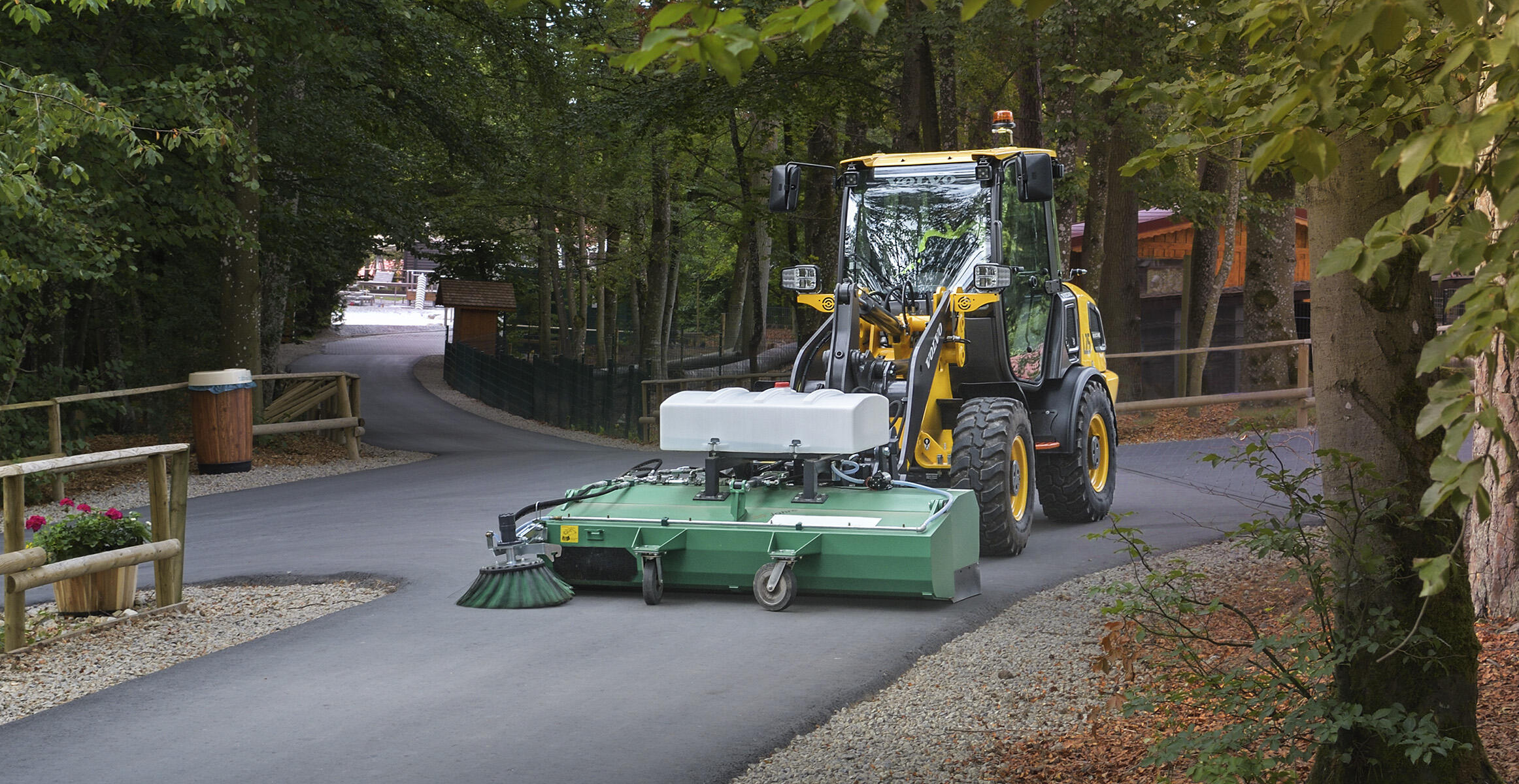

UPTIME YOU CAN COUNT ON

The Volvo L25 Electric can deliver up to 6 hours of active work per charge depending on the environment and task at hand. To find out if an electric Volvo machine is the right fit for your activities, just talk to your dealer, who can help you calculate operating time and the optimum charging solution based on your operation.

30% LESS MAINTENANCE

Give your uptime a boost and reduce maintenance requirements by 30% thanks to the fully electrified machine, powered by two maintenance-free and water-cooled motors. What’s more, the electric motors stop when the machine is not working or moving, eliminating unnecessary wear.

THE BEST BATTERY TECHNOLOGY

The best machines deserve the best power solutions, which is precisely what you can expect in the L25 Electric, equipped with a lithium-ion 48v battery. Simply put, this is the best technology for the job with a capacity of 40kW. What’s more, the battery is designed to deliver up to 2500 full charge cycles, accounting for the full life expectancy of the machine.

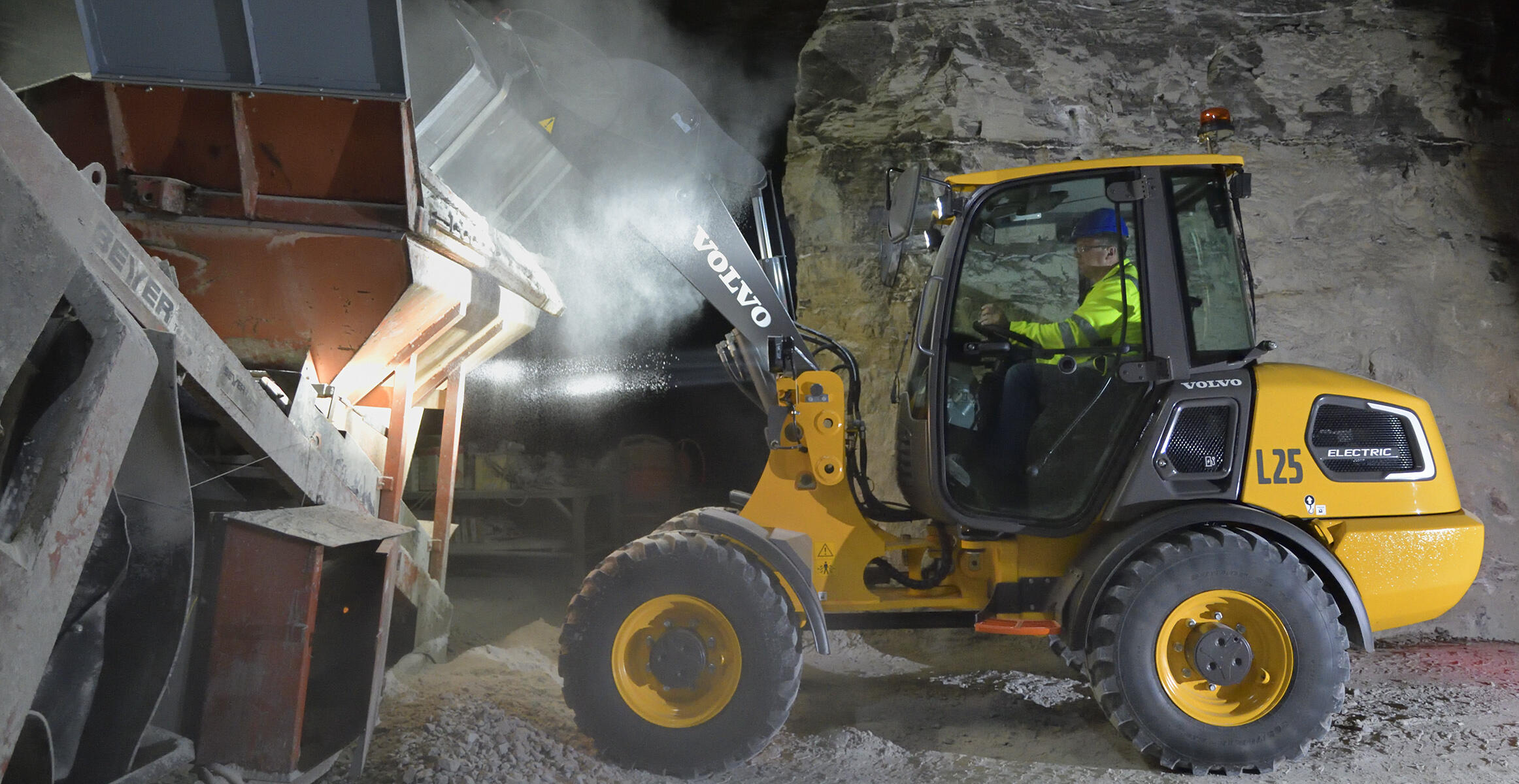

SUPERCHARGED EFFICIENCY

The fully electric driveline of the L25 Electric has an energy recovery function which keeps energy losses to a minimum, ensuring the highest levels of efficiency without any compromise on performance. Further energy savings are secured thanks to full LED lighting and auto-shutoff function on the electric motors.

Choose between multiple charging solutions depending on your operational requirements.

CHARGE ANYWHERE

The Volvo L25 Electric comes with an integrated on-board charger. It supplies a 6kW power output to the batteries, allowing the machine to charge from 0 to 100% in under 6 hours, and comes with the necessary charging cable, plug and adapters to charge from a wall socket or wallbox. When projects and applications demand faster charging, a range of optional fast off-board chargers are available for both indoor and outdoor use. These will charge the machine from 0 to 100% in less than 2 hours.

Keep your Volvo a Volvo!

Only with Volvo attachments do you get what you wanted when you bought a Volvo in the first place – maximum productivity and uptime. Volvo develops and offers a wide range of attachments which brings you unmatched flexibility and versatility, making it easy for you to develop job opportunities and to get the job done with increased productivity. Displayed attachments may not be available in all markets. Consult your dealer for specific availability.
