Technical specifications for ECR25 Electric

Operating weight	2,680 - 2,780 kg
Maximum digging depth (short/long arm)	2,672 - 2,965 mm
Maximum dump height (short/long arm)	2,784 - 2,957 mm
Travel speed, low / high	2.4 / 4.5 km/h
Breakout force	22.3 kN
Tear out force (arm breakout force) (short/long arm)	11.8 - 15 kN
Overall width	1,550 mm
Overall length (short/long arm)	4,008 - 3,876 mm
Main hydraulic pump max. flow	58 l/min
Electric motor (peak)	18 kW
Battery voltage	48 V
Battery capacity	20 kWh
Indicative runtime (depending on application)	Up to 4 hours
On board charging time 230 VAC 16A	~ 5 h
Off board charging time 400 VAC 32A	~ 50 min for 80% charge
Sound pressure level (LpA) at operator's position	74 dB
Sound power level (LWA) around the machine	84 dB

Images for illustration purposes only. Production machines may differ in appearance and features; they may vary between markets and models. Specifications may change without prior notice. No warranty is provided until the machine has been purchased.

Features & Benefits

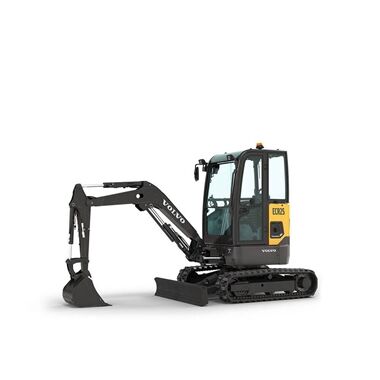

Enjoy a quieter working day (or night) with the new Volvo ECR25 Electric compact excavator – because our towns and cities are noisy enough already.

Add silence

Silence. Just the word envelops you in a sense of serenity. And now you and those around you can experience what happens when you start to add silence to a compact excavator. The new Volvo ECR25 Electric, helping build the world we all want to live in.

At home in the city

Our cities are becoming busier, with increasing demands to meet our infrastructure needs. The lower noise levels that the ECR25 Electric offers enable you to work anytime, anywhere – even at night in populated areas. This can lessen the disturbance inner city work can cause and reduce congestion at peak times, all the while increasing your efficiency. It also creates a more pleasant working environment for you and your colleagues with whom you can clearly communicate with whilst operating – allowing them to guide you whilst remaining at a safe working distance from the machine.

Unlock new prospects for your business with the zero emission Volvo ECR25 Electric compact excavator.

Add clean

You can find a compact excavator on every street corner. Literally. And whilst this demonstrates what a useful tool they are, it also puts them in close proximity with those around. With the Volvo ECR25 Electric you combine the all-round abilities of a compact excavator with the benefits of zero emission electric power. The world will thank you for it.

Go where others can't

Working in confined spaces requires confidence and controllability – the ECR25 Electric has the precise and responsive hydraulic system required when such accuracy is key, meaning it can do the same job as a diesel machine but without leaving a trace. It also features a short-radius compact design making it perfect for applications like utilities, but thanks to zero emissions, also indoors in jobs such as basement groundworks and building demolition. Back outdoors, and as restricted access low emission zones become ever more common, the go-anywhere ECR25 Electric is the perfect fit. This opens up new business opportunities which in turn helps optimize utilization – great news for both end users and rental companies.

Experience the industry’s foremost premium cab with the new Volvo ECR25 Electric compact excavator, making excessive vibrations, noise and heat a thing of the past.

Add comfort

Comfort can mean many things to many people, but one constant is the reassurance it gives. For Volvo, comfort has always meant caring for the operator, and the ECR25 Electric takes this to a new level – so the operator can focus on the task in hand.

At the heart of operations

The ECR25 Electric takes the proven credentials of the industry's foremost cab – accessibility, visibility and class leading ergonomics – and then adds a substantial reduction in noise, vibration and heat, ensuring long lasting comfort and productivity. The lack of an exhaust is also noticeable, removing the associated fumes and minimising the dust that they can generate.
