Medium Crawler Excavators EC210

20,700 - 21,300 kg Operating weight
101 kW Gross power
0.92 - 1.1 m³ Bucket capacity

Download the EC210 brochure, with all the details and specifications. (PDF, 1.2MB)

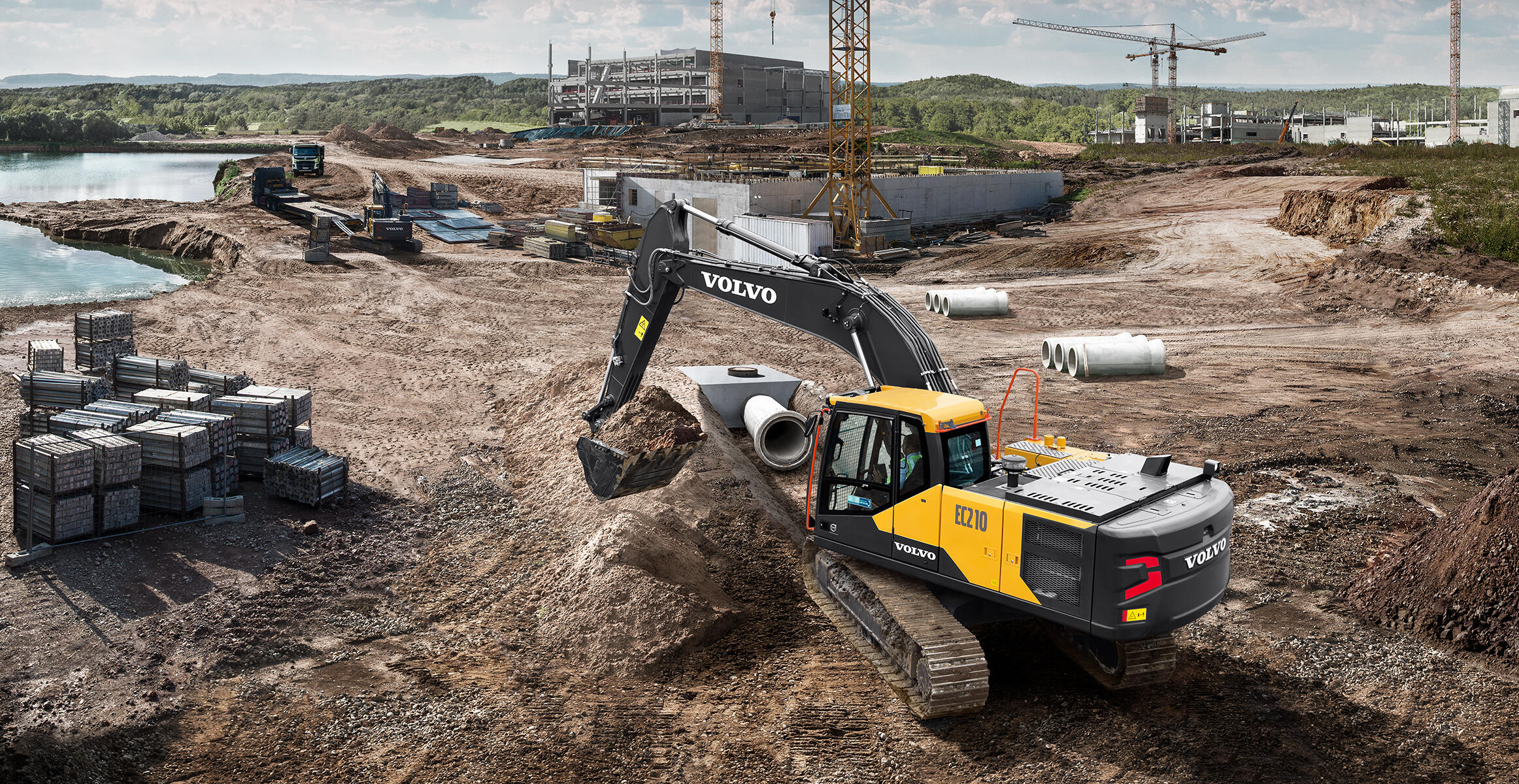

A versatile, powerful and fuel efficient 21-tonne crawler excavator

The EC210 is a 21-tonne crawler excavator designed for high performance across a range of general construction and medium to heavy duty applications. This versatile Volvo machine delivers up to 10% improvement in fuel efficiency compared to the previous generation, with no compromise on power, performance and productivity. With low total cost of ownership, fast payback and a high resale value, the EC210 is a perfect fit for rental and utilization across road construction, urban infrastructures, waste management, aggregates handling in quarry and mining, irrigation, ports and bulk material handling.

Technical specifications for EC210

Here are the key specifications for this product model. Want more details? Download the brochure or contact us.

Operating weight	20,700 - 21,300 kg
Gross power	101 kW
...at engine speed	2,000 rpm
Bucket capacity	0.92 - 1.1 m³
Lifting capacity, along undercarriage	5,160 kg
...at reach / height	6 / 1.5 m
Max. digging reach	9,605 mm
Max. digging depth	6,380 mm
Breakout force, SAE J1179 (Normal)	113 kN
Tear out force, SAE J1179 (Normal)	99 kN
Overall width	2,500 mm
Tail swing radius	2,880 mm

Image illustration only. Production machines may differ in appearance and features vary between markets and models.

Download the EC210 brochure, with all the details and specifications. (PDF, 1.2MB)

Features & Benefits

A powerful, productive and fuel-efficient crawler excavator, the EC210 has been built to perform dependably in the most challenging environments.

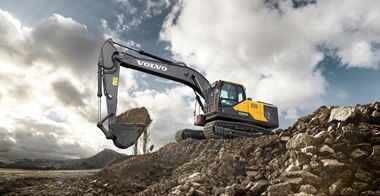

Powerful, fast and efficient

With its proven advanced technology combined with unique positive hydraulics, the powerful engine delivers high torque at a low RPM, for the ultimate performance and fuel efficiency. Benefiting from decades of experience, it delivers superior quality, reliability and durability and has the advantage of being able to work at high altitudes of 2,500m and -15°C with a cold start kit.

Unique hydraulics system

Experience high controllability and a fast response time thanks to Volvo’s proven positive hydraulics. The electro-hydraulic system and Main Control Valve uses intelligent technology to control on-demand flow for high productivity, high-digging capacity and excellent fuel efficiency. Not only is the hydraulic flow proportional to the secondary servo pressure, but thanks to the electro-hydraulic control design, the machine response is fast and smooth, and troubleshooting is quicker and easier than ever. What’s more, the advanced ECO mode reduces power loss to enhance fuel efficiency.

Efficient work modes

Optimum fuel efficiency and versatility is assured thanks to the crawler excavator’s unique 10 working modes for effective cycle time. Operators can select the best mode to suit the application they are working in, choosing from Idle (I), Fine (F), General (G), Heavy (H), and Power Max (P) mode. This added flexibility means the machine can easily adapt to on-site working conditions for versatility and improved fuel efficiency. What is more, Volvo’s intelligent ECO mode increases fuel efficiency without any loss of performance.

The ergonomic air-conditioned cab allows operators to perform their very best all day long, while reducing stress and fatigue.

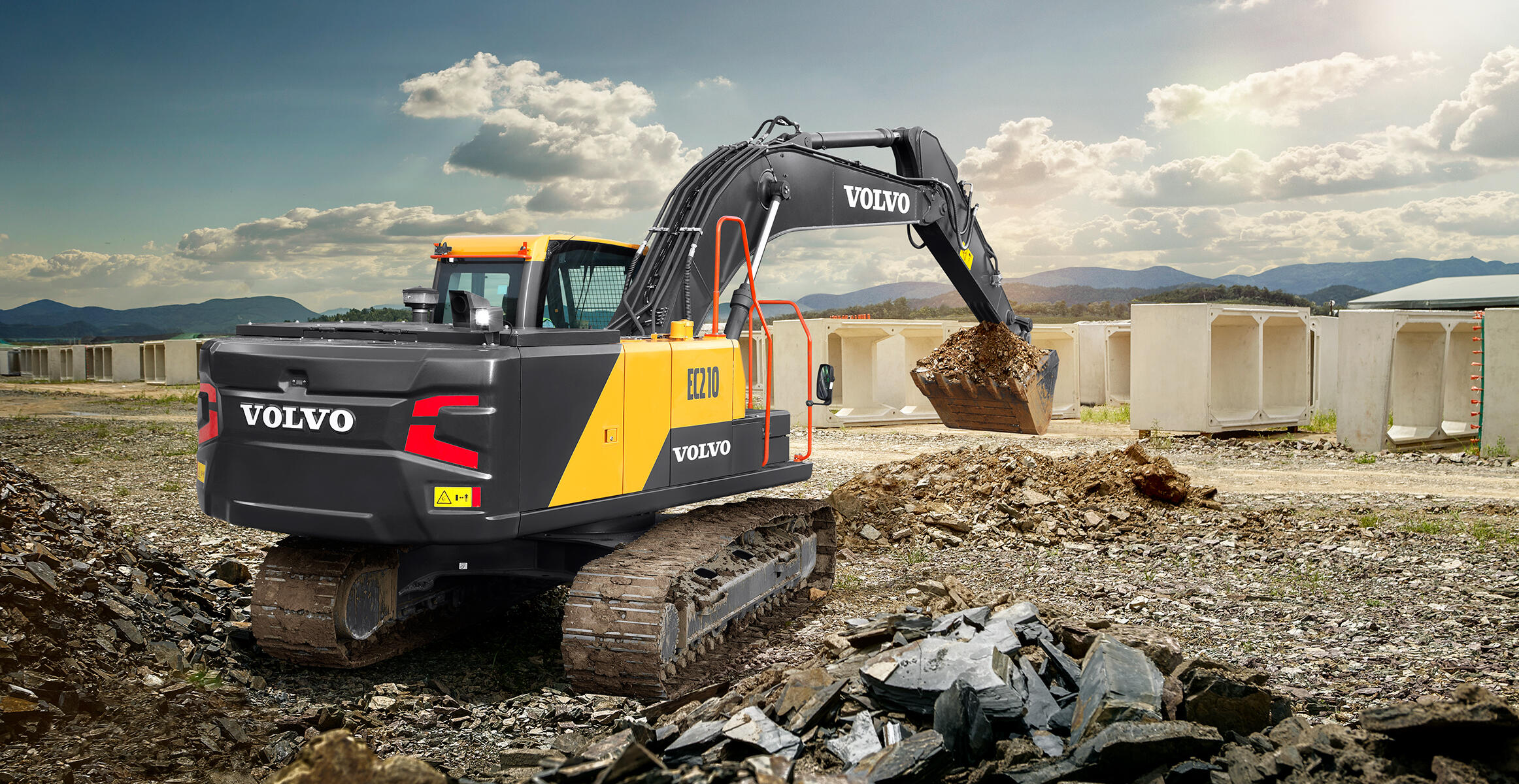

Comfort all day long

The EC210 is equipped with a spacious and safe operator environment offering enhanced all-around visibility, an adjustable seat, ergonomic controls and air-conditioning. Furthermore, the improved cab interior features a new colored LCD monitor. Machine status information including fuel consumption details and service intervals alerts make it easier than ever to get the information you need. The large anti-glare tiltable screen helps to quickly and easily navigate required data in a user-friendly way. With the click of a few buttons, operators can adjust their settings to their preferred selection of modes – helping to make a day’s work even more productive and enjoyable. Service alerts and error codes provide peace of mind, helping in the early diagnosis of any issues and reducing maintenance cost.

Operators have the power to take on any job with speed and ease in the EC210, as it is compatible with a range of buckets, breakers and piping options.

A versatile machine

It is easy to pre-set and adjust hydraulic flow from the monitor inside the cab with the password-protected management system, providing storage for up to 20 different attachments. What is more, you can choose between one- or two-pump flow to maximize profits and productivity. The EC210 can also be equipped with the Volvo hydraulic breaker, easily adjusted to suit application needs and built to break even the toughest materials. With consistent power and high breaking force, you can be assured of maximum impact and durability.

Whether working inside or on the machine, the highest levels of safety have been considered in every design detail of the EC210.

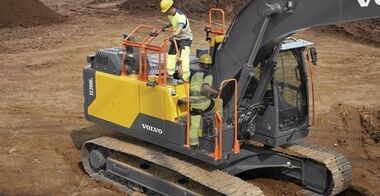

All-round safety

Bolted anti-slip plates, smartly positioned guarding and handrails, 3-point right-hand side access to the superstructure, plus unrivalled visibility, boom accumulator and effective lighting ensure the highest levels of safety when servicing or operating the machine.

Long service intervals, a 20% reduction in hydraulic and engine oil requirements, plus ground level access to grouped filters help cut maintenance time and enhance machine uptime.

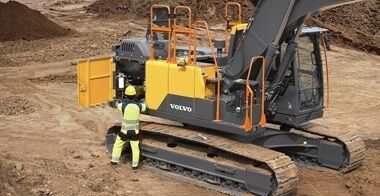

More uptime

The EC210 has been built to operate for longer between services, but when it is time for a check-up, servicing is made easy and accessible, thanks to features such as grouped filters, ground level service access, anti-slip plates and centralized lubrication points. The upper structure can be accessed with safety and confidence thanks to the bright 3-point right-hand side access. Engine oil/filter and fuel filters need changing every 500 hours, while the swing gearbox oil and service filter hydraulic oil needs changing every 1,000 hours and the hydraulic oil return filter needs replacing every 2,000 hours. The result is extended service intervals for enhanced machine availability.

Keep your Volvo a Volvo!

Only with Volvo attachments do you get what you wanted when you bought a Volvo in the first place – maximum productivity and uptime. Volvo develops and offers a wide range of attachments which brings you unmatched flexibility and versatility, making it easy for you to develop job opportunities and to get the job done with increased productivity. Displayed attachments may not be available in all markets. Consult your dealer for specific availability.
