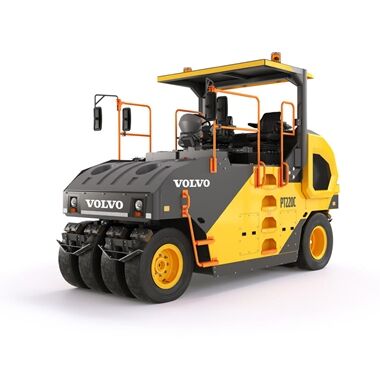

PT220C | Compactors | Overview | Volvo Construction Equipment

Operating weight (with Sunshade)	10,500 kg
Drum or rolling width	1,980 mm
Rated engine power	74 kW
Overall length	5,060 mm
Overall width	2,270 mm
Overall height	3,430 mm

Features & Benefits

Featuring the fuel-efficient and reliable VECV engine, the PT220C is a pneumatic roller designed to deliver the highest levels of quality and performance to your compaction projects. Offering fast cycle times, wide tire coverage, adjustable water settings and tonnes of versatility this is a compaction machine ready to deliver outstanding mat results.

POWERED TO PERFORM

The fuel efficient and reliable VECV engine helps to secure the highest levels of performance and a low cost of operation. Both the engine and machine can be serviced by your Volvo dealer, providing a one-stop-shop maintenance solution for further convenience and reduced downtime.

SMOOTHLY DOES IT

Achieve fast cycle times and optimum output with the two-speed, and maintenance free, hydrostatic transmission which enables smooth transition between forward and reverse without scuffing the material surface. The hydraulic steering system provides the ultimate in precision for maximum surface coverage.

THE KNEAD YOU NEED

Experience the perfect kneading effect required to achieve uniform material density in no time at all. Four wide front and rear tires overlap by 50mm to provide full width coverage, while the isostatic levelling cylinders secure consistent contact with the material for excellent surface sealing.

PRODUCTIVITY ON TAP

The pressurized, rust-proof 550-liter LDPE water system features an adjustable flowrate which can be used by the operator as needed to help eliminate material build up on the tire surface, maintain mat surface temperature and reduce water refills. The water storage tank level indicator is clearly in view, allowing the operator to easily monitor the water level.

TONNES OF VERSATILITY

Take on a multitude of tasks by using different materials as ballast to easily adjust the maximum operating weight of the PT220C. What’s more, water can also be used as ballast thanks to a separate dedicated water compartment, which is in addition to the standard ballast compartment.

The PT220C provides a first-class working environment helping operators to produce outstanding results shift after shift, day after day. Features including a new 4.3” display, electro-proportional joystick and heavy-duty sunshade keep operators safe, comfortable and working at their best.

TAKE  CONTROL

Unlock the full potential of your machine with the new 4.3” display. Available information via the display includes travel speed, trip meter, total working hours, engine rpm and high coolant temperature indicator. Service notifications as well as information regarding battery condition and DEF/fuel levels help to maximize uptime.

PRECISION OPERATION

The electro-proportional joystick contributes towards the smooth and precise machine control, enhancing operator comfort and productivity.

COMFORTABLY PRODUCTIVE

Operator comfort is kept to a maximum with features including a sliding console, outstanding visibility, suspension on both seats and USB charger.

OPERATOR PROTECTION

From the safety of the platform operators can enjoy comfortable and productive work shifts. The heavy-duty steel sunshade not only keeps operators sheltered from the sun, but also provides additional protection in the unlikely event of a machine roll-over and can be easily removed for transportation. Additional safety features include the operator seatbelt and seat presence indicator on the display.

Stay working harder for longer in the PT220C. Simple servicing, removable water nozzles and screens and easily adjustable tire pressures all help to keep uptime to a maximum, and all with the full support and back-up of the Volvo dealer network.

STRAIGHTFORWARD SERVICING

Keep uptime to a maximum and reduce time spent on maintenance with easily accessed ground-level maintenance points and wide engine hood opening, as well as a bolt-on hydraulic tank to facilitate easy cleaning.

MANAGE THE PRESSURE

Tire contact can be optimized by the easily adjusted tire pressure, which is managed from a conveniently located central point, helping to achieve target compaction in fewer passes. Optional in-cab tire pressure adjustment allows operators to adjust tire pressure on-the-move at the press of a button.

EASILY REMOVED NOZZLES AND SCREENS

Water nozzles and screens can be quickly removed, cleaned or replaced. Easily removable filters sit behind each of the eight spray nozzles to ensure a fine mist.

ROUND THE CLOCK SUPPORT

Get your machine back to work without delay with 24/7 access to the Volvo dealer support network. Simply call the support number, which will automatically direct you to your local dealership, where a dedicated team will take care of your individual needs.

RETAIN VOLVO QUALITY

Only by using Genuine Volvo Parts can you be sure that your machine retains its renowned Volvo quality. Every part is vital for uptime and Genuine Volvo Parts are extensively tested and approved to provide the same levels of component quality as the day you bought your machine.

Asphalt Compactors PT220C

Outstanding rolling results

Technical specifications for PT220C

Features & Benefits
