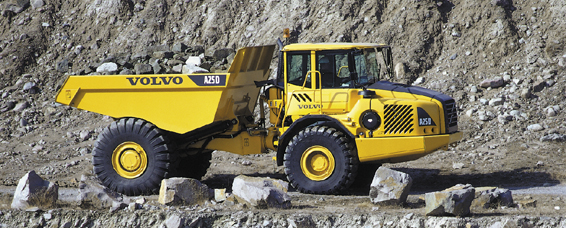

Volvo A25D 4x4 with D9 engine

The D10 engine was in November 2003 replaced by the D9 engine in A25D and A30D. The New D9 engine is a 9,4 litre engine (to be compared with 9,6 litre on the D10) derived from the same cutting edge technology as the well-proven D12 used in A35D and A40D. The D9 engine met US (EPA) step 2, California (CARB) step 2 and Europe (EU) step 2. With this new engine the products were prepared for coming emission standards and requirements for Tier 3.

In order to meet the Tier 3 / Stage IIIA legislation concerning exhaust emissions, a new version of the Volvo D9 engine was developed for A25D–A30D.

Volvo Advanced Combustions Technology, V-ACT, was introduced on the new D9 engine. The new D9B engine met US (EPA) Tier 3, California (CARB) Tier 3 and Europe (EU) stage IIIA emission standards.
The D9B engine was implemented on the US market in November 2005 and the EU market started from January 2006. A Tier 2/Step II compliant D9A engine continued to be available for selected markets.

A25D 4x4	2006 specifications
Engine	Volvo D9B AB E3
Rated output at, r/s (r/min)	35 (2 100)
...SAE J1349 gross, kW (hp)	224 (305)
...SAE J1349 net, kW (hp)	223 (303)
Max torque at, r/s (r/min)	20 (1 200)
...SAE J1349 gross, Nm	1 700
...SAE J1349 net, Nm	1 689
Max speed, km/h	53
Load capacity SAE struck, m3	9,5
Load capacity SAE 2:1 heap, m3	13,0
Payload, t	24,0
Net weight, t	19,5
Gross weight, t	43,5
Production year	2003–2007
