Volvo BM A25B 6x6

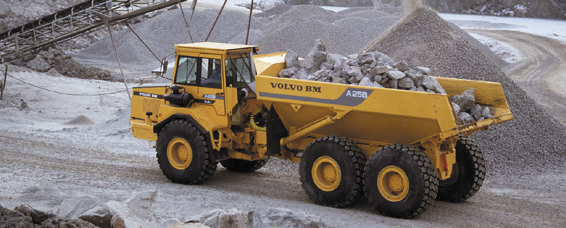

The Volvo BM A25B 6X6 delivered high production on tough and difficult ground. It had a payload capacity of 22.500 kg (25 sh.tons) and a top speed of 51 km/h (33.1 mph). The machine had articulated steering, 6-wheel drive and all-terrain bogie.
Production year 1991–1993
| A25B 6x6 | 1991 specifications |
| Engine | Volvo TD 71 K |
| Rated output at, r/s (r/min) | 40 (2 400) |
| ...SAE J1349 gross, kW (hp) | 180 (244) |
| ...SAE J1349 net, kW (hp) | 177 (240) |
| Max torque at, r/s (r/min) | 27 (1 600) |
| ...SAE J1349 gross, Nm | 815 |
| ...SAE J1349 net, Nm | 800 |
| Max speed, km/h | 51 |
| Load capacity SAE struck, m3 | 10,6 |
| Payload, t | 22,5 |
| Net weight, t | 17,4 |
| Gross weight, t | 39,9 |
| Production year | 1991–1993 |
Downloads
- VBM A25B 6x6 212 4004-9203.indd (PDF, 1.1MB)
- A25B 6x6, specifications, English (NA region) (PDF, 922.8KB)
- VBM A25B 6x6 121 4004-9104.id (PDF, 1.5MB)
- A25B 6x6, Daten, Deutsch (PDF, 723.6KB)
- VBMA25Bcoalhaul2114006-9102.id (PDF, 628.5KB)
- A25B 6x6 Coalhauler, specifications, English (PDF, 508KB)
- VBMA25B6x6Cont2124013-9210.indd (PDF, 467.2KB)
- VBM A TC 211 4014-xx.indd (PDF, 1.4MB)
- A20, A25B, A30, A35 brochure 1991, English (PDF, 1.3MB)
- A20, A25B, A30, A35 brochyr 1991, Svenska (PDF, 3.5MB)
- Lowest cost per ton, English (PDF, 2.9MB)
- Lowest cost per ton, Deutsch (PDF, 7.1MB)
