Wheeled Excavators Attachments
Buckets

The perfect match

Select from a range of original Volvo buckets made to work in harmony with your Volvo excavator. Buckets are available as direct fit or with Volvo quick coupler interfaces. The GPX, TGX and CAX buckets are specifically designed to work with the tiltrotator.

General purpose bucket GPX - Aggressive cut

General purpose bucket GPX - Aggressive cut

This bucket is intended for digging and moving loose material such as sand, clay, dirt and gravel. Features include Side and bottom wear protection and Volvo general purpose tooth system fitted as standard (GPE).

Available for: EW220E EW180E EWR170E EW160E

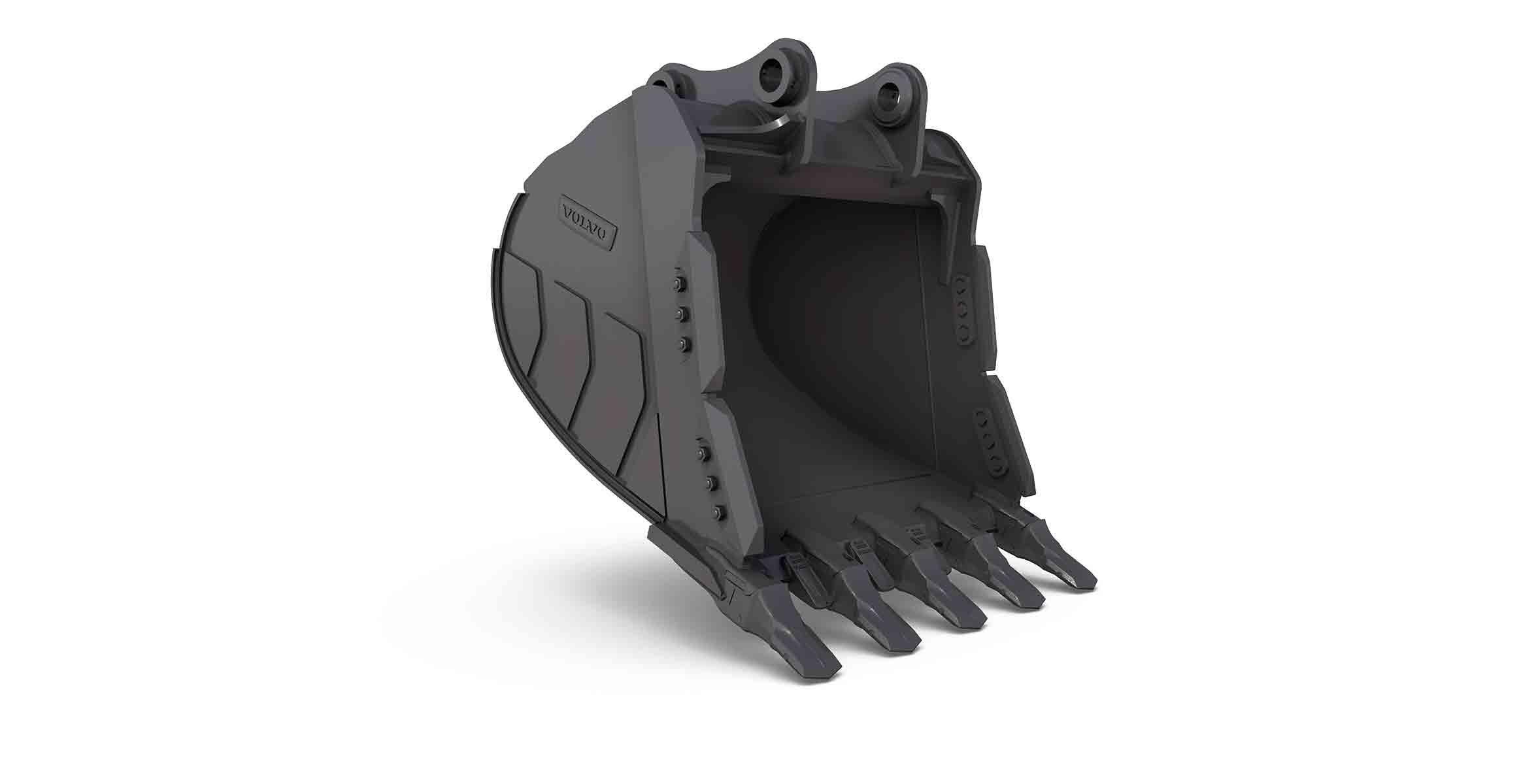

Heavy duty bucket - Universal cut

Heavy duty bucket - Universal cut

The Heavy Duty bucket achieves optimum results when digging dense and abrasive materials such as hard ground, gravel and rock. Equipped with extended side and bottom wear protection and high abrasion tooth system (ARXE). Optional side shrouds and segments are also available.

Available for: EW240 Electric MH EW220E EW205E EW180E EW160E EWR150 Electric EWR150E
Grading bucket TGX - Aggressive Cut

Grading bucket TGX - Aggressive Cut

The grading bucket has been optimized for use with a tiltrotator and is designed for accurate and precise landscaping, finishing and sloping jobs. Angled corners allow the bucket to work in close proximity to objects. Features include angled corners, extended cutting edge and Side and bottom wear protection.

Available for: EW220E EW180E EWR170E EW160E EWR130E
General purpose bucket - Universal cut

General purpose bucket - Universal cut

The  General Purpose  bucket is the ideal choice for digging and re-handling soft to medium materials such as dirt, loam,  sand and loose clay soils with low wear characteristics and limited rock content.​ Equipped with side and bottom wear protection and general purpose tooth system (GPE). Optional side cutters are also available.

Available for: EW220E EW205E EW180E EWR170E EW160E EWR130E
Cable bucket CAX - Aggressive Cut

Cable bucket CAX - Aggressive Cut

Designed for work in narrow trenches with a long profile that allows it to work close to pipes and cables. Features include extended cutting edge, narrow design and side and bottom wear protection.

Available for: EW240 Electric MH EW220E EW180E EWR170E EW160E EWR150 Electric EWR150E
Fixed Ditching bucket

Fixed Ditching bucket

Designed for ditch maintenance, landscaping and slope shaping, the Fixed Ditching bucket is optimized for filling, soft material digging and moving material around. Ideal for backfilling, ditch digging and handling material. Equipped with bolt-on edge.

Available for: EW240 Electric MH EW220E EW205E EW180E EWR170E EW160E EWR150 Electric EWR150E

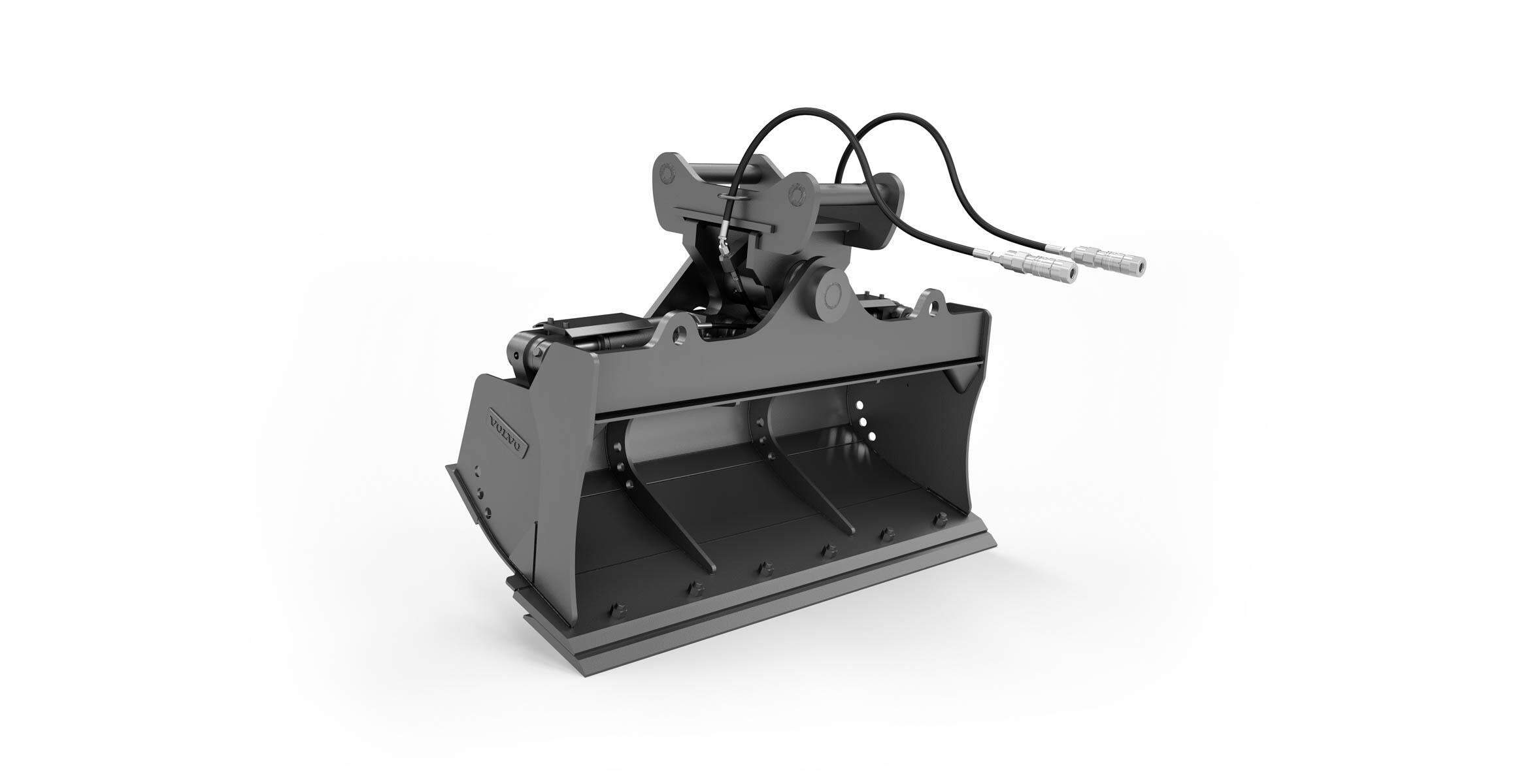

Tiltable Ditching bucket

Tiltable Ditching bucket

The Tiltable Ditching bucket is a flexible solution for ditch maintenance, landscaping and slope shaping. With a 45° degree tilt on both sides, the ditching bucket provides excellent precision – the perfect choice when a clean, smooth grade is required.

Available for: EW240 Electric MH EW220E EW180E EWR170E EW160E EWR150 Electric EWR150E EWR130E
General purpose bucket - Straight cut

General purpose bucket - Straight cut

V2 buckets for digging and re-handling of soft-to-medium materials, such as dirt, loam, sand, and loose clay soils with low-wear characteristics and limited rock content.

Available for: EW240 Electric MH EWR150 Electric EWR150E
Heavy duty bucket - Dual radius

Heavy duty bucket - Dual radius

For digging in compact materials like; loose rock, hard packed clay and gravel. Suitable for quarrying and mining

Available for: EW220E EW180E EW160E
Ditching bucket - Dual radius

Ditching bucket - Dual radius

Ditching bucket for general clean up operations such as channel cleaning, ditch maintenance and site clearance. It is also suitable for other light duties such as grading and slope work.

Available for: EW220E EW180E EW160E
