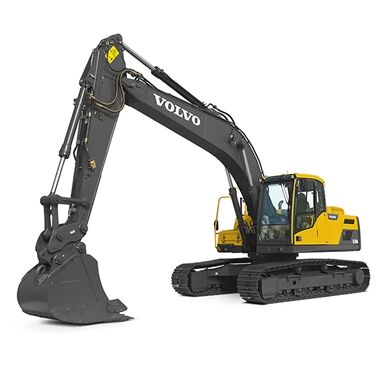

Medium Crawler Excavators EC220D

  • 20,900 - 24,400 kg Operating weight
  • 123 kW Gross power
  • 0.48 - 1.44 m³ Bucket capacity
The Volvo EC220D is built with sophisticated technology that delivers a 10% improvement in fuel efficiency compared to the previous model. Equipped with Volvo's unique ECO mode, a new hydraulic system and a premium Volvo D6 diesel engine, the EC220D reduces operational costs and maximizes fuel... Read more
Contact us

Premium performance

The Volvo EC220D is built with sophisticated technology that delivers a 10% improvement in fuel efficiency compared to the previous model. Equipped with Volvo's unique ECO mode, a new hydraulic system and a premium Volvo D6 diesel engine, the EC220D reduces operational costs and maximizes fuel efficiency.

Technical specifications for EC220D

Here are the key specifications for this product model. Want more details? Download the brochure or contact us.
Operating weight 20,900 - 24,400 kg
Gross power 123 kW
...at engine speed 1,800 rpm
Bucket capacity 0.48 - 1.44
Lifting capacity, along undercarriage 7,060 kg
...at reach / height 6 / 1.5 m
Max. digging reach 10,390 mm
Max. digging depth 7,330 mm
Breakout force, SAE J1179 (Normal) 130 kN
Breakout force, SAE J1179 (Boost) 137 kN
Tear out force, SAE J1179 (Normal) 93 kN
Tear out force, SAE J1179 (Boost) 98 kN
Overall width feet inches 2,700 mm
Tail swing radius 2,750 mm
Based on machine configuration: Boom 5.7m; Arm 3.5m; Shoe 600mm"; CWT 4 200kg
Image illustration only. Production machines may differ in appearance and features vary between markets and models.
More specifications and competitor comparison Download the EC220D brochure, with all the details and specifications. (PDF, 3.1MB)

Features & Benefits

Electro-hydraulic system New electro-hydraulic system and MCV use intelligent technology to control on-demand flow for improved performance and efficiency.

Premium performance

Featuring a new electro-hydraulic system, the EC220D provides you with the power, controllability and versatility you need, when you need it. Whether you're working in the road construction, quarry, trenching or any other application, this machine will surpass your expectations.

ECO mode Volvo's unique ECO mode contributes to up to 5% of the machine's total improved fuel efficiency without any loss of performance.

New levels of fuel efficiency

Volvo proudly introduces the EC220D and the next generation of fuel efficiency. Thanks to sophisticated technology this excavator boasts a 10% improvement in fuel efficiency compared to the previous model. With Volvo's unique ECO mode, a new hydraulic system and a premium Volvo D6 diesel engine, you'll soon start to reap the benefits of reduced operational costs. Maximize your fuel efficiency with Volvo.

Cab design All-around visibility, safety, comfort and easy to access controls are at the center of Volvo's operator environment.

Designed for productivity

The new, modern D-series styling of the EC220D cab puts the operator in control facilitating optimal conditions for productivity. With superior visibility, easy to access controls and built in comfort, it's no wonder operators experience less fatigue and feel more productive in this spacious and safe working environment. See more and do more with Volvo.

Service access Large doors and engine hood provide easy service access. Centralized filters and greasing points allow regular checks to be done faster.

User-friendly service access

Access greater uptime and spend longer working on the jobsite with the EC220D. With safe and easy access to centralized filters and grouped greasing points, you'll spend less time maintaining your machine and more time earning money with Volvo.

Customer solutions Volvo provides the right solutions throughout the entire life cycle of your machine to lower total cost of ownership.

adding value to your business

Being a Volvo customer means having a complete set of services at your fingertips. Volvo can offer you a long-term partnership, protect your revenue and provide a full range of customer solutions using high quality parts, delivered by passionate people. Volvo is committed to the positive return of your investment.

Keep your Volvo a Volvo!

Only with Volvo attachments do you get what you wanted when you bought a Volvo in the first place – maximum productivity and uptime. Volvo develops and offers a wide range of attachments which brings you unmatched flexibility and versatility, making it easy for you to develop job opportunities and to get the job done with increased productivity. Displayed attachments may not be available in all markets. Consult your dealer for specific availability.
