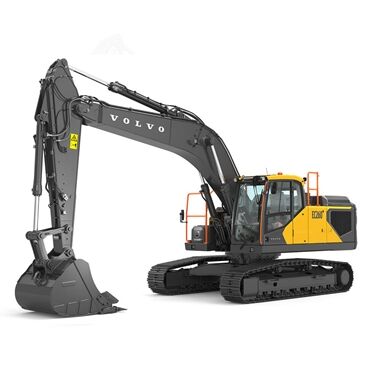

EC260 | Excavators | Overview | Volvo Construction Equipment

Operating weight	24,690 - 28,410 kg
Gross power	160 kW
...at engine speed	1,720 rpm
Bucket capacity	1.69 - 1.76 m³
Lifting capacity, along undercarriage	10,090 kg
...at reach / height	6.0 / 1.5 m
Max. digging reach	10,340 mm
Max. digging depth	7,060 mm
Breakout force, SAE J1179 (Normal)	166 kN
Breakout force, SAE J1179 (Boost)	181 kN
Tear out force, SAE J1179 (Normal)	118 kN
Tear out force, SAE J1179 (Boost)	128 kN
Overall width	3,190 mm
Tail swing radius	3,080 mm

Features & Benefits

Move more, dig more and load more.

Built for Productivity

No matter the application, EC260 will excel across all segments thanks to the proven Volvo D8 engine, and a robust machine design. Get to know this true heavy-duty excavator, a long-lasting partner for your business.

Outstanding performance

The optimized work modes and ECO mode on the new generation of Volvo excavators will help the operator to adapt to the job conditions, while keeping high performance at lower rpm, and further driving fuel consumption down. A host of additional optional features, including Dig Assist and many more, also help to make your working day more efficient.

Fast and smooth

The optimized hydraulics will help you do more by reducing cycle times, thanks to faster response to the oprators'movements. The enhanced main control valve (MCV) and optimized hydraulic pump make digging, loading faster and smoother than ever before.

Reliable and durable

The new generation of Volvo excavators is durable by design: robust undercarriage, proven engine technology as well as the best ROPS cab in the indutry make your Volvo a reliable partner, for long and no matter the application. A host of services and solutions will further help you to get the most of your machine, day after day, year after year.

What makes our excavator so special when it comes to fuel efficiency? Read here to find out.

Your fuel efficiency edge

In the Volvo excavators the new hydraulic system reduces your fuel consumption dramatically. It is done by regulating engine speed and hydraulic flow rate based on the task at hand. This ensures that only the necessary amount of energy is used, leading to improved fuel efficiency and lower operating costs

New optimized hydraulic system

At the heart of the fuel efficiency improvements is the hydraulic system with enhanced main control valve (MCV). The result is smooth and precise movement of the excavator's boom, bucket, and other hydraulic components, allowing for more accurate digging and loading. Fuel consumption is dramatically reduced by regulating engine speed and hydraulic flow rate based on the task at hand. This ensures that only the necessary amount of energy is used, leading to improved fuel efficiency and lower operating costs.

Outstanding cooling performance

By reducing engine load and preventing overheating, the system ensures optimum excavator performance, extends component life and lowers operating costs.

Engine Pump optimization

Engine speed is reduced thanks to engine-pump optimization, lowering fuel consumption while maintaining excellent machine performance. The system controls the hydraulic pump flow rate and pressure based on the load and speed requirements. The result is improved fuel efficiency, reduced maintenance costs and lower operating costs.

Nothing is better for reducing downtime than no downtime at all. Volvo excavators boast some of the longest service intervals in the industry, with 1000-hour engine oil and fuel filter changes to mention a few. More synchronized service intervals (all 1000-hour multiples) further increase uptime and reduce costs.

Even better serviceability

Grouped filters

Grouped filters can be accessed with easy access via the machine platform, not to mention the ground level DEF/UREA filling on the EC210. HVAC filters can also be replaced from inside the cab for a much easier and straightforward process.

Easier inspections

The swing out condenser makes the radiator and oil cooler easier to inspect, as well as easier refill of the air-con system when needed. For simple and environmentally friendly fluid draining, engine oil and hydraulic oil can be drained from the quick drain port using a common hose connection. Optional fast filling systems are available for hydraulic oil and engine oil (market dependent).

Shut-off valve

A convenient shut-off valve when changing fuel filters prevents oil leakage, helping to keep technicians and the environment cleaner. An optional ground-level quick oil change access port further supports cleaner and safer oil changes.

Fluid Analysis

Fluid Analysis can be an important contributor to monitoring the health and performance of your machines and this optional feature provides an environmentally safe method to collect small oil samples via a vacuum pump.

We have always made sure the operator is as comfortable as possible. But with this excavator, we are introducing more features than ever

At the edge of your seat

The cab’s ambition is to be comfortable and make your work easier. A handy storage space allows you to store your coolbox or shoes while you work. You will enjoy reduced noise levels, built-in sunscreen and improved HVAC. Thanks to great sealing you will experience less dust and ambient temperature, which means good air circulation and higher level air vents . Altogether it should make operators feel less fatigued after a productive day’s work.

Modern style HMI

The cab may have lots of modern technology but it is there to make your life easier. The modern HMI allows you to easily access the menu and simply change the settings with a few clicks , to suit your preferences.

ROPS cab

A ROPS cab comes as standard for your comfort and safety. The tiltable left console gives you more space to enter the cab and offers more operator comfort. Large mirrors with electric heating as option help you operate safely even in wintery conditions. The one-piece high visibility windshield is optional as well as a three-point seatbelt .

Smooth operator

You will find that the joystick controls offer smoother, easier operation. Because the controls are more precise it is easier for you to achieve what you are trying to do, leading to better machine performance . The right-hand switch layout lends itself to a more ergonomic experience. If there is more than one person operating the machine, you can set the controls up however fits you the best, and they will follow the autonomy of the operator .
