Technical specifications for EC55D

Here are the key specifications for this product model. Want more details? Download the brochure or contact us.

Engine	Volvo D2.6A
Gross power	36.5 kW
Net power	34.5 kW
...at engine speed	2,000 rpm
Operating weight	5,400 - 5,630 kg
Bucket capacity	0.2 m³
Travel speed, low / high	2.6 / 4.3 km/h
Slewing speed	9 rpm
Breakout force	0 kN
Tear out force (arm breakout force)	26 kN
Overall width	1,920 mm
Overall length	5,885 mm
Main hydraulic pump max. flow	142.4 l/min

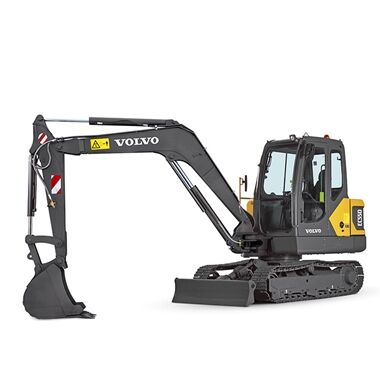

Image illustration only. Production machines may differ in appearance and features vary between markets and models.

More specifications and competitor comparison

Download the EC55D brochure, with all the details and specifications. (PDF, 860.6KB)

Features & Benefits

Do more in less time with market-leading power and outstanding combined digging power and speed of the EC55D Offset Boom.

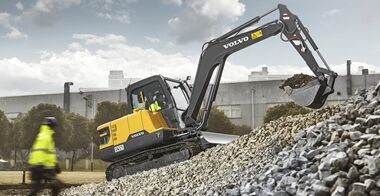

Power to perform

Do more in less time with market-leading power, outstanding combined digging efforts and faster digging equipment speed of the EC55D Offset Boom. Tackle challenging job sites with ease thanks to the superior traction, swing force and lifting capacity. For the ultimate combination of power and productivity, improved cooling ensures optimized performance for any climate.

Smooth control

Achieve a smooth and comfortable operating experience with the EC55D Offset Boom. You can dig, swing, load and lift with increased controllability, for enhanced productivity and reduced fatigue. The machine does exactly what the operator intends with responsive controls and an optimized hydraulic system to achieve precise grading results for a high quality finish.

Customer Support Agreements

Customer Support Agreements offer service and maintenance with controlled costs and maximum uptime. The flexible system caters for a range of needs from total repair and maintenance to an inspection program covering vital parts and functions.

Do more in less time with market-leading power and outstanding combined digging power and speed of the EC55D.

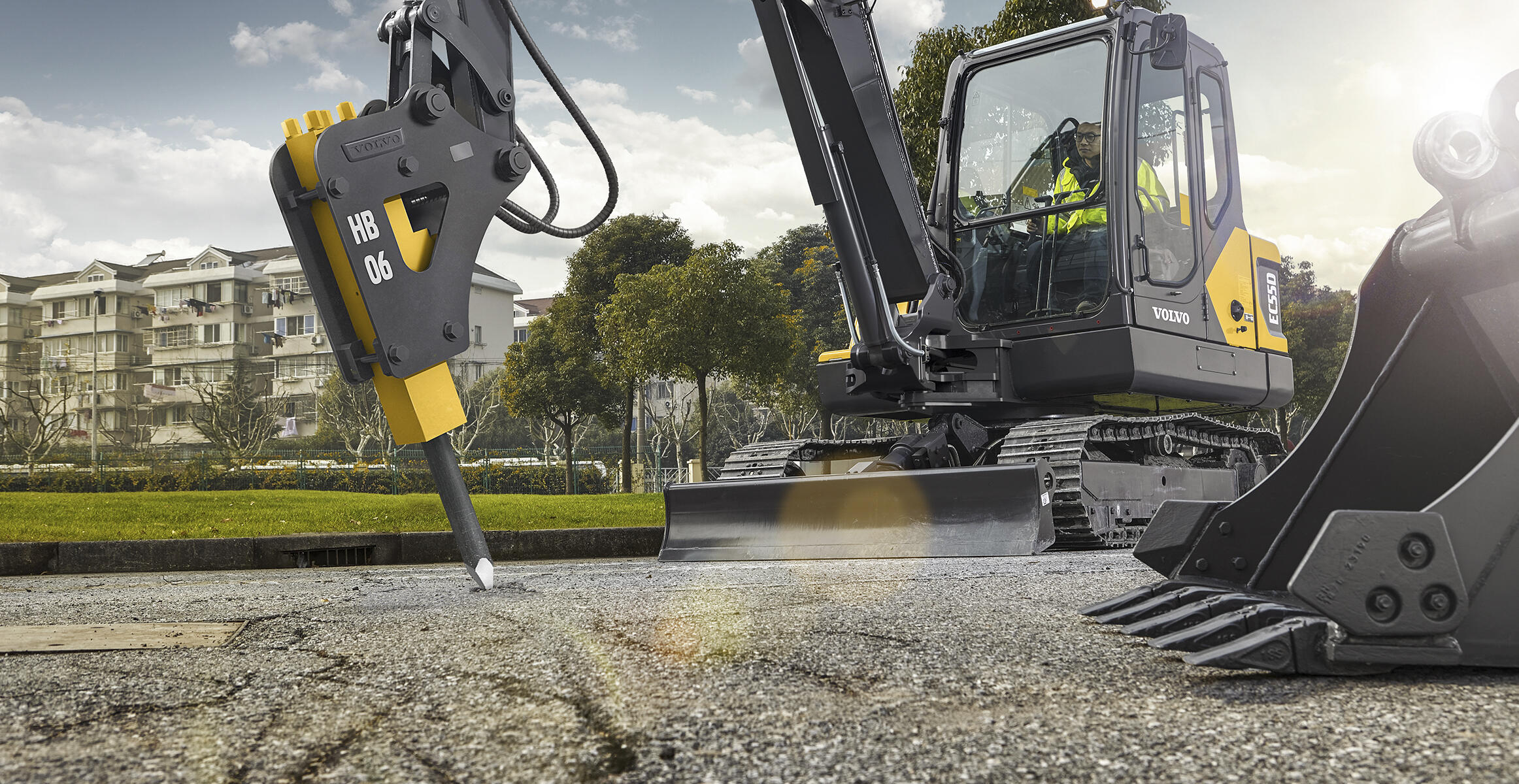

Robust attachments to match

Well-engineered and built to last in tough conditions, Volvo’s robust, high quality buckets and hydraulic breakers offer high durability and performance. Specifically made for your Volvo machine, the buckets are reinforced with Volvo teeth and wear parts for longer life, and the range of breaker tools has been developed to break any kind of material with excellent performance.

Customer Support Agreements

Customer support centre

Volvo customers have direct access to the unique dealer support network. Customers can telephone a support number 24 hours a day, seven days a week, which identifies the call and transfers it to the local dealer where a dedicated team will take care of your needs – maximizing machine uptime.

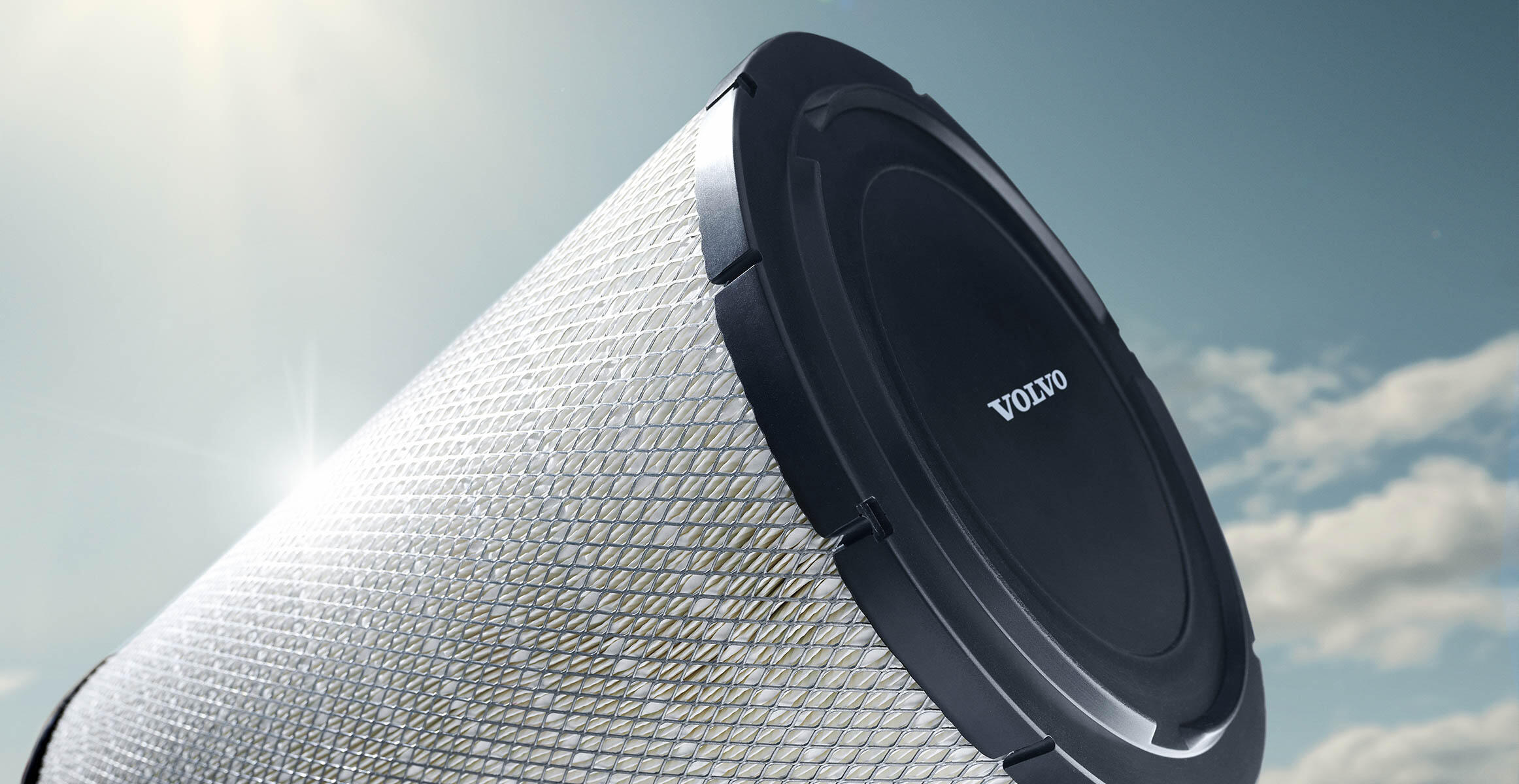

Genuine Volvo Parts

Volvo Service Technicians work with industry-leading diagnostic tools and techniques, using only Genuine Volvo Parts to deliver the highest levels of quality and service. Talk to your local Volvo dealer about how genuine Volvo services can provide the service and maintenance plan that best fits your needs.

Keep your Volvo a Volvo!

Only with Volvo attachments do you get what you wanted when you bought a Volvo in the first place – maximum productivity and uptime. Volvo develops and offers a wide range of attachments which brings you unmatched flexibility and versatility, making it easy for you to develop job opportunities and to get the job done with increased productivity. Displayed attachments may not be available in all markets. Consult your dealer for specific availability.
