Medium Crawler Excavators EC140D

12,820 - 16,730 kg Operating weight
77.4 kW Gross power
0.25 - 0.75 m³ Bucket capacity

Take command in the durably designed EC140D, featuring the latest fuel-efficient Volvo engine and enhanced hydraulics to deliver exceptionally high efficiency, rapid cycles and low fuel consumption. Thanks to ultimate machine availability, easy serviceability and performance-enhancing features, the... Read more

Download the EC140D brochure, with all the details and specifications. (PDF, 1.8MB)

More specifications and competitor comparison

Combining high fuel efficiency, uptime and productivity to become the ultimate earning machine

Technical specifications for EC140D

Here are the key specifications for this product model. Want more details? Download the brochure or contact us.

Operating weight	12,820 - 16,730 kg
Gross power	77.4 kW
...at engine speed	2,200 rpm
Bucket capacity	0.25 - 0.75 m³
Lifting capacity, along undercarriage	3,300 kg
...at reach / height	6 / 1.5 m
Max. digging reach	8,330 mm
Max. digging depth	5,530 mm
Breakout force, SAE J1179 (Normal)	82.2 kN
Breakout force, SAE J1179 (Boost)	87.2 kN
Tear out force, SAE J1179 (Normal)	61.8 kN
Tear out force, SAE J1179 (Boost)	65.5 kN
Overall width feet inches	2,590 mm
Tail swing radius	2,200 mm

Based on machine configuration: 4.6m (15'1") Boom, 2.5m (8'2") arm

Image illustration only. Production machines may differ in appearance and features vary between markets and models.

More specifications and competitor comparison

Download the EC140D brochure, with all the details and specifications. (PDF, 1.8MB)

Features & Benefits

Access more applications and efficiently perform a variety of tasks with Volvo’s extensive attachment range.

One machine for many jobs

Volvo offers a wide range of attachment combinations that are suitable for any job site. Volvo attachments are an integrated part of the excavator for which they are intended –delivering maximum productivity and versatility.

Quality Volvo buckets

Volvo’s General Purpose bucket is ideal for digging in low impact materials such as soft ground and comes with a standard GP tooth and lifting hook. The Volvo Heavy-Duty bucket is heavier and more robust with a rigid top structure and double wear shrouds on each side of the bucket. It is thicker for aggressive digging and bucket loading, and the RC tooth comes as standard.

Breakers

Volvo’s durable hydraulic breaker has been designed for ultimate compatibility with Volvo excavators and is built to break even the most demanding materials. With consistent power and high breaking force you’ll benefit from maximum impact and durability. Set your Volvo breaker at the right frequency to suit your application needs.

Attachment Management System

The password protected attachment management system allows storage for up to 20 different attachments. The system allows the operator to pre-set hydraulic flow inside the cab through the monitor, which ensures the use of various attachments for increased versatility.

Optional auxiliary piping

The Volvo-designed hydraulic breaker/shear piping and quick coupler piping option provides optimum flow to the hydraulic attachments. State-of-the-art auxiliary lines allow the correct flow and pressure for special attachments.

Control your service costs with Volvo’s range of Customer Support Agreements, offering a number of services to increase uptime.

Adding value to your business

Being a Volvo customer means having a complete set of services at your fingertips. Volvo can offer you a long-term partnership, protect your revenue and provide a full range of customer solutions using high quality parts, delivered by passionate people. Volvo is committed to a positive return on your investment.

Complete solutions

Volvo has the right solution for you. So why not let us provide all your needs throughout the whole life cycle of your machine? By listening to your requirements, we can reduce your total cost of ownership and increase your revenue.

Genuine Volvo Parts

Our attention to detail is what makes us stand out. This proven concept acts as a solid investment in your machine’s future. Parts are extensively tested and approved because every part is vital for uptime and performance. Only by using Genuine Volvo Parts, can you be sure that your machine retains the renowned Volvo quality.

Service network

In order to respond to your needs faster, a Volvo expert is on their way to your job site from one of our Volvo facilities. With our extensive infrastructure of technicians, workshops and dealers, Volvo has a comprehensive network to fully support you using local knowledge and global experience.

CareTrack

CareTrack is the state-of-the-art Volvo telematics system that provides access to a wide range of machine monitoring information designed to save time and money. Proactively manage service and maintenance schedules, optimize machine and operator performance and reduce fuel costs with CareTrack.

Reduce fuel consumption, increase profitability and deliver higher productivity.

Do more and increase profit

Make more profit with the EC140D. This machine’s reliability and durability increases your uptime allowing you to keep working and earning. With outstanding fuel efficiency and power for excellent productivity, it allows you to work faster and get more done.

ECO mode

Work efficiently and profitably with Volvo’s intelligent ECO mode. This feature contributes to the machine’s total improved fuel efficiency – without any loss of performance. The design optimizes flow and pressure while maintaining digging power and swing torque. Choose the right work setting for the job at hand.

Durability

Deliver a strong performance shift after shift, day after day. Built with durable components, the robust superstructure, undercarriage and boom and arm, will help you to achieve the best results in all applications.

Reliability

Quality, long lasting components and the machine’s design increases uptime as well as profits. The EC140D has a robust structure and parts ensure it’s reliable on your job site so you can depend on your machine to perform and work hard.

Serviceability

The EC140D is built to ensure servicing is safe, quick and easy, featuring anti-slip plates, ground-level service access and centralized filters and greasing points. Long service intervals enhance machine availability and increase uptime for maximum productivity.

This excavator delivers a strong, versatile performance in a wide range of applications.

Outperform your competition

The EC140D has outstanding power and controllability for a star performance. Superior digging power and machine stability results in faster cycle times and increased productivity.

Powerful Volvo engine

The engine boasts the best power and performance in its class, and its effective cooling capacity increases its longevity and performance.

Operator performance

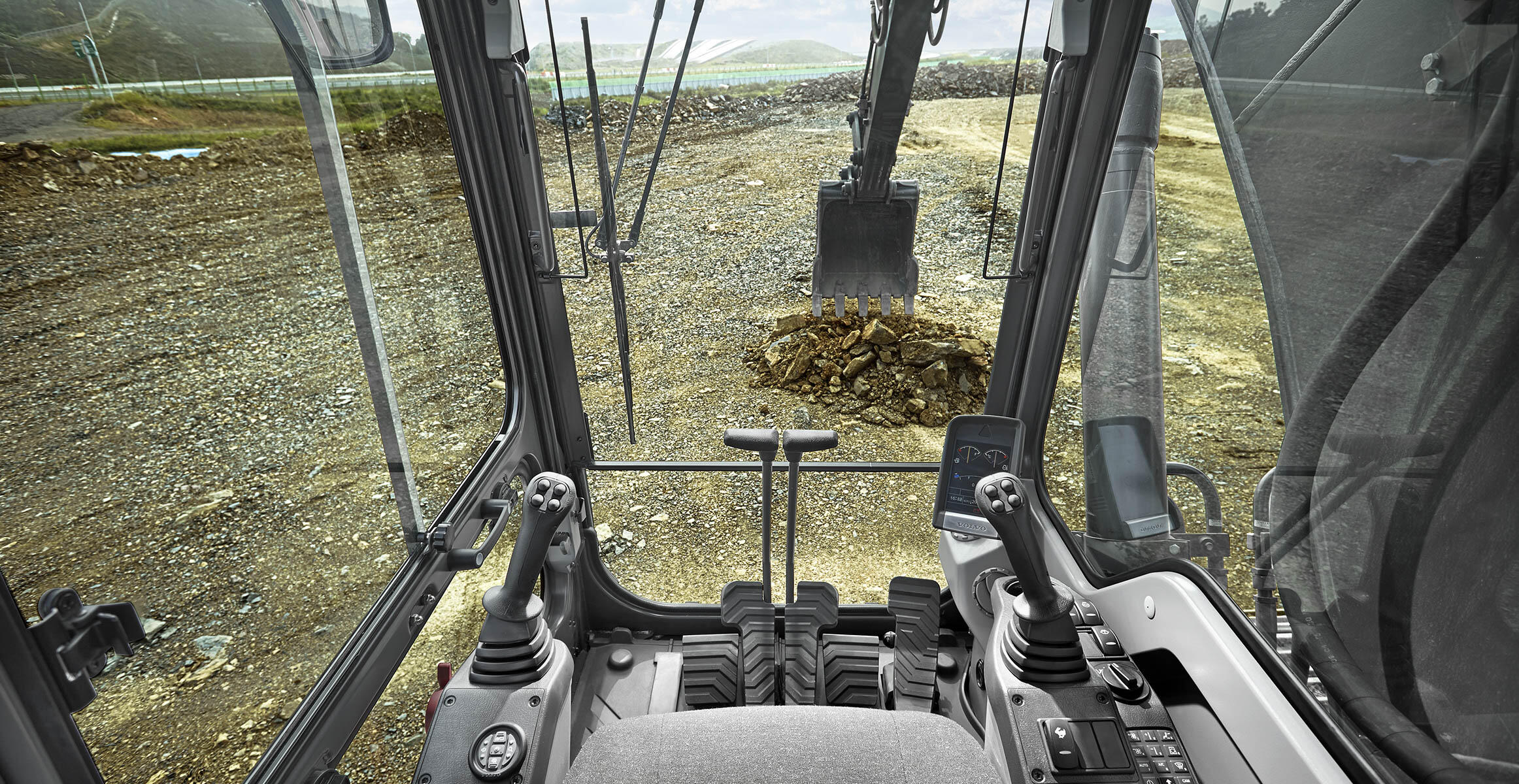

Operate in a comfortable cab for a more productive working day. The EC140D has a premium cab is equipped with an easy-to-view monitor, spacious and safe operator environment, offering enhanced all-around visibility, an adjustable seat and ergonomic controls.

Efficient new work mode

For fast cycle times and optimum fuel consumption, the EC140D is equipped with intelligent work modes, including the new G4 work mode. Operators can choose the best mode to suit the task at hand, selecting from I (Idle), F (Fine), G (General), H (Heavy) and P (Power max) mode. Choose the correct mode according to your working conditions for added versatility and increased performance.

Machine stability

Improve your stability and work in more challenging environments with the machine’s long, wide undercarriage and heavy counterweight for a well-balanced and solid machine when operating in all terrains.

Keep your Volvo a Volvo!

Only with Volvo attachments do you get what you wanted when you bought a Volvo in the first place – maximum productivity and uptime. Volvo develops and offers a wide range of attachments which brings you unmatched flexibility and versatility, making it easy for you to develop job opportunities and to get the job done with increased productivity. Displayed attachments may not be available in all markets. Consult your dealer for specific availability.
